The VGA to DVI Converter/Extender converts analog VGA into a digital DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand (simplex) multimode SC fiber optic cable.

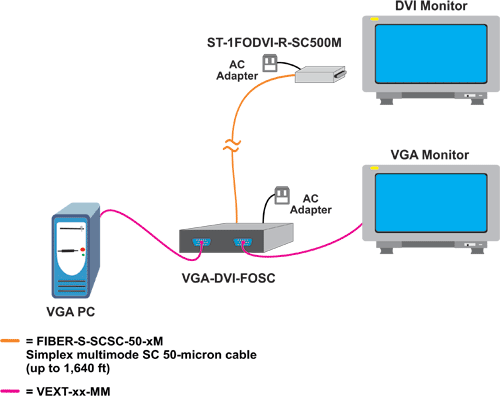

The Converter/Extender system has two components: the VGA converter/transmitter, which connects to the VGA source and also supplies video to a local VGA display, and an ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.
Product Features and Benefits
- Convert a video source with analog VGA signal to a digital DVI signal.
- Use with an optical receiver (ST-1FODVI-R-SC500M) to extend a remote DVI monitor 1,640 ft (500m).
- Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
- Supports resolutions to 1920x1200 (WUXGA).
|Video Input||One female 15-pin HD connector for VGA input.|
|Video Output||One female 15-pin HD connector for VGA output.|
One female SC fiber connector for optical DVI output.
Supports resolutions to 1920x1200.
|Power||100 to 240 VAC at 50 or 60 Hz via AC adapter.|
|Operating Temperature||32 to 122°F (0 to 50°C)|
|Storage Temperature||-22 to 158°F (-30 to 70°C)|
|Relative Humidity||0 to 85% non-condensing RH|
|Dimensions||WxDxH in: 4.09x4.41x1.10 (104x112x28 mm)|
|Weight||1.8 lb (0.82)|
|Approvals||CE, FCC, RoHS|
