Component Video to DVI Converter/Extender via Fiber Cable to 1,640 ft

CMP-DVI-FOSC

$915.00$841.38
Save $73.62
FREE Shipping on orders over $100

The Component Video to DVI Converter/Extender converts component video into a DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand multimode SC fiber optic cable.

The Converter/Extender system has two components: the component video converter/transmitter, which connects to the component video source and also supplies video to a local component video display, and a ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.

Product Features and Benefits

  • Convert a video source with component video signal to an digital DVI signal.
  • Use with an optical receiver (ST-1FODVI-R-SC500M) to extend a remote DVI monitor 1,640 ft (500m).
    • Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
  • Supports resolutions to 1080p (1920x1080).

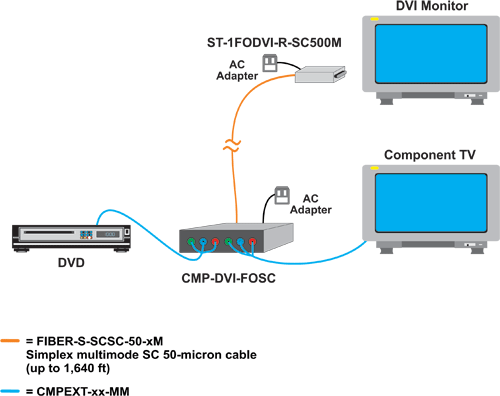

Product Diagram

Video InputThree female RCA connectors for component video input.
Video OutputThree female RCA connectors for component video output.
One female SC fiber connector for optical DVI output.
Supports resolutions to 1080p (1920x1080).
Power100 to 240 VAC at 50 or 60 Hz via AC adapter.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-22 to 158°F (-30 to 70°C)
Relative Humidity0 to 85% non-condensing RH
DimensionsWxDxH in: 4.09x4.41x1.10 (104x112x28 mm)
Weight1.8 lb (0.82 kg)
ApprovalsCE, FCC, RoHS
WarrantyTwo Years
