S-Video/Composite Video to DVI Converter/Extender via Fiber Cable to 1,640 ft

SVCV-DVI-FOSC

$925.00$850.57
Save $74.43
FREE Shipping on orders over $100

The S-Video/Composite Video to DVI Converter/Extender converts S-video or Composite video into a DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand multimode SC fiber optic cable.

The Converter/Extender system has two components: the S-Video/Composite video converter/transmitter, which connects to the S-video/Composite video source and also supplies video to a local S-video/Composite video monitor, and an ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.

Product Features and Benefits

  • Convert a video source with S-video or Composite video signal to an optical DVI signal.
  • Use with an optical receiver (ST-1FODVI-R-SC500M) to extend a remote DVI monitor 1,640 ft (500m).
    • Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
  • Supports resolutions to 1280x1024.

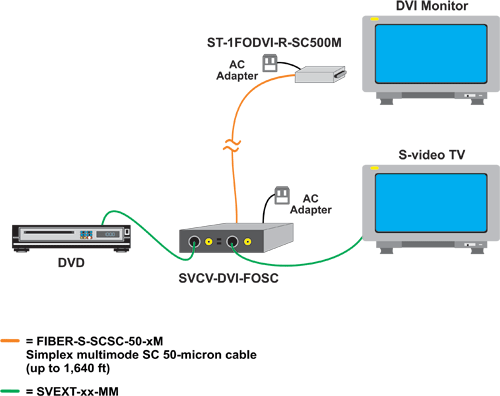

Product Diagram

Video InputOne female 4-pin miniDIN connector for S-video input.
One female RCA connector for composite video input.
Video OutputOne female 4-pin miniDIN connector for S-video output.
One female RCA connector for composite video output.
One female SC fiber connector for optical DVI output.
Supports resolutions to 1280x1024.
Power100 to 240 VAC at 50 or 60 Hz via AC adapter.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-22 to 158°F (-30 to 70°C)
Relative Humidity0 to 85% non-condensing RH
DimensionsWxDxH in: 4.09x4.41x1.10 (104x112x28 mm)
Weight1.8 lb (0.82 kg)
ApprovalsCE, FCC, RoHS
WarrantyTwo Years
