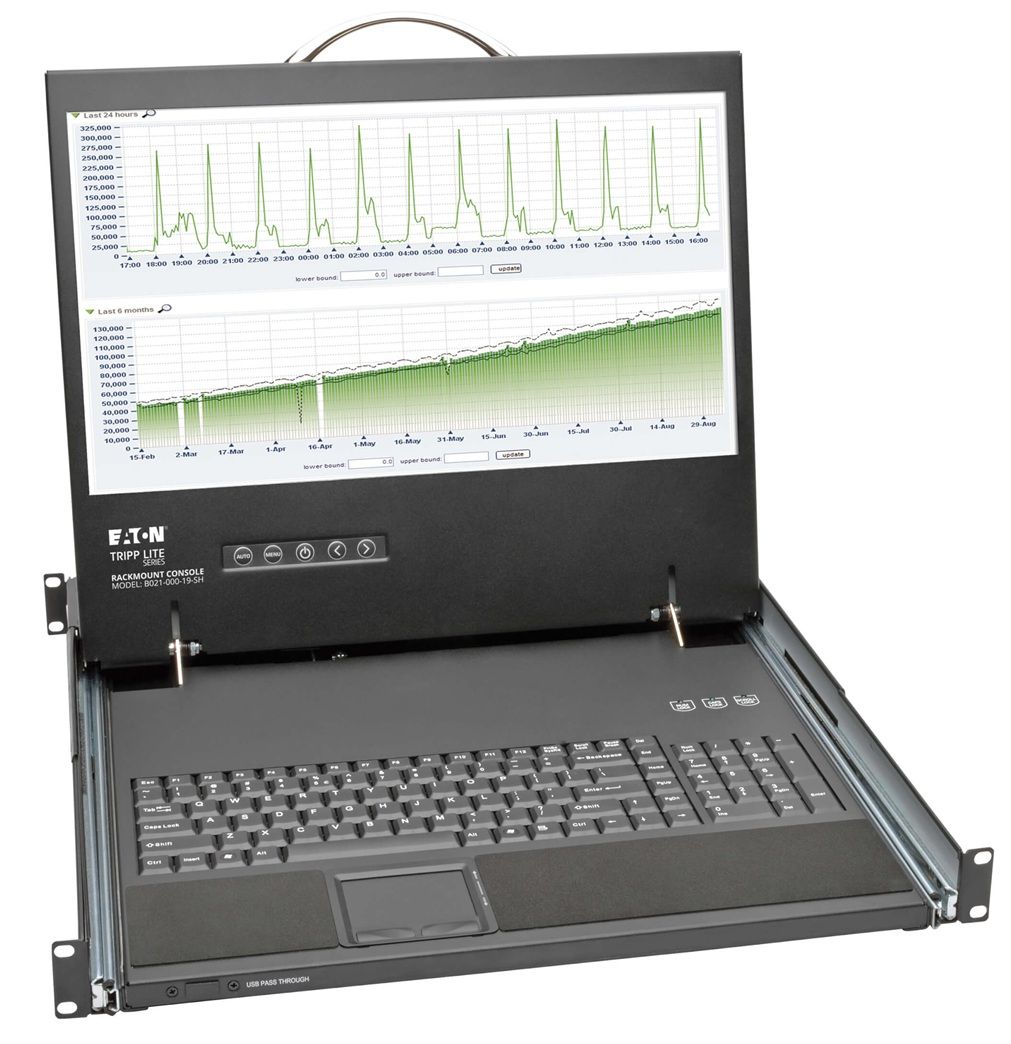

1U Rack-Mount Console with 19-in. LCD, Short-Depth; TAA Compliant
B021-000-19-SH
Save $700.18
The B021-000-19-SH 1U rack-mount console is the ideal solution for specialized vehicle projects, including rescue services and military-specific applications. It can be mounted in as little as a 19-inch-deep rack and features an integrated 19-inch LCD display (max native resolution of 1366 x 768), full 104-key keyboard and touchpad, all in a 1U rack-mountable housing. It also features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc. Your peripheral device connects to the USB-A port on the front of the unit, and your computer connects to the USB-A port on the back of the unit using a UR020-Series M/M cable. This console is designed for use with a server or a KVM switch with PS/2 or USB console connectors. Constructed of heavy-duty steel housing.
Tripp Lite B021-000-19-SH Features & Benefits:
- Mounts in 19" to 30" deep cabinets

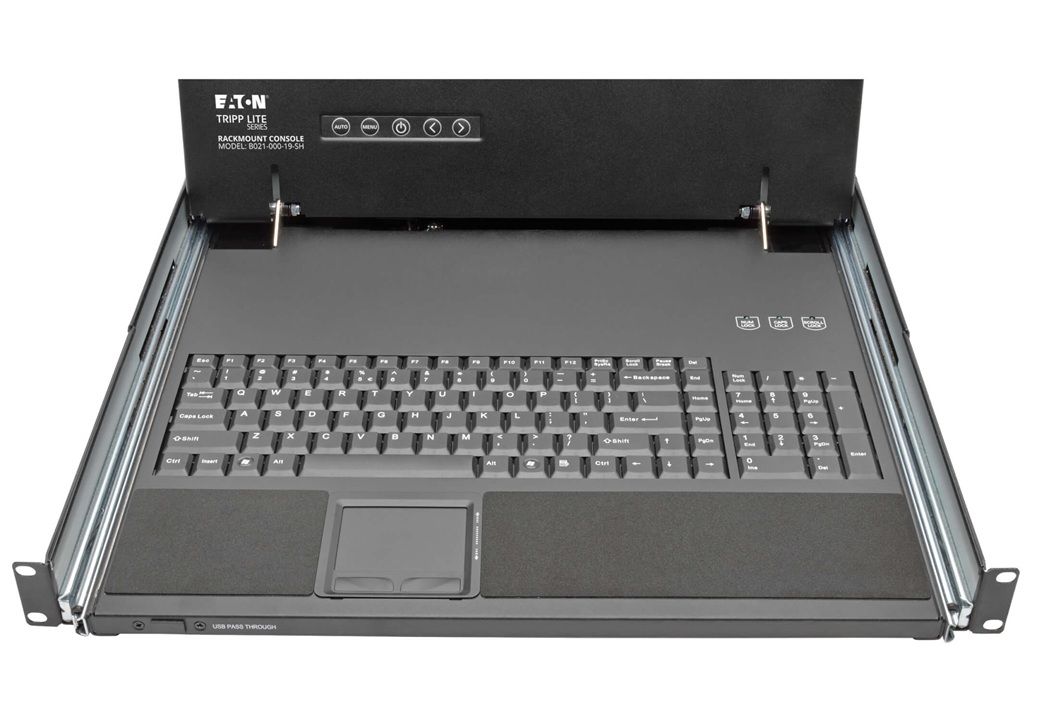

- Full 19" LCD display screen, 104-key keyboard, touchpad
- Max native resolution of 1366 x 768
- Auto Sensing External AC Adapter, 6-ft. (Input: 100-240V, 50/60Hz, 1.5A)

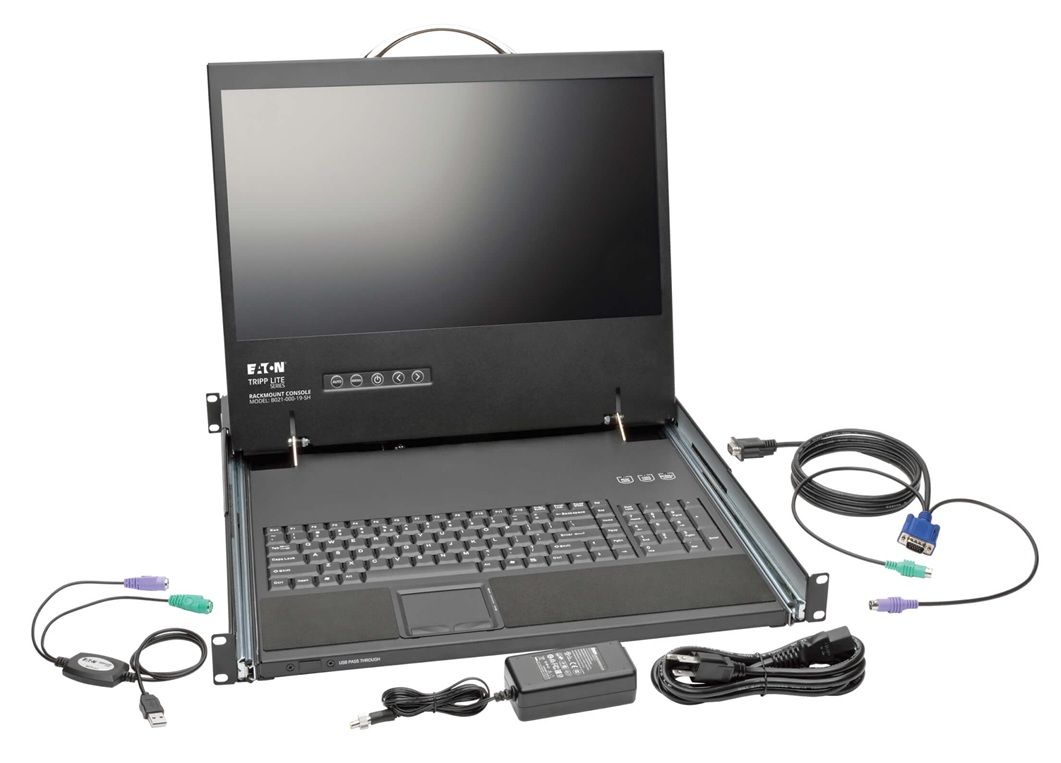

- Includes 6-ft. PS/2 cable kit for use with PS/2 KVMs or Servers
- PS/2 to USB adapter included for use with USB KVMs or servers
- Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.
- Single rail, ball bearing slides
- Constructed of heavy-duty steel housing
- Complies with the Federal Trade Agreement Act (TAA) for GSA Schedule purchases
Tripp Lite B021-000-19-SH Specifications:
Overview | |
PC/Server | PS/2 USB; VGA/SVGA |
Video | |
Max Supported Video Resolution | 1366 x 768 @ 60Hz |
Console Screen Size (inches) | 19 |
Connections | |
PC/Server Connections | PS/2; USB; VGA |
Rear - Connector 1 | HD15 (FEMALE) |
Rear - Connector 2 | USB A (FEMALE) |
Front - Connector 1 | USB A (FEMALE) |
Computer Keyboard and Mouse Interface | PS/2; USB |
Computer Monitor Interface | VGA |
Power | |
Power Source Type | AC Adapter with detachable power cord |
AC Adapter/DC Barrel Plug: | Input: 100-240V, 50/60Hz, 1.5A OD: 5.5 x 2.5 x 16.5mm, Positive Pin, Negative Sleeve |
Electrical Consumption | (Line Mode) 30W (Standby Mode) 5W |
Physical | |
Style | 1U Rack Console (non-KVM) |
Environmental | |
BTUs | (Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/Hr |
Standards and Compliance | |
Product Certifications | EN 60950-1 |
Product Compliance | RoHS; CE (Europe); REACH; FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
Warranty | |
Product Warranty (Worldwide) | 1-year limited warranty |

UPC 037332143853
EAN 0037332143853
