Adder LED Light Module for CCS-PRO4 Free-Flow Switch

CCS-XB

$250.00$225.00
Save $25.00
Ships with: 4 LED Indicators
FREE Shipping on orders over $100

The Adder CCS-XB is a LED Light Module designed to indicate the active screen focus when used alongside Free-Flow. Each CCS-XB ships with 4 LED indicators. Additional indicators can be ordered (to a maximum of 10 per unit) using order code: CCS-LED.

The CCS-XB illumination module connects to the CCS-PRO4, CCS-PRO8, or CCS4-USB. It gives the users the option to have an LED indicator positioned on each screen to identify which screen you are currently controlling. The color and intensity can be controlled for each screen. A maximum of 10 illumination indicators can be supported. This module controls a set of LED lights which mount onto your screens. The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application. These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility. Each LED module is pre-wired with 10 feet (3 meters) of cable allowing the user to route the module discreetly to the screen. The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.

Each LED is housed in a sturdy molded enclosure and is provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required. The CCS-XB is interface powered making installation very simple.

Adder CCS-XB Front View

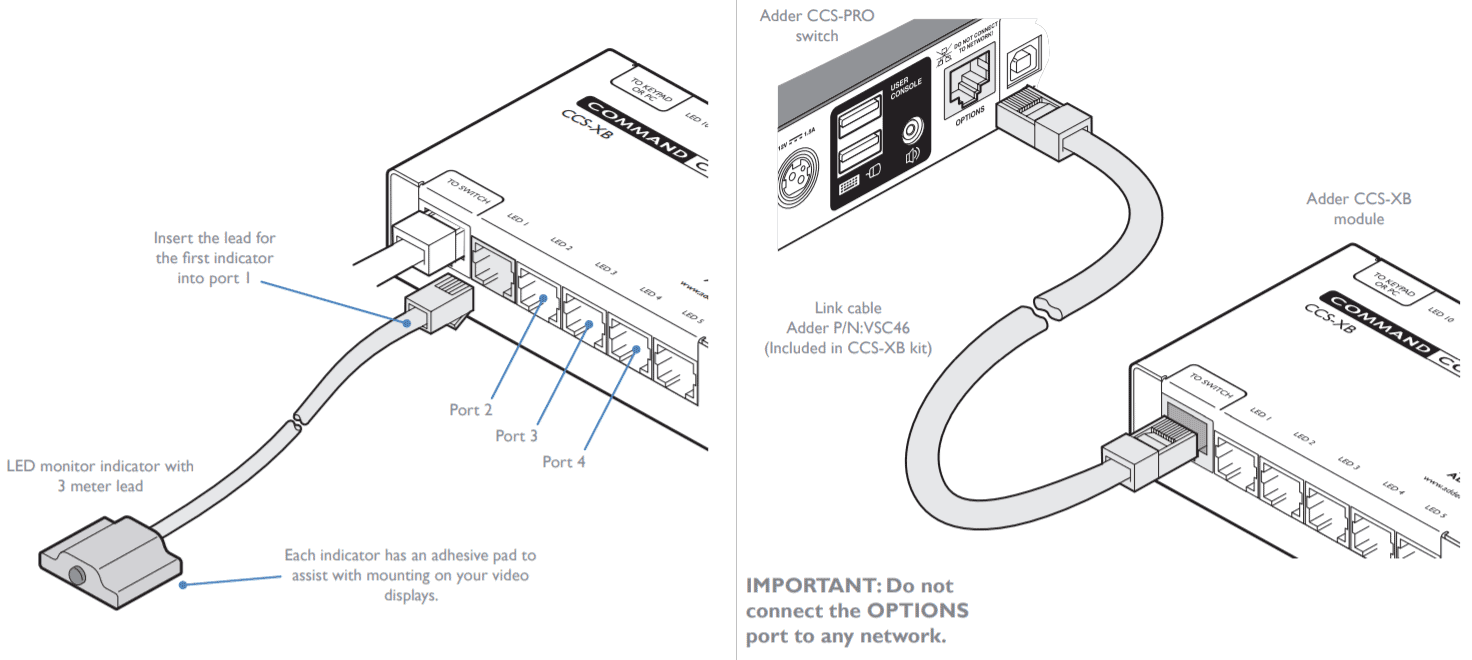

See Detailed Layout

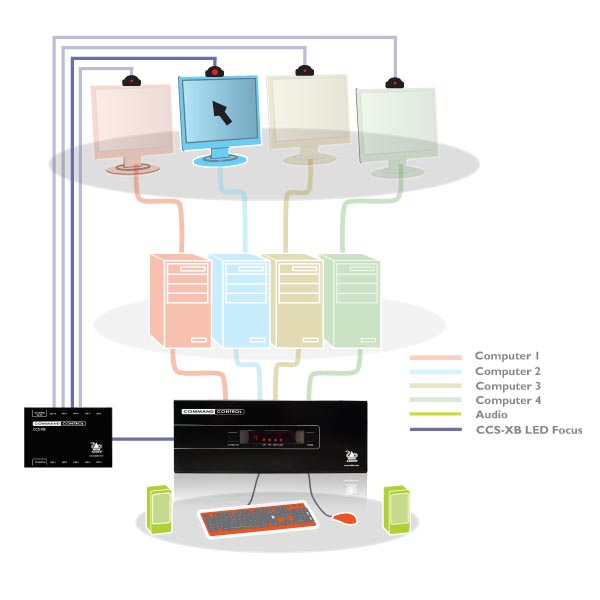

CCS-XB usage diagram


CCS-XB Package Contents

Adder CCS-XB Package Contents

  • (1) CCS-XB controller
  • (4) LED monitor indicators Adder P/N: CCS-LED
  • (1) 10ft CATx link cable Adder P/N: VSC46
  • (4) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

CCS-XB Resources

Adder CCS-XB Manual Screenshot Adder CCS-XB Quick Start (PDF)
Adder CCS-PRO Manual (PDF)

Brochures
Adder Command & Control (PDF)

Case Studies
Lisbon Airport (PDF)
Sicoplan (PDF)
911 Call Center (PDF)


Adder CCS-XB Specifications

Mechanical
Height 1.2 in. (30 mm.)
Width 3.7 in. (9 mm.)
Depth2.6 in. (65 mm.)
Weight0.5 lbs. (0.22 kg.)
Environmental
Operating Temperature0°C to 40°C / 32°F to 104°F
Hardware compatibilityFor use with CCS4-USB devices with firmware 2.0 or above
Connectivity
to CCS410p10c connector via cable VSC46
Other Connections10 x 6P6C connecters for the CCS-LED modules
1 x 10P10C connector for upgrade cable or remote control RC4 4-button switch
ApprovalsCE, FCC

Please note: In order to operate correctly with the CCS-XB, it is important that your CCS4-USB has firmware version 2.0 (or greater) installed.

Question: Do you have LED monitor indicator (CCS-LED) longer than 3 meters or an extendor that allows to place a LED over a monitor that is about 5 mts away from the PC?
Answer: Thank you for your inquiry,

We do indeed! You can find the LED monitor indicator with a 5 meter (10 ft) cable here (Adder CCS-LED-5M).

Please let us know if there is anything else we can help you with!
