Aten 17" Rackmount LCD Console support USB and PS2


Save $172.53
Model: 17"
FREE Shipping on orders over $100

ATEN's new economy LCD KVM console, CL1000M, offers a space-saving, streamlined approach to IT environments by integrating a keyboard, 17" LCD monitor, and touchpad in a 1U Slideaway™ housing. The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines, and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module away back into the rack. For added versatility the CL1000M comes with a USB and PS/2 cable to simplify connecting to your KVM.

There is no better way to save time and money than with a CL1000M installation. By using the CL1000M to manage your installation, you:

  • Save all the space those standard components, keyboard, mouse, and monitor, would take up
  • Eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer if attaching to a KVM switch
  • Take advantage of upgrading your current system, since CL1000M is compatible with all types of KVM switches
  • Save time for installation. Just connect the cable between CL1000M and a KVM or a computer, and the CL 1000M is ready to serve you.

Aten CL1000M Features & Benefits

  • Integrated KVM console featuring a 17" LCD monitor in 1U high
  • Compatible with all ATEN KVM Switches and most of KVM switch in the market
  • Built in internal power 1280 x 1024 resolution assures crisp video display
  • Less than 1 U high mountable rack
  • Adjustable depth to fit within the different racks

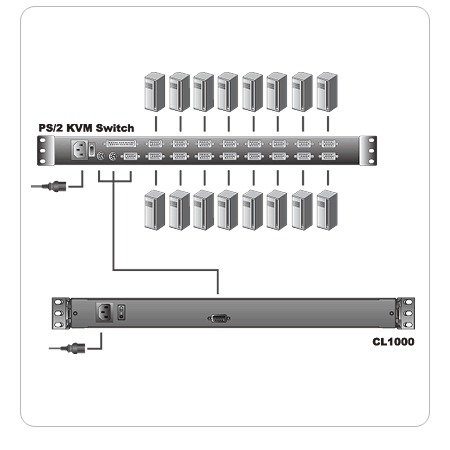

Aten CL1000M Application Diagram

Aten CL1000M - Diagram
Aten CL1000M - Diagram

Aten CL1000M Package Contents

Whats Included In the Box? Aten CL1000M Package Contents

  • (1) CL-1000 Slideaway Console Module
  • (1) Integrated Standard Rack Mounting Kit
  • (1) Custom KVM Cable (2L5202P, 6 ft. PS2)
  • (1) Custom KVM Cable (USB)
  • (1) Power Cord
  • (1) User Manual
  • (1) Quick Start Guide
  • (1) 2-Year Warranty

Aten CL1000M Specifications

Humidity 0~80% RH
Operation Temperature 32F~122F (0C~50C)
Storage Temperature -4F~140F (-20C~60C)
Physical Properties

Housing Metal
Unit Weight 30 lbs (13.6 kg)
Unit Weight w/ Package 42 lbs (19.1 kg)
Unit Package Dimensions 28.3 x 26.8 x 5.6 in. (71.9 x 9.35 x 14.2 cm)
Unit Dimension 23.6 x 18.9 x 1.8 in. (59.9 x 48 x 4.6 cm)
Computer Connections



3 prong AC Socket

CPU Connectors

Keyboard, Mouse, and Monitor 1 x SPHD-15 Female

Keyboard PS/2
Mouse PS/2
Power Consumption

120V 60Hz 22.8W / 230V 50Hz 24W

Warranty 1- Year
UPC / EAN Barcode icon
UPC 672792112287
EAN 0672792112287
Question: I am a user of this product and am having problem not getting display even if it is Powered ON. Can I get support for this pls?
Answer: Thank you for your inquiry,

We are sorry to hear of the troubles you are experiencing with the unit! Please feel free contact Aten Technical Support for troubleshooting your application at +1-949-428-1111 or If the unit needs any servicing, Aten offers a 2-year standard manufacturer warranty that comes with the CL1000M.

Please let us know if there is anything else we can help you with!

Question: Aten cl1000 display has no power indication?
Answer: Thank you for your inquiry,

We are sorry to hear of the problem you are experiencing! Please feel free to reach out to Atens Technical Support team at or +1-949-428-1111 for troubleshooting what may be causing this.

Please let us know if there is anything else we can ever help you with!
