1U 18.5" (1080p) Ultra Short Depth Dual Rail WideScreen LCD Console (USB / HDMI / DVI / VGA)
CL3800NW
Save $480.98
Aten Ultra-Short-Depth Rack Console Series
 | | | |||
| Model Name | CL3800NW | CL3800NX | CL3700NW | CL3700NX | CL3100NX |
| Dual Rail/ Single Rail | Dual Rail | Dual Rail | Single Rail | Single Rail | Single Rail |
| Video Interface | HDMI/ DVI/ VGA | HDMI/ DVI/ VGA | HDMI | HDMI | VGA |
| 18.5" LCD Resolution | 1920x1080 | 1366x768 | 1920x1080 | 1366x768 | 1366x768 |
| Supported Rack Depth (cm) | 45~105 | 45~105 | 42~105 | 42~105 | 42~105 |
Aten CL3800NW USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800NW also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.
Features & Benefits
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth dual rail design and a 18.5" LED-backlit LCD monitor allows you to work in narrow spaces
- Supports an external console with USB / DVI / VGA / HDMI connectors
- Superior video quality - up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
- Front USB 2.0 Pass-through port for peripheral USB devices
Space Saving

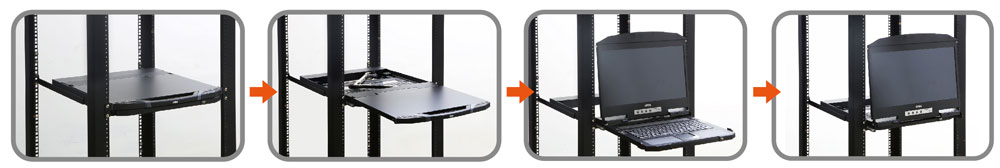

Dual Rail Design
The CL3800NW dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.

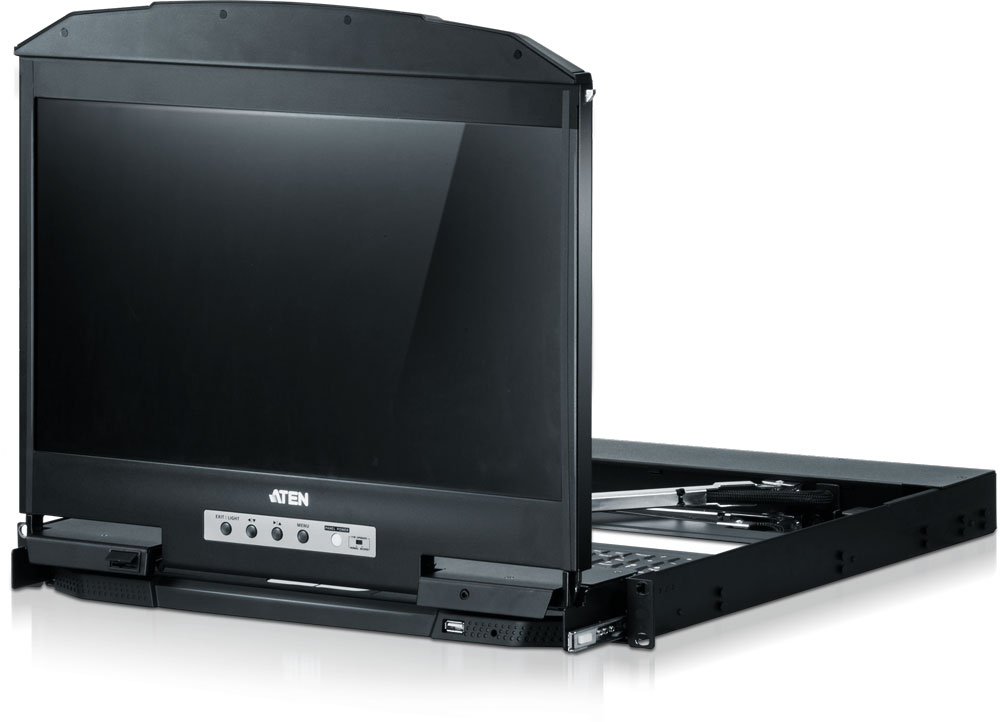

Ultra Short Depth
The short-depth design fits all 19" EIA equipment cabinets, and is especially suitable for shallow racks. The CL3800 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
Furthermore, CL3800 dual rail design allows LCD monitor and keyboard modules to operate independently, optimizing space utilization while providing 24/7 monitoring.

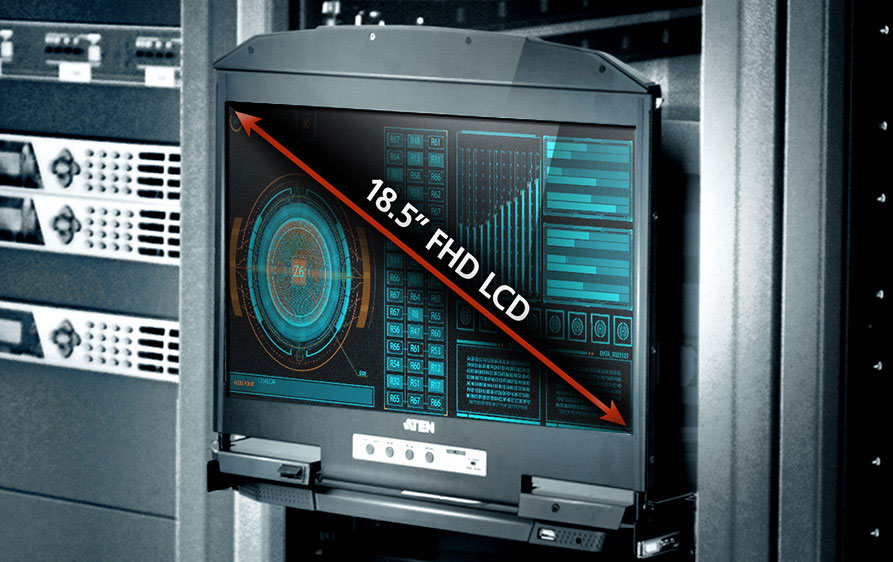

Up to Full HD Resolution
Supports superior video quality up to 1920 x 1080 @ 60Hz. The CL3800's full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.
Supports Popular Interfaces, HDMI, DVI, VGA
The CL3800 allows users to connect the console via the most widely-used types of video interface, HDMI, DVI and VGA - and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source.
For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.

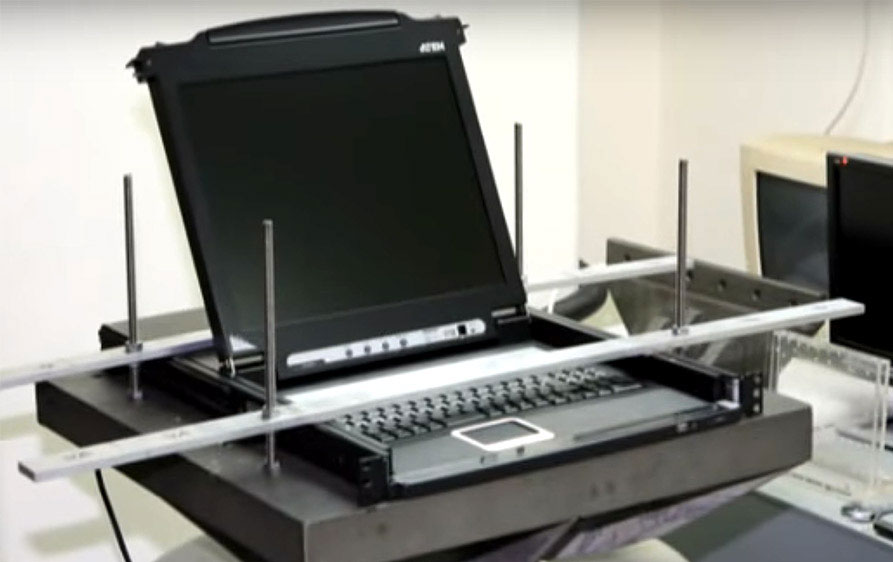

Fully Tested for Robust Vibration Environments
Every ATEN LCD console has passed strict environmental tests to ensure quality and reliability.
LED illumination light
The exclusive LED illumination light was designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions.
Aten CL3800 Applications
With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Limited space telecom, broadcasting and surveillance server rooms
Broadcast OB Vans
Portable Rack Mount Cases
Aten CL3800NW Package Contents
- (1) CL3800NW LCD KVM Console
- (1) Integrated Rack Mount Kit
- (1) 6ft USB, HDMI, Audio KVM Cable
- (1) Firmware Upgrade Cable
- (1) Power Cord
- (2) L Brackets
- (1) 2-Year Warranty
Aten CL3800 Resources
Aten CL3800NW Datasheet (PDF)
Aten CL3800NW Manual (PDF)
Aten CL3800NW Quick Start Guide (PDF)
Aten CL3800NW CAD Drawing (PDF)
Aten CL3800NW Specifications
| Computer Connections | 1 | |
| Console Selection | Hotkey | |
| Connectors | ||
| External Console Ports | 1 x HDMI Female 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) | |
| KVM Ports | 1 x HDMI Female 1 x DVI-D Female (White) 1 x HDB-15 Male (Blue) 1 x USB Type B Female 1 x 3.5mm Audio Jack Female (Green) | |
| USB Port | 1 x USB Type A Female | |
| Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) | |
| Power | 1 x 3-prong AC Socket | |
| Switches | ||
| Reset | 1 x Semi-recessed Pushbutton | |
| Firmware Upgrade | 1 x Slide | |
| Power | 1 x Rocker | |
| LCD Power | 1 x Pushbutton | |
| LCD Adjustment | 4 x Pushbutton | |
| LEDs | ||
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) | |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | |
| Video | ||
| Input Video Resolution | 1920 x 1200 @ 60 Hz, DDC2B | |
| LCD Panel Spec | ||
| LCD Module | 18.5" TFT-LCD | |
| Resolution | 1920 x 1080 @ 60 Hz | |
| Pixel Pitch | 0.213 mm x 0.213 mm | |
| Response time | 20 ms | |
| Viewing Angle | 178° (H), 178° (V) | |
| Contrast Ratio | 1000 : 1 | |
| Support Color | 16.77M colors | |
| Luminance | 350 cd/mē | |
| Emulation | ||
| Keyboard / Mouse | USB | |
| Maximum Input Power Rating | 100-240V AC; 50-60Hz; 1A | |
| Power Consumption | AC110V:26.6W:140BTU AC220V:26.8W:141BTU | |
| Environmental | ||
| Operating Temperature | 0-40°C | |
| Storage Temperature | -20-60°C | |
| Humidity | 0 - 80% RH, Non-condensing | |
| Physical Properties | ||
| Housing | Metal | |
| Weight | 9.61 kg ( 21.17 lb ) | |
| Dimensions (L x W x H) | 48.06 x 51.42 x 4.28 cm (18.92 x 20.24 x 1.69 in.) | |
| Body Dimensions(L x W x H) | 44.92 X 46.74 X 4.28 cm (17.69 x 18.40 x 1.69 in.) | |
| Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
UPC 672792008382
EAN 0672792008382
