ATEN CS1708AUKIT 8-Port Combo (USB-PS/2) KVMP w/ 8-USB Cables

CS1708AUKIT

$718.00$577.15
Save $140.85
Model: 8 Port
FREE Shipping on orders over $100

The ATEN CS1708AUKIT 8-port PS/2-USB KVMP Switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single ATEN CS1708A KVM Switch can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, the CS1708AUKIT KVM includes a front panel USB port for each computer to access any peripherals connected to it on a 'one-at-a-time' basis.

ATEN CS1708AUKIT KVM Features:

  • A single console controls up to 8 computers
  • Daisy-chain up to 31 additional units - control up to 256 computers from a single console
  • Front accessible USB port allows each computer to access USB peripherals*
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Auto PS/2 and USB interface detection
  • USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Video resolution up to 2048 x 1536; DDC2B
  • No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode; operations simultaneously performed on all selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
  • Rack mountable in 19" system rack (1U)

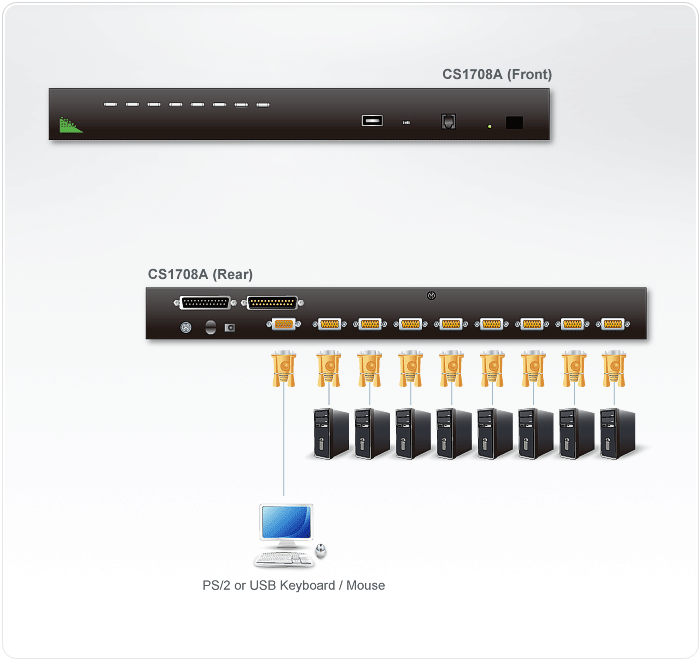

Aten CS1708AUKIT Diagram
ATEN 8-port PS/2-USB KVMP Switch
(ATEN CS1708A depicted here)

Aten CS1708AUKIT Requirements:

  • Console
    • A VGA, SVGA, or Multisync Monitor
    • A USB or PS/2 Keyboard & Mouse
  • Computers
    • A VGA, SVGA, or Multisync graphics card with HDB-15 port.
    • PS/2 or USB ports
    • Two USB ports required for Virtual Media and USB Keyboard/Mouse operation

Aten CS1708AUKIT Package Content:

  • 1 CS-1708A 8-port KVM Switch
  • 2 x 2L5201U 4ft. USB KVM Cable
  • 4 x 2L5202U 6 ft, USB KVM Cable
  • 2 x 2L5203U 10ft. USB KVM Cable
  • 1 Console Cable
  • 1 Firmware Upgrade Cable
  • 1 Standard Rack Mounting Kit
  • 1 Foot Pad set (4 pads)
  • 1 Power Adapter
  • 1 User Manual
  • 1 Quick Start Guide

Aten CS1708AUKIT Specifications:

MechanicalUnit
Height1.73 in. (4.40 cm.)
Width 6.3 in. (16.00 cm.)
Depth17.05 in. (43.30 cm.)
Weight5.86 lbs. (2.66 kg.)
Environmental
Operating Temperature32-122 F (0-50 C)
Storage Temperature

-4-140 F (-20-60 C)

Humidity

0-80% RH, Non-condensing

LEDs
On Line8 (Orange)
Selected8 (Green)
Station ID1 x 2-digit, 7-segment (Orange)
Power1 (Dark Green)
Port SelectionOSD, Hotkey, Pushbutton
Video Resolution2048 x 1536; DDC2B
Power ConsumptionDC 5.3V, 5W
Scan Interval1-255 Seconds
Supported Hardware
EmulationUSB PS/2 keyboard/mouse
Keyboard, Mouse & Monitor1 x SPHD-18
KVM Ports8 x SPHD-15
Firmware Upgrade1 x RJ11
USB Port1 x USB Type A
Power1 x DC Jack
Standards
Approved Agency RoHS
UPC / EAN Barcode icon
UPC 672792503412
EAN 0672792503412
