1U Dual Slide 17" Rack Mount Monitor Drawer w/ 2-User, 16-Port KVM Switch


FREE Shipping on orders over $100

The D117-IP1602e is a 1U Dual Slide Rackmount LCD Monitor with 17" Samsung LCD with integrated 2-console (1 x local; 1 x IP), 16 port Combo DB-15 IP KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse and includes 16 6ft Combo 4-in-1 KVM cables.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

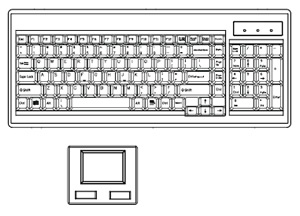

"Ne" style keyboard included with D117-IP1602e
"Ne" style keyboard included with D117-IP1602e

D117-IP1602e Features & Benefits:

  • 1U dual slide rackmount drawer with 17" LCD console drawer
  • Multiple keyboard language selections with touchpad
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm abd 500mm respectively
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • 2 post rack mounting available

Combo DB-15 IP KVM Switch Features & Benefits:

  • Combo DB-15 KVM with 16 ports in 1U
  • IP remote access across the world wide web
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Cost efficient remote server management between national / global sites
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover
D117-IP1602e Rackmount LCD Diagram
D117-IP1602e Rackmount LCD Diagram

D117-IP1602e Specifications:

Height 1.73 in. (4.39 cm.)
Width 17.4 in. (44.2 cm.)
Depth18.1 in. (45.9 cm.)
Weight26 lbs. (12 kg.)
Samsung LCD Monitor
4:3 Screen Size17"
Display TypeActive Matrix TFT
Native Resolution1280 x 1024
Brightness (cd/m2)250
Contrast Ratio1000 : 1
Viewing Angle (H x V)160° x 160°
Display Color16.7M
KVM Switch
KVM Port16 x DB-15 combo connector
KVM ConnectivityCombo 4-in-1 KVM cable, up to 6, 10 & 15 feet
(16 x 6ft cables included)
ConsoleLocal : 1 x DB-15 VGA (up to 1600 x 1200),
2 x USB for KB & MS
IP Access : 1 x RJ45 Ethernet, 1 x DB-9 serial &
1 x USB port
IP Security : SSL v3, RSA, AES, CSR, http & https
internet access
15-user login ( 1 x active user )
ExpansionSupport mixed Combo Cat6 or Combo DB-15
KVM, up to 240 servers
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
Power100~240VAC, 50 / 60Hz 0.3A via IEC type cord
(12V / 24V / 48V DC input option)
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory ApprovalFCC, CE
Cables Included16 x CE-6 (6ft Combo 4-in-1 KVM cable)
