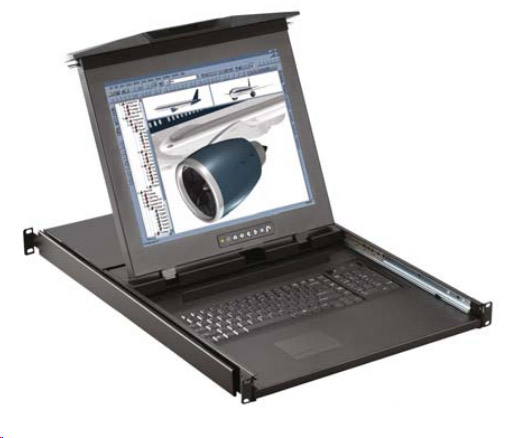

1U Dual Slide 17" LCD & Keyboard Drawer w/ 2-Console 8-Port KVM Switch


FREE Shipping on orders over $100

The D117-M802e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 2-console (1 x local; 1 x remote) 8 port Matrix Multi-User DB-15 KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse and includes 8 6ft Combo 4-in-1 KVM cables.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

"Ne" style keyboard included with D117-M802e
"Ne" style keyboard included with D117-M802e

D117-M802e Features & Benefits:

  • 1U dual slide 17" LCD console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer

Matrix Multi-User DB-15 KVM Switch Features & Benefits:

  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 8 servers per device in 1U
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Mix Legacy PS/2 servers with newer USB and SUN solutions
  • Multi lingual on screen display menu
D117-M802e Rackmount LCD Diagram
D117-M802e Rackmount LCD Diagram

D117-M802e Specifications:

Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Weight35 lbs. (16 kg.)
Samsung LCD Monitor
4:3 Screen Size17"
Display TypeActive Matrix TFT
Native Resolution1280 x 1024
Brightness (cd/m2)250
Contrast Ratio1000 : 1
Viewing Angle (H x V)160° x 160°
Display Color16.7M
Active area (mm)338x270
Signal InputVGA
KVM Switch
KVM Port8 x DB-15 combo connector
KVM ConnectivityCombo 4-in-1 KVM cable up to 6, 10 & 15 feet
Local ConsoleLCD console drawer version (Up to 1920x1080/1920x1200)
Cat6 Remote Console1xRJ45 via Cat5/Cat5e/Cat6 cable up to 500 ft
DB 15-pin VGA, up to 1600x1200
ExpansionUp to 240 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
PowerMax. 48 Watt, Standby 5 Watt
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory ApprovalFCC, CE
Cables Included16 x CE-6 (Combo 4-in-1 KVM Cables)
