User Station for Dominion KX III - Single or Dual Monitor, USB 3.0, Dual Ethernet, and Audio support


The Raritan Dominion KX III User Station (DKX3-UST) is an optional self-contained, hassle-free appliance for high performance IP access to servers connected to a Dominion KX III switch in environments where a standalone PC is not wanted. It can sit on a desk, be mounted in a standard 19" rack, or VESA-mounted on the back of a monitor. Deploy it using standard Cat5 cabling and Ethernet/IP technology. Simultaneously access, view, and control multiple servers, spread across single or dual monitors.

The User Station can replace outdated analog matrix switches, replace/supplement expensive, inflexible broadcast systems or be deployed anywhere hassle-free IP access is needed. It's perfect for broadcast labs, studios, control rooms, offices, and data centers.

Raritan DKX3-UST Features

  • Support KVM-over-IP connections to target servers*
  • Support a HDMI- or DisplayPort-interfaced monitor
  • Support dual monitors
  • Support dual LAN connections
  • Support virtual media, including smart card (CAC) and external DVD or USB drives
  • Support authentication and authorization via LDAP or optional FIPS 140-2 mode
  • Support power control for target servers (with Raritan PX PDUs)

*The User Station CANNOT access a KVM port that is connected to a tiered KVM switch or a blade chassis server

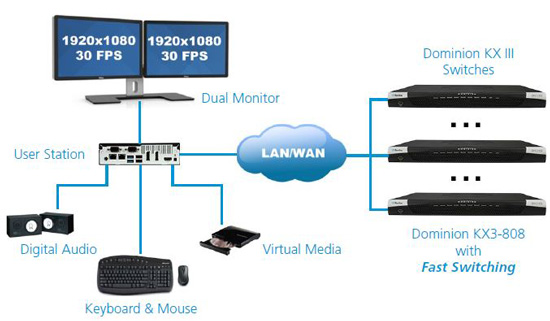

DKX3-UST Application

DKX3-UST Unit Front

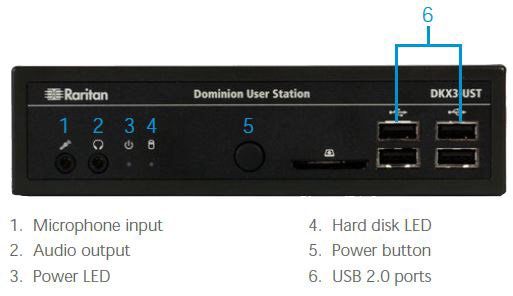

DKX3-UST Front

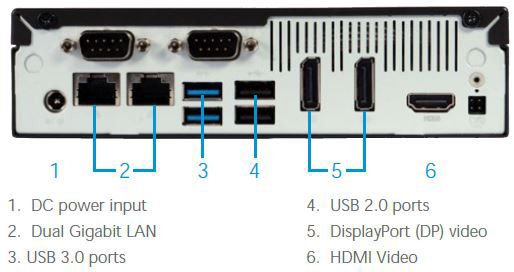

DKX3-UST Unit Rear

High Performance User Station

  • Powerful Intel-based platform.
  • Two 1080p streaming video sessions at 30 FPS.
  • Ultra-fast connections and sub-second switching with the non-blocking DKX3-808 model.
  • Supports VGA, DVI, HDMI & DisplayPort video.
  • Self-contained, low maintenance appliance.

Productive and Powerful User Interface

  • Supports single or dual monitors (up to 2 DisplayPort and/or 1 HDMI).
  • 8 or more simultaneous IP connections.
  • Flexible window manager.
  • Full Screen mode (with hidden toolbar).
  • Favorites and hot-key switching.
  • Virtual media and USB audio.

Flexible and Easy to Deploy

  • Flexible dual LAN or WAN access.
  • Use corporate and/or separate LAN.
  • Connects with inexpensive Cat5 cabling.
  • Access hundreds of servers and devices.
  • PC/Laptop access also available.
  • Desktop, VESA (kit included) & Rack (RACK-KIT-DKX3-UST) mountable.

DKX3 Video Quality Comparison Video Thumbnail

Dominion KX3 User Station Video Quality vs Competition

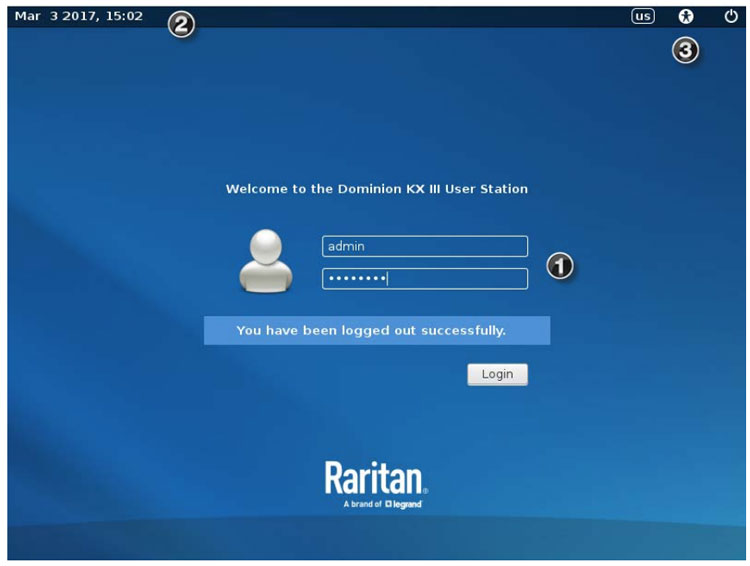

Raritan DKX3-UST User Station Login IP Screen

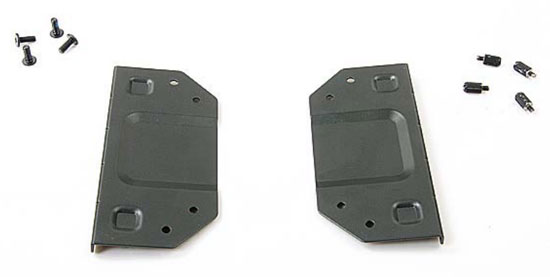

DKX3-UST User Station VESA Mounting Kit (included)
Rack Mount Kit sold separate

DKX3-UST Applications

  • Broadcast labs & studios
  • Control Rooms
  • Government & military
  • Transportation & energy
  • Factory & industrial
  • Data Centers

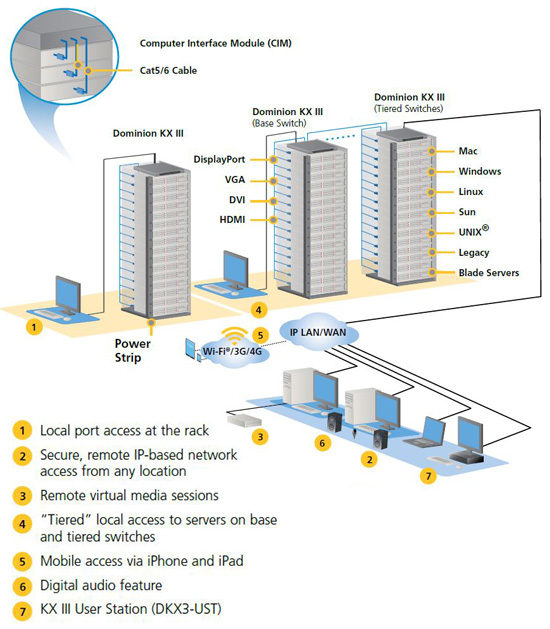

Dominion KX 3 Full Application with DKX3-UST User Station

Dominion KX III Solution Application

DKX3-UST Package Contents

Raritan DKX3-UST What's Included?

  • (1) DKX3-UST Dominion User Station
  • (1) Power adapter + Cord
  • (1) VESA mount kit
  • (1) Quick Setup Guide
  • (1) L-type rackmount kit (optional - sold separately)
  • (1) 2-Year Limited Warranty Card

Test Drive DKX3-UST Test Drive DKX3-UST!

The way to access the KVM system is through a web browser via the KVM's IP address or hostname.

You can try it for yourself here:
username: webdemo
password: password

There are three kinds of clients that the web browser can load. By default from windows, the .NET client will load.

  1. Java client (
  2. HTML client (
  3. .NET client ( -- windows only)
UPC / EAN Barcode icon
UPC 785813048271
EAN 0785813048271
Question: Is the Raritan DKX3-UST TAA Compliant?
Answer: Thank you for your inquiry,

All of Raritan's products meet the requirements of the Trade Agreements Act (TAA) and are approved to be acquired by the United States Government for use. These products are also compliant with GSA Schedules.

you can find more about Raritan's TAA Compliance here: Legal - About Us | Raritan

Question: Is there a proprietary statement or Trademarked statement about Raritan KVM over IP or user stations being compatible with Raritan products only?
Answer: Thank you for your inquiry,

DKX3-UST was designed to only work with Raritan products and should not be compatible with any other vendors products. See the links below for the latest release notes and data sheet that include DKX3-UST compatibility information-

DKX3 User Station Release Notes.

DKX3 User Station Brochure

After checking in with the Dominion KX3 product development team, I do not believe Raritan has any documentation that is more specific regarding the compatibility of the Dominion KX III User station only with Raritan products.

Please feel free to reach out to our sales team for any help you may need with your specific application.

Question: What's the resolution supported?
Answer: Thank you for your inquiry,

The Raritan DKX3-UST user station supports one or two seperate 1080p (1920x1080) video sessions at 30 FPS each.

Please let us know if there is anything else we can help you with!

Question: Have a Sony PWSK4403 control panel which connect with USB port of Raritan dkx3-ust. Is there any solution?
Answer: Thank you for your inquiry,

While we are not particularly acquainted with the Sony PWSK4403, this DKX3 User station would support virtual media USB devices.

Are you experiencing any troubles with this unit, or are you looking for a KVM switching solution for this?

Question: Hello, one of the electrical engineers has already chosen this device (DKS III UST), now I need to add it in the total assembly. Could you please provide the dimensions so that it is easy to incorporate to see how it will fit? Thank you.
Answer: Thank you for your inquiry,

The dimensions for the Raritan DKX3-UST are 190(L) x 165(W) x 43(H) mm, and the unit weighs 1.4 kg. For shipping, the unit ships in a package that weighs 2.3 kg.

Here are also the mounting dimensions for the DKX3-UST:
  1. DKX3-UST Ships with a VESA Mounting Kit that allows you to mount the Dominion User Station onto the back of for example a monitor with 75 mm (75 x 75 mm) or 100 mm (100 x 100 mm) VESA standards.
  2. An optional Rack Mount Kit (PN RACK-KIT-DKX3-UST) is also available which lets you mount the DKX3-UST into 1U of standard 19"EIA rack space.
Please let us know if there is anything else we can help you with!

Question: Does the DKX3-UST have fans for cooling or is it just vented?
Answer: Thanks for reaching out to us,

The DKX3-UST does in-fact have internal fans for cooling the unit.

Please let us know if there is anything else we can help you with!
