Avocent 1U 17" LCD Console with USB keyboard, Touch Pad and USB pass-through



Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

The Avocent ECS17KMM is a 17 inch, 1U high rackmountable console with On-Screen Display (OSD) functions that allow you to adjust the console to best fit your environment.The Avocent 1U-high LCD Console Tray-only series provide convenient, direct at-the-rack access to KVM switches in enterprise data centers and SMB server rooms.

Avocent ECS17KMM Features & Benefits::

  • USB 2.0 Pass Through - Convenient front-of-the-rack media connection
  • High-Quality 17-inch LCD (1280x1024) - Reliability reduces downtime
  • Keyboard with Integrated Pointing Device - Easy to install and access
  • Form Factor: The Avocent LCD Console Trays are easy to access and their 1U slide-in design does not compete for valuable rack space
  • KVM Compatibility: The design is compatible with most Avocent 1U KVM switches to support new and legacy installations*
  • OSD: On-Screen Display in multiple languages
  • Mouse Option: ECS17KMM model supports touch pad
  • At-the-Rack Access: Provides convenient access and control to PCs and servers

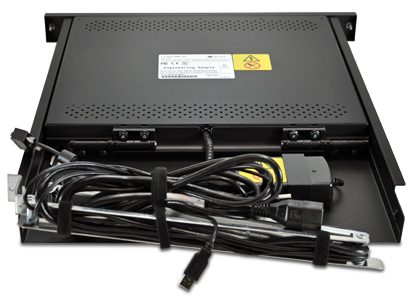

Avocent ECS17KMMP Back
ECS17KMM - LCD Rack Mount Back View

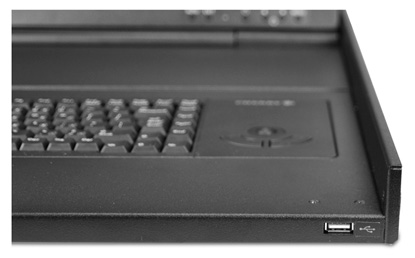

2.0 USB Pass Through
Avocent ECS17KMMP USB Pass Through
(image depicts ECS17KMMP PS/2 model. ECS17KMM has an integrated touch pad, not the trackball as depicted)

Avocent ECS17KMMP Specifications:

Height 1.72 in. (4.4 cm)
Width 17.38 in. (44.1 cm)

21.3 in. (54.1 cm)

Weight 27 lbs (13.2 kg)
Operating Temperature 32° to 120° F
(0° to 50° C)
Storage Temperature -4° to 140° F
(-20° to 60° C)
Operating Voltage AC 100 - 240V
Input Consumption 24-40W
Supported Hardware
Keyboard and Mouse Connector USB
Video Connector VGA
Hardware Specifications
LCD Resolution 1280x1024
LCD Color 16.7 M True Colors
Approved Agency RoHs, China RoHs, UL, Ulc, CB, CE, FCC/EMC, BSMI, KCC, GOST, VCCI, CTICK, CCC


Question: What is the Underwriters Laboratory (UL) rating for this product? We need this for our safety documentation to the customer.
Answer: Thank you for your inquiry. According to the manufacturer, the standard is UL 60950-1, 2nd Edition.

Question: I have broblem with my kvm, the led flash orange green and red,can you help?
Answer: Thank you for your inquiry,

I would reccommend to contact Avocent Technical Support for issues with your ECS17KMM console drawer. They can help you walk through trouble shooting step-by-step.

Question: How does it switch form one CPU's display to other CPU's display?
Answer: Thank you for your inquiry,

You can attach a 2-port KVM switch to the ECS17KMM to switch sources between two computers.

Question: Kindly send me the price list and catalog pdf for ECS17KMM-215. Thank you.
Answer: Thank you for your inquiry,

Here is a Brochure for the Avocent ECS17KMM series. Please be aware, the ESC17KMM is discontinued and replaced by the Avocent LRA series - no price list is available.

Question: Hi, i need a EC-Declaration of Conformity for ECS17KMM 205. I couldn't find it here. Please Help. Thank you
Answer: Thank you for your inquiry,

We checked in on this with Avocent (by Vertiv) product management - Unfortunately since the unit has been EOL for a while, they are "unable to provide the requested document."
