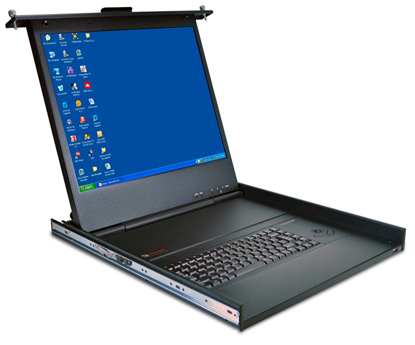

Avocent 1U 17" LCD Console with PS/2, trackball mouse



Recommended replacement: Avocent LRA185KMMP-001
Alternative options: Contact Us

The Avocent ECS17KMMP is a 17 inch, 1U high rackmountable console with On-Screen Display (OSD) functions that allow you to adjust the console to best fit your environment.The Avocent 1U-high LCD Console Tray-only series provide convenient, direct at-the-rack access to KVM switches in enterprise data centers and SMB server rooms.

Avocent ECS17KMMP Features & Benefits::

  • USB 2.0 Pass Through - Convenient front-of-the-rack media connection
  • High-Quality 17-inch LCD (1280x1024) - Reliability reduces downtime
  • Keyboard with Integrated Pointing Device - Easy to install and access
  • Form Factor: The Avocent LCD Console Trays are easy to access and their 1U slide-in design does not compete for valuable rack space
  • KVM Compatibility: The design is compatible with most Avocent 1U KVM switches to support new and legacy installations*
  • OSD: On-Screen Display in multiple languages
  • Mouse Option: the ECS17KMMP model supports trackball
  • At-the-Rack Access: Provides convenient access and control to PCs and servers

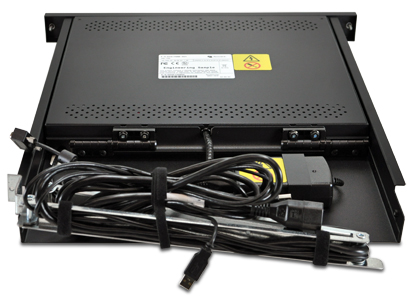

Avocent ECS17KMMP Back
ECS17KMM - LCD Rack Mount Back View

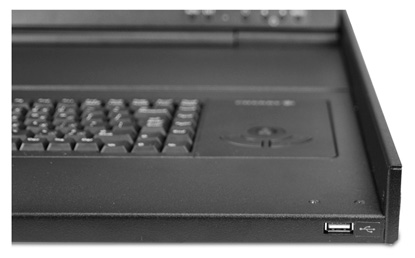

2.0 USB Pass Through
Avocent ECS17KMM USB Pass Through

Avocent ECS17KMMP Specifications:

Height 1.72 in. (4.4 cm)
Width 17.38 in. (44.1 cm)

21.3 in. (54.1 cm)

Weight 27 lbs (13.2 kg)
Operating Temperature 32° to 120° F
(0° to 50° C)
Storage Temperature -4° to 140° F
(-20° to 60° C)
Operating Voltage AC 100 - 240V
Input Consumption 24-40W
Supported Hardware
Keyboard and Mouse Connector PS/2
Video Connector VGA
Hardware Specifications
LCD Resolution 1280x1024
LCD Color 16.7 M True Colors
Approved Agency RoHs, China RoHs, UL, Ulc, CB, CE, FCC/EMC, BSMI, KCC, GOST, VCCI, CTICK, CCC


Question: Hi, I am in need of the rack mount kit for an Avocent ECS17KMMP-001 console, mainly I need the rails that go into the server rack enclosure including all needed hardware, would you be able to direct me in the right direction? Thank you in advance.
Answer: Thank you for your inquiry. We have reached out to the manufacturer and unfortunately, it does not appear they have replacement rack mount kits available for purchase through retailers. Additionally, our contact was unable to locate any spares in the warehouse.

Your best bet will probably be to contact the manufacturer directly. Contact information for Avocent support can be found here: http://www.emersonnetworkpower.com/en-US/Support/Technical-Support/KVM/Pages/default.aspx.
