Belkin 1U, 15" LCD Rack Console



For upgrade or replacement options: Contact Us

The Belkin F1DC100P-SR is a 1U, 15" LCD Rack Console which enables you to conveniently control racked servers from a single, secure, compact console. The Rack Console fits a standard 19-inch rack, ensuring clearance for the full extension of the LCD and keyboard.  This rack mount monitor also offers features such as a key-locking mechanism to prevent unauthorized access, and cable-management arms that organize console cables as the drawer extends and retracts. Available in 15- and 17-inch color displays, it delivers  and 1280x1024@65Hz resolution respectively, through a protected, tempered-glass overlay.  The Rack Console works with any KVM switch and conveniently offers PS/2 platform support.

Belkin F1DC100P-SR Features

  • Saves space with 1U 19" rack-mount drawer design
  • Includes a key-locking mechanism to prevent unauthorized access to console
  • Features 15" LCD TFT active-matrix color panel for high quality
  • Integrates compact 106-key function keyboard, including numeric 10-key pad
  • Designed especially for 4-post racks
  • Features adjustable brackets for broadest rack compatibility and ease
  • 1024x768@65Hz resolution

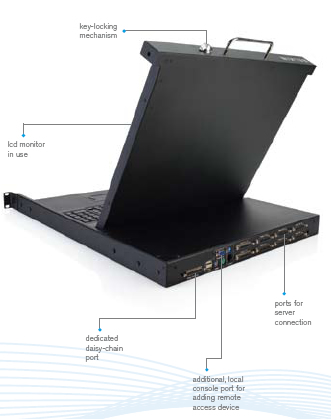

Belkin 1U 15" LCD Rack Console Back View
Belkin 1U 15" LCD Rack Console Back View

Belkin F1DC100P-SR Specifications:

Height 1.70 in. (43.18 mm.)
Width 19 in. (482.6 mm.)
Depth 21.7 in. (551.2 mm.)
Weight 22.4 lbs. (10.16 kg.)
Material/Enclosure Heavy-duty steel
Rail Type Single-Rail Technology
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature 4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
Power Auto-switching, 100 to 240VAC, 50 to 60Hz, 48-watt
Keyboard & Mouse
Keyboard Type Laptop style
Operating Life of Keys 8 million cycles
Keyboard/Mouse Connections PS/2
Mouse Type Touchpad style
KVM Switch No
Users 1
Display Type 15" LCD active-matrix color
Maximum Resolution 1024 x 768
