Belkin 17" LCD Rack Console 1U, Single-Rail Technology
F1DC101P-SR
Download the
F1DC101P-SR
Quick Install Guide (PDF)
F1DC101P-SR
Quick Install Guide (PDF)
The Belkin F1DC101P-SR is a 1U, 17" Rack-Mount Console which enables system administrators to conveniently control racked servers from a single, secure, compact console. With its slim design, the Rack-Mount Console fits a standard 19-inch rack, ensuring clearance for the full extension of the LCD and keyboard. The Rack-Mount Console offers other advanced features such as a key-locking mechanism to prevent unauthorized access, and cable-management arms that organize console cables as the drawer extends and retracts. The Rack-Mount Console works with KVM switches and conveniently offers PS/2 platform support.
Belkin F1DC101P-SR Features:
- Saves space with 1U 19-inch, rack-mount drawer design
- Includes a key-locking mechanism to prevent unauthorized access to console
- Features grade-A, 17" LCD TFT active-matrix, color panel for high quality
- Integrates compact 106-key function keyboard, including numeric 10-key pad
- Designed especially for 4-post racks
- Features adjustable brackets for broadest rack compatibility and ease
- Single-rail design - easy to use, space saving design for maximizing efficiency at the server rack
- Wide viewing angle - 115-degree monitor articulation provides superior viewing flexibility
- Universal mounting - adjustable mounting rails accommodate most 19" EIA rack/depth configuration
Package Includes:
- 17" LCD Rack Console
- Power Cable
- VGA, PS/2 Cable Kit
- Bracket Kit and Required Hardware
- Quick Installation Guide
- Keys

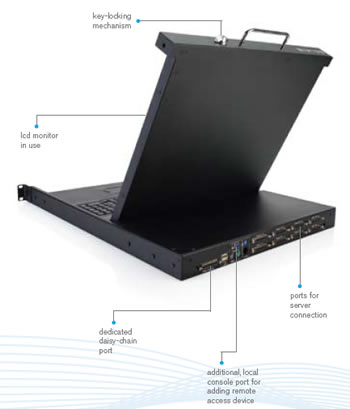

Belkin 17" LCD Rack Console Feature Diagram
Belkin F1DC101P-SR Specifications:
| Mechanical | |
| Height | 1.70 in. (43.18 mm.) |
| Width | 19 in. (482.6 mm.) |
| Depth | 21.7 in. (551.2 mm.) |
| Weight | 26.9 lbs. (12.2 kg.) |
| Environmental | |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity | 0-80% RH, non-condensing |
| Power | Auto-switching, 100 to 240VAC, 50 to 60Hz, 48-watt |
| Keyboard/Mouse | |
| Keyboard Type | Laptop style |
| Keyboard/Mouse Connection | PS/2 |
| Operating Life of Keys | 8 million cycles |
| Mouse Type | Touchpad style |
| KVM Switch | No |
| Display | |
| Type | 17" LCD active-matrix color |
| Maximum Resolution | 1280 x 1024 |
| Users | 1 |
| Material/Enclosure | Heavy-duty steel |
| Rail Type | Single-rail technology |
Question: what code do i use to unlock screen
Answer: Thank you for your inquiry. This particular rack console is a hardware-based, pass-through device. It will use the unlock code/credentials from the attached computer for access. Unless the device is attached to a KVM switch, no other code should be required to unlock.
If this unit connects to a KVM switching device, additional log-in credentials may be required by the KVM, but those would be based on the KVM manufacturer and/or security settings on the KVM switch itself.
Answer: Thank you for your inquiry. This particular rack console is a hardware-based, pass-through device. It will use the unlock code/credentials from the attached computer for access. Unless the device is attached to a KVM switch, no other code should be required to unlock.
If this unit connects to a KVM switching device, additional log-in credentials may be required by the KVM, but those would be based on the KVM manufacturer and/or security settings on the KVM switch itself.
