IOGEAR USB KVM Cable, 10ft


FREE Shipping on orders over $100

The IOGEAR G2L5303U is a 10ft All-In-One bonded USB KVM cable which is designed to deliver superb video quality and error-free transmission for your high-resolution applications. The aluminum shield and an all-in-one bonded structure provide the maximum in quality, performance, and reliability. This KVM cable features a custom designed DB15 connector which combines keyboard, mouse, and video connections in one to save the space on the KVM and allows 16 ports on a mere 1U high space. The thin, flexible cable and the over-sized thumbscrews also make installation quick and easy.

This IOGEAR KVM cable is designed for the following IOGEAR KVM switches:

  • GCS1732
  • GCS1734
  • GCS1758

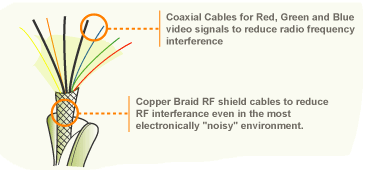

IOGEAR USB KVM Cable Diagram
IOGEAR USB KVM Cable Diagram

IOGEAR G2L5303U Features:

  • Innovative cable technology to minimize cross-talk and deliver superb video quality for your high resolution applications
  • Aluminum shield to eliminate EMI/RFI interference and ensure signal integrity and error-free transmission
  • Custom designed DB15 connector allows 16 ports on a 1U high space
  • Oversized ergonomic thumbscrews make installation quick and easy All-In-One bonded cable design eases connections, setups and cable management
  • Thin and flexible cable structure saves space and lowers carrying and storage cost UL rated materials used to ensure safety, corrosion resistance, and longevity of the cable

IOGEAR G2L5303U Specifications:

Length 10 ft. (3 m.)
Weight 0.75 lb. (0.3375 kg.)
CPU Connectors
Keyboard & Mouse 1 x USB Type A
Monitor 1 x HDB15
Audio 1
Microphone 1
Console Connectors
Audio 1
Keyboard, Mouse, and Monitor 1 x HDB15
Microphone 1
UPC / EAN Barcode icon
UPC 881317002822
EAN 0881317002822
Question: Will this cable work with the IOGEAR MiniView KVMP Switch GCS1804
Answer: Thank you for your inquiry,

It will indeed, the G2L530_U cables are natively compatible with the IOGEAR GCS1804.

You may also be interested in the 6ft (G2L5302U) or the 10ft (G2L5303U) versions.

Please let us know if there is anything else we can help you with!
