IOGEAR 16-Port VGA + USB/PS2 Combo KVM Switch with Cables

GCS16KIT

$729.95$579.99
Save $149.96
FREE Shipping on orders over $100

The IOGEAR GCS16KIT is a 16-Port USB PS/2 Combo KVM Switch with Cables which allows access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS16KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

The GCS16KIT includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS16KIT intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

IOGEAR GCS16KIT Features:

  • Multi platform OS support - Windows¨, Mac, Sun Solaris , and Linux
  • Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
  • Cascade up to 2 levels - control up to 256 computers from a single console
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals*
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B
  • Eliminates the excessive expense of additional monitors, keyboards and mice
  • Increases office space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy/efficient way to organize and streamline a growing or expanding server operation

*Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

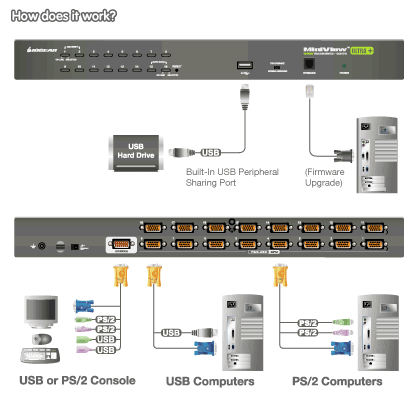

IOGear USB PS/2 Combo KVM Switch Application Diagram
IOGEAR USB PS/2 Combo KVM Switch Application Diagram

Requirements:

  • Console:

    • VGA, SVGA, or MultiSync Monitor
    • A Keyboard and Mouse (USB or PS/2)
  • Computers:
    • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
    • PS/2 mouse and keyboard ports (6-pin mini DIN) and at least 1 USB port
    • Multi platform OS support - Windows¨, Mac, Sun Solaris , and Linux
  • Recommended Cables:
    • G2L5202U / G2L5203U - USB KVM cable (6ft / 10ft)
    • G2L5202P/ G2L5203P - PS/2 KVM cable (6ft / 10ft)

Package Includes:

  • 1 x GCS1716
  • 8 x 2M USB KVM Cable (G2L5202U)
  • 1 x 2M PS/2 KVM Cable (G2L5202P)
  • 1 x Console Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Rack Mount Kit
  • 1 x Grounding Wire
  • 1 x Foot pad set (4 pads)
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card

IOGEAR GCS16KIT Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 17 in. (43 cm.)
Depth 6.25 in. (15.88 cm.)
Weight 6.02 lbs. (2.73 kg.)
Environmental
Operating Temperature 0~50C
Storage Temperature -20~60C
Humidity 0~80% RH, Non-condensing
Power
Voltage DC 5.3V
Amps 2.4A
Computer Connections
Direct 16
Daisy Chain or Cascading 256 (via Cascade)
Port Selection Hotkeys, OSD, Button
Connectors
Console 1 x SPHD-18 Male (Yellow)
Computer/KVM 16 x SPHD-15 Female (Yellow)
Power 1 x DC Jack
USB 1 x USB 1.1 Type A Female
Reset Switch 1 x Semi-Recessed Push Button
Switches
F/W Upgrade 1 x Slide Switch
Port Selection 16 x Push Button
Emulation
Keyboard PS/2, USB
Mouse PS/2, USB
Video Resolution VGA 2048x1536, DDC2B
Scan Interval 1-255 sec
Housing
Case Metal
UPC / EAN Barcode icon
UPC 881317503664
EAN 0881317503664
