IOGEAR MiniView 8-Port VGA PS/2 KVM Switch w/Cables
GCS138KIT
The IOGEAR MiniView Ultra GCS138KIT is an 8 port KVM switch which features built-in AutoScan mode that lets you conveniently monitor every attached computer for a specified amount of time, while IOGEAR's On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the MiniView Ultra is the perfect switch for your server room or any other multi-computer environment.

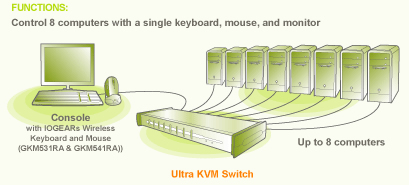

IOGEAR MiniView Ultra KVM Switch Function Diagram
IOGEAR MiniView GCS138KIT Features and Benefits:
- Use one keyboard, monitor and mouse to control 8 computers
- Control up to 512 computers by connecting multiple GCS138s together
- On Screen Display provides a convenient method for accessing the computers
- Slashes costs and space consumed by redundant keyboards, monitors, and mice
- Connected computers can be added or removed from the setup without disturbing the other computers
- Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
- Plug-n-Play monitor support. High-resolution video support (up to 1920 x 1440)
- Easy to install - no software required
- Built in AutoScan mode
- LEDs allow for easy status monitoring

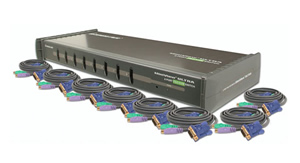

IOGEAR GCS138KIT Package Contents:
- 1 MiniView Ultra KVM switch
- 1 Power adapter
- 1 Rack mount kit
- 1 Installation manual
- 1 Quick start guide
- 1 Warranty registration card
- 4 KVM cables (6')(IOGEAR Part Number G2L5002P)
- 4 KVM cables (10')(IOGEAR Part Number G2L5003P)
IOGEAR MiniView GCS138KIT Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 17 in. (43.18 cm.) |
| Depth | 6 in. (15.24 cm.) |
| Weight | 7.8 lbs. (3.51 kg.) |
| Housing | |
| Case | Metal |
| Power | |
| Consumption | 400 mA(Max) |
| Amps | 3 00 mA(Max) |
| Voltage | DC 9V |
| CPU Connectors | |
| Mouse | 8x6 pin mini-DIN Female (PS/2) |
| Keyboard | 8x6 pin mini-DIN Female (PS/2) |
| Monitor | 8xHDDB15 Male |
| Console Connectors | |
| Mouse | 1x6 pin mini-DIN Female (PS/2) |
| Keyboard | 1x6 pin mini-DIN Female (PS/2) |
| Monitor | 1xHDDB15 Female |
| Computer Connections | |
| Direct | 8 |
| Daisy Chain or Cascading | 512 |
| LEDs | |
| On Line | 8 |
| Power On | 1 |
| Selected | 8 |
| Emulation | |
| Mouse | PS/2, Serial |
| Keyboard | PS/2, AT |
| Video Resolution | 1920x1440; DDC2B |
| Scan Interval | 3, 5, 10, 15, 20, 30, 40, 60 seconds |
| Port Selection | Push Buttons, Hot Keys, or OSD |
| Requirements | Computers with PS/2 or serial mouse* connections, PS/2 or AT keyboard** connections, and HDDB15 VGA connection |
| *Additional serial to PS/2 adapter required **Additional AT to PS/2 adapter required | |
UPC 881317000699
EAN 0881317000699
