Gefen HDMI/DVI to 3G-SDI Scaler

GEF-HDVI-2-3GSDIS

$1,599.00

Discontinued
Replaced by: Gefen EXT-HD-3G-C
Alternative options: Contact Us

The GefenPRO GEF-HDVI-2-3GSDIS 3GSDI Scaler for HDMI and DVI converts both HDMI and DVI to single-link or dual-link SDI / HD-SDI / 3GSDI formats. Resolutions can be scaled up to 1080p Full HD, 1920 x 1200, and 2K. Genlock frame synchronization and up to eight channels of audio are supported.

The GEF-HDVI-2-3GSDIS provides high-performance scaling plus adaptive video interlacing with edge interpolation, advanced noise reduction, alpha blending, image enhancement, and a fully-integrated menu system. It also supports SDI, ED-SDI, HD-SDI, and 3G-SDI SMPTE formats. The built-in S/PDIF coaxial output can be used to send digital audio to a separate A/V receiver.

The GEF-HDVI-2-3GSDIS 3GSDI Scaler for HDMI and DVI provides superior 3G-SDI video packaged in a single-rack mount 1U tall unit with an internal power supply.

How It Works

Use the included cables to connect up to two Hi-Def sources, one with an HDMI output and another with a DVI output, to the GEF-HDVI-2-3GSDIS 3GSDI Scaler. Two HDMI or two DVI sources can also be used by connecting HDMI-to-DVI or DVI-to-HDMI adaptors. Connect coaxial cables from the BNC video output connectors to downstream SDI equipment such as processors and displays. If synchronization between other SDI components is desired, use another coaxial cable to connect an external clock to the Genlock BNC connector. Connect a digital audio cable between the S/PDIF connector on the scaler and an A/V or audio receiver. To control the scaler using RS-232, connect an RS-232 cable between the scaler and the RS-232 automation device such as the Gefen EXT-PACS or GTB-MINI-PACS. Connect the included AC power cord to the scaler and an available electrical outlet. Apply power to the source, the display, any other associated equipment, and the scaler. Use the included IR remote to control the scaling features via the built-in on-screen menu system.

Gefen GEF-HDVI-2-3GSDIS Features:

  • Converts HDMI and DVI to all single-link or dual-link SDI formats
  • HDMI and DVI inputs switchable via IR, RS-232, and front panel
  • Input Resolutions up to 1080p Full HD, 1920 x 1200, and 2K
  • 10-bit Deep Color
  • LPCM 7.1, Dolby TrueHD, and DTS-HD¨ Master Audioª pass-through
  • Frame rate conversion
  • Supports black burst (bi-level sync) and tri-level sync Genlock
  • Advanced noise reduction and detail enhancement
  • Fully integrated sprite based multi-plane OSD menu system
  • Pattern generation of color bars and cross-hatch patterns
  • Four aspect ratio modes (Full Screen, Panoramic, Letter/Pillar, Extract/Crop)
  • Film Mode produces a progressively scanned output image from an interlaced scanned input image
  • Serial (RS-232) control for automation
  • Field-upgradeable firmware via USB port
  • 1U tall and rack-mountable rack ears included

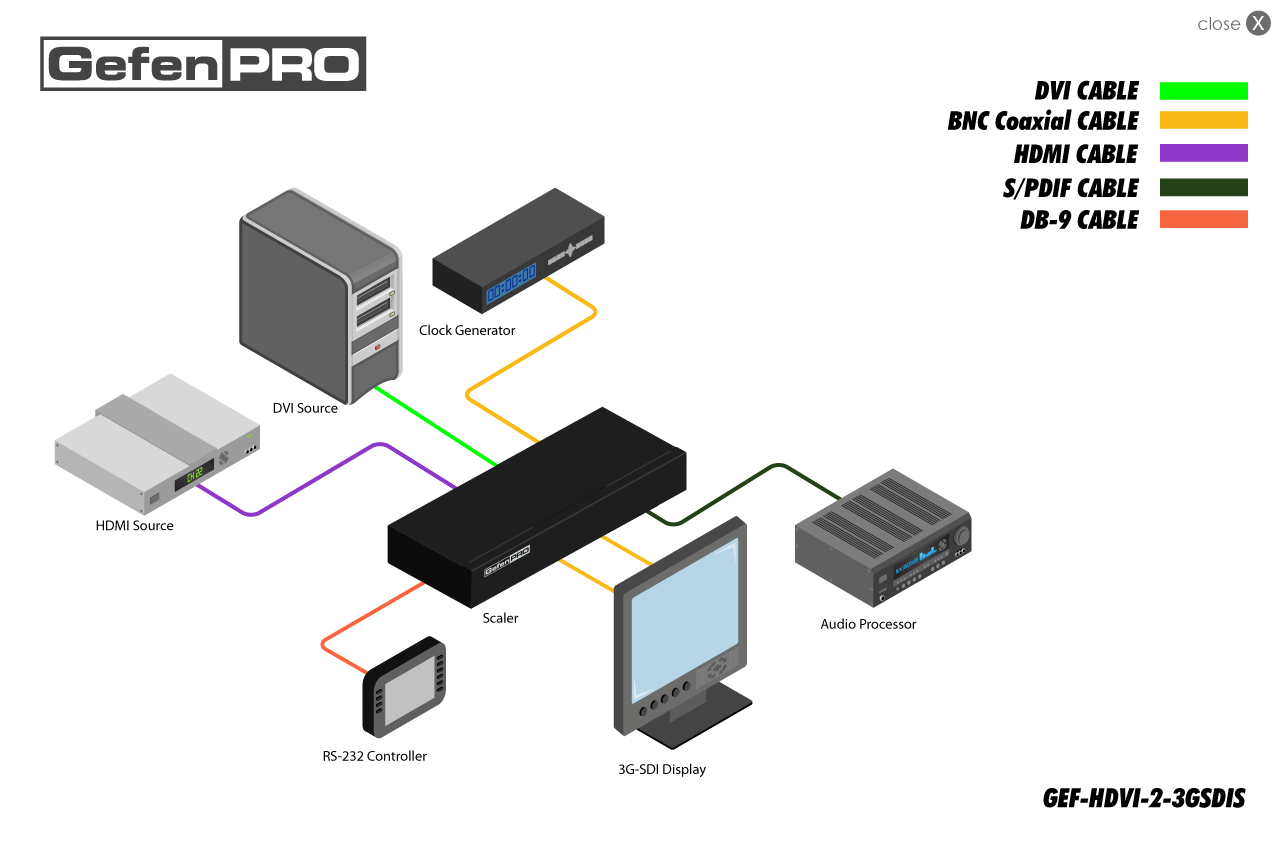

Gefen GEF-HDVI-2-3GSDIS Diagram
Gefen GEF-HDVI-2-3GSDIS VGA, USB, RS232, and 2-Way Audio Diagram

Gefen GEF-HDVI-2-3GSDIS Package Content:

  • 1 GEF-HDVI-2-3GSDIS HDMI and DVI to SGSDI Scaler
  • 1 6 ft. Dual Link DVI Cable (CAB-DVIC-DL-06MM)
  • 1 6 ft. Locking HDMI Cable (M-M) (CAB-HD-LCK-06MM)
  • 1 AC Power Cord (CAB-POWERCORD-XX)
  • 1 Rack Ears (EXT-RACK-19-BLK)
  • 1 IR Remote Control (RMT-8HDS-IRN)
  • 1 Quick Start Guide (QSG-GEF-HDVI-2-3GSDIS)

Video Specs:

  • Maximum Pixel Clock: 225 MHz
  • Output Video Bandwidth: 3.0 Gbps (max.)
  • Supported standards
    • SD-SDI (SMPTE 259M)
    • ED-SDI (SMPTE 344M)
    • HD-SDI (SMPTE 292M)
    • Dual-Link HD-SDI (SMPTE 372M)
    • 3G-SDI (SMPTE 424M/425M-AB)
  • Sync Reference Input Connector (Genlock): (1) BNC, female

Gefen GEF-HDVI-2-3GSDIS Specifications:

Mechanical
Without rack ears
Width
17 in. (432 mm.)
Height
1.73 in. (44 mm.)
Depth
7.7 in. (195 mm.)
Shipping Weight6.5 lbs (3 kg)
Connectors
Video Input1 x HDMI Type A 19-pin, female, locking;
1 x DVI 29-pin, female, digital only
Video Output2 x BNC, female
Audio1 x S/PDIF Coaxial (RCA female)
USB1 x USB 2.0 Type B, female
RS-232 Port1 x DB-9, female
IR Sensor1 on front panel
Power
Power Supply100 - 240V AC, 50/60 Hz (Internal)
Power Consumption20 W (max.)

This is the replacement for the GEF-HD-2-3GSDIS and the EXT-HDMI1.3-2-3GSDIS
