Dataprobe iPIO-2: Networked Relay Controller
Status and Control Screen Image
*Note:This screen image is an example, but it is the image for the Dataprobe iPIO-16.
The Status and Control web page provides real time status of the inputs, outputs and remote iPIO unit connections. The top of the page indicates the location reference, which is user settable.
Each input, output and remote device is defined by a user selectable name. Inputs and outputs can also be assigned names for Open and Closed statuses, as well as background and text colors for each. All configurations are accomplished via the setup tab at the top of the screen.
If the iPIO-2 is programmed to communicate with additional units, each remote unit will be displayed at the bottom of the page. Each remote site displays red or green, indicating connection status.

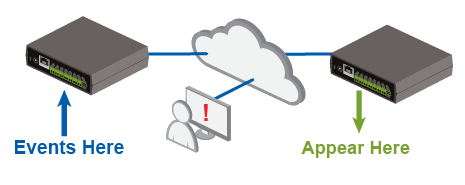

Dataprobe iPIO Application Diagrams
Dataprobe iPIO-2 Features:
- Web Browser Relay Control
- Ethernet I/O
- Transport GPIO over the Network
- Contact Closure via IP
- SSL and AES Encryption
- 2 Form C Relays
- 8 Digital Inputs - Wet or Dry
- One Input to Many Outputs
- Many Inputs to One Output
- Any to Any - Many to Many
Dataprobe iPIO-2 Specifications:
|Height||1.74 in. (4.4 cm.)|
|Width||5.63 in. (14.3 cm.)|
|Depth||3.03 in. (7.69 cm.)|
|Temperature||0 - 50 Deg C Operating|
|Humidity||90 Pct Non Condensing|
|Power|| Power over Ethernet (PoE) 4 Watts |
Optional 105 - 240 VAC 50/60Hz or +5VDC direct.
|Connections||2 Terminal per Input. (common ground) |
Three Terminal per Relay Output (Form C)
|LED Indictors|| 2 x Input. |
Network Link and Activity.
Remote Unit Link Status.
|Inputs|| 2 Digital Inputs. |
Dry relay/switch closures or
+/-3VDC to +/-30 VDC
|Current Maximums||0.5A @ 120VAC or 1A @ 24VDC|
|Switching Power||60VA Max 50uW Min|
|Switching Voltage||120VAC or 60VDC Max 1VDC Min|
|Switching Current||2A Max 1mA Min|
|Resistance||100 milliohms (initial value)|
|Operations||5 Million, mechanical. 100K at maximum load|
|Network||HTTP Web Server |
SSL Security - Optional
AES Encryption on Inter-device communication - Optional
DHCP Assigned or Static IP Address
Port Selectable for http, https and Inter-device communications
Inter Device Communications via TCP/IP Protocol, supplied.
