Slim DVI-D USB KVM Over IP Transmitter

KE6900ST

$693.72
Series: KE6900
  • KE6900
  • + Compare Family
Version: Transmitter (Slim)
Video Input: DVI-D
Power Method: Standard AC
FREE Shipping on orders over $100

The KE6900ST Slim DVI KVM over IP Extender is a compact and affordable transmitter which can be paired with any KE69x0R unit for a savings based solution that stays within budget. The KE6900 Single display Extender supports one DVI display at each end. KE Series Extenders give extended access to a computer from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over a network. As an IP-based matrix Extender, it can connect in many different ways, to fulfill different working environments, such as one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).

The KE Management Software (CCKM) provides KE Extenders with advanced features for username/password authentication, auto detection of all KE Series Extenders on the same subnet and the ability to define different types of connections that can be switched and shared. New security features also provide extra protection, supporting AES-128 bits encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of enhanced security.

Whether you're monitoring, operating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.

Aten KE6900ST Features

  • Remotely access computers on your KVM installation via intranet
  • Superior video quality - up to 1920 x 1200 @ 60 Hz; 24-bit color depth
  • DVI digital monitor support
  • OSD (On Screen Display) on the Receiver configures both units
  • Supports AP GUI operation
  • Remote login security
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Supports stereo speakers and stereo microphone
  • Auto-MDIX - automatically detects cable type
  • Support High-Quality Video streaming
  • Hot pluggable
  • Rack Mountable
  • Upgradeable firmware

For Mouse Emulation, a Local Console, Virtual USB Media, Audio, OSD, or VGA video, you may also be interested in the KE6900T standard DVI transmitter.

Aten KE6900ST Applications

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx models can also be connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

Aten KE6900ST Point-To-Point Extension Application Diagram

* Supported via the KE Matrix Management Software (CCKM)


Aten KE6900ST Package Contents

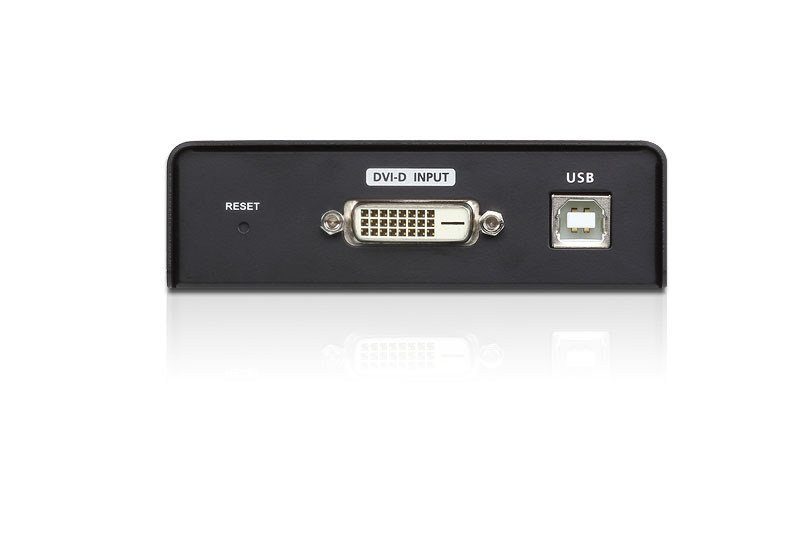

Aten KE6900ST Slim Back Rear

  • (1) KE6900ST DVI KVM Over IP Extender Slim Transmitter
  • (1) KVM Cable - DVI-D, USB, Audio; 1.8m/6ft
  • (1) Mounting Kit for KE6900T
  • (1) Power Adapter
  • (4) Foot Pads
  • (1) User Instructions
  • (1) 3-Year Warranty

Aten KE6900ST Specifications

Connectors
Console Ports1 x USB Type B Female (White)
1 x DVI-D Female (White)
1 x DB-9 Female (Black)
Power1 x DC Jack (Black)
LAN Ports1 x RJ-45 (Black)
Switches
Reset1 x Semi-recessed Pushbutton
LEDs
Link1 (Green / Orange)
Power1 (Blue)
Emulation
Keyboard & MouseUSB
Power ConsumptionDC5V - 3.35W - 15BTU
Video ResolutionUp to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature0 - 50ĄC
Storage Temperature-20 - 60ĄC
Humidity0-95% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.95 lb
(0.43 kg)
Dimensions (L x W x H)5.67 x 4.06 x 1.18 in.
(14.39 x 10.30 x 3.00 cm)
UPC / EAN Barcode icon
UPC 672792403750
EAN 0672792403750
