Aten 17" LCD Rackmount Console with Integrated 8-port KVM over IP



For upgrade or replacement options: Contact Us

The Aten KL9108M is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from multiple consoles. A single Aten KL9108M can control up to 8 computers and can be accessed from any computer on the Internet. The Aten KL9108M features independently retractable 17" LCD monitor and keyboard with built-in touchpad. To maximize space in your data center the keyboard "hides away" when not in use, while the thin profile LCD monitor provides continuous monitoring of computers.

Aten KL9108M Features:

  • Integrated KVM console with 17" LCD monitor - in a Hideaway™ housing
  • Space saving technology with dual bus function support - 1 remote console (one bus) and two local consoles (one bus) control up to 8 computers
  • Remotely access computers via the LAN, WAN, or Internet - control your installation when and where you want
  • Dual-bus: one local and one remote user can simultaneously control separate ports
  • Extra console port-manage computers in the LCD KVM switch from an external
  • console (monitor, PS/2 keyboard, and PS/2 mouse)
  • Supports external PS/2 mouse
  • Supports dedicated OSD and OSD Toolbar invocation keys
  • Dual slide-LCD Monitor component can slide independently of the keyboard/touchpad component
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • Internet browser access, Windows Client and Java Client provided, Java Client works with all operating systems
  • Graphical OSD and graphical toolbars for convenient, user-friendly operation
  • Up to 64 user accounts - up to 32 concurrent remote logins
  • Panel Array Mode - view all 8 ports at the same time
  • Message board feature allows logged in users to communicate with each other and allows a remote user to take exclusive control of the KVM functions
  • Windows-based Log Server
  • Remote power control for attached Power over the Net™ devices
  • Three level login security: Administrator, User, and Select
  • Advanced security features include password protection and advanced encryption technologies - 1024 bit RSA, 256 bit AES, 56 bit DES, and 128 bit SSL
  • RADIUS server support
  • Flash firmware upgradeable over network connection
  • Ports can be set to Exclusive, Occupy and Share
  • Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, auto sense, Ping.
  • High video resolution: up to 1280x 1024@ 75Hz (17" LCD); 1600 x1200@ 60Hz (Remote)

Aten KL9108M Package Contents:

  • 1x 8-Port Dual Rail LCD KVM Switch with Standard Rack Mount Kit
  • 2x Custom KVM Cable Sets
  • 1x Power Cord
  • 1x User Manual
  • 1x Quick Start Guide
  • 1x Registration Card

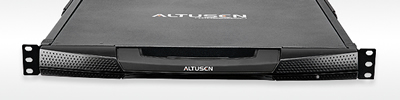

Aten 9108M Front Closed
Aten 9108M Front View Closed

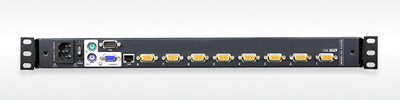

Aten 9108M Back
Aten 9108M Back View

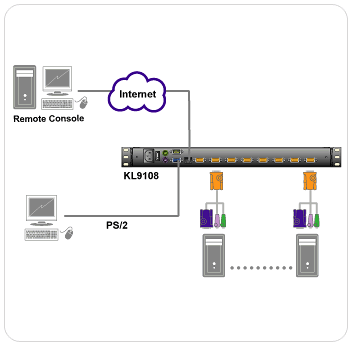

Aten 9108M Diagram
Aten 9108M Diagram


Aten 9108M Specifications:

Unit Dimensions

5.6 in (14 cm)

Height 32.6 in (82.7 cm)
Depth 26.4 in (67 cm)
Unit Weight 38 lb. (17.1 kg)
Package Weight

52.8 lb. (24.0 kg)

Storage Temperature -4F~140F (-20C ~ +60C)
Operating Temperature 32F~104F (0C ~ 40C)
Humidity Humidity 0 - 80% RH
Console Connectors
Mouse 1 x 6- pin Mini-DIN Female (Green)
Keyboard 1 x 6-pin Mini-DIN Female ( Purple)
Monitor 1 x VGA (HDDB-15) Female
Power On 1 x blue at front panel
Selected 8 (Orange)
On Line 8 (Green)
Station ID 2 digits 7 segment orange at keyboard pad module
Link 1 (Green)
10/100 Mbps 1 (Orange/Green)
Port Selection OSD, Hotkey, Push Buttom
Power Consumption 120V/31 W; 230V/39W
Video Resolution 17"-1280x1024; DDC2B/ Remote-1600x1200@ 60Hz;DDC2B
Scan Interval 1~255 Sec
Keyboard/Mouse PS/2
Computer Connections
Direct 8
Daisy Chain or Cascading 64 (via Cascade)
Ports Selection: 2 x Pushbutton
CPU Connectors
Keyboard, Mouse and Monitor 8 x SPHD-15 Female ( Yellow)
Mouse External Mouse:1 x 6-pin Mini-DIN Femaile (Green)
Power 1 x 3 Prong AC Socket
PON 1 x DB-9 male ( Black)
LAN 1 X RJ-45 Female (Black)
Console Connection 1 Local, 1 Remote
Power 1 x Rocker
Reset 1 x Semi-recessed Puchbutton
Power Input Rating
Per AC Power Inlet, 50/60Hz 1 00~ 240V AC, 1A
UPC / EAN Barcode icon
UPC 672792400506
EAN 0672792400506
Question: Is this unit exportable out of USA?

Thank you for your inquiry. It may be possible to export this item (depending on certain factors), but there are some requirements for an international order with KVM Switches Online. If after reading the requirements, you still wish to proceed, please give us a call.

International orders are accepted on a case-by-case basis with a $1000 minimum and a $100 transaction fee. Also, note that we would require pre-payment via PayPal or wire transfer and both have additional fees associated. In addition, we require the use of a 3rd party shipping account to bill all shipping charges, customs, duties and fees.

If you would like to proceed, please contact a KVM Switches Online sales representative at 1-877-586-6654.
