Aten 17" LCD Monitor with IP KVM and 16 Ports KVM Switch



For upgrade or replacement options: Contact Us

The Aten KL9116M is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from multiple consoles. A single KL9116 can control up to 16 computers and can be ccessed from any computer on the Net. The KL9116M features independently retractable 17" LCD monitor and keyboard with built-in touchpad. To maximize space in your data center the keyboard "hides away" when not in use, while the thin profile LCD monitor provides continuous monitoring of computers.

KL9116M Features:

  • Integrated KVM console with 17" LCD monitor - in a Hideaway housing

  • Space saving technology with dual bus function support - 1 remote console (one bus) and two local consoles (one bus) control up to 16 computers

  • Remotely access computers via the LAN, WAN, or Internet - control your installation when and where you want

  • Dual-bus: one local and one remote user can simultaneously control separate ports

  • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, PS/2 keyboard, and PS/2 mouse)

  • Supports external PS/2 mouse

  • Supports dedicated OSD and OSD Toolbar invocation keys

  • Dual slide - LCD Monitor component can slide independently of the keyboard/touchpad component

  • Console lock - enables the console drawer to remain securely locked away in position when not in use

  • Internet browser access, Windows Client and Java Client provided, Java Client works with all operating systems

  • Graphical OSD and graphical toolbars for convenient, user-friendly operation

  • Up to 64 user accounts - up to 32 concurrent remote logins

  • Panel Array Mode - view all 16 ports at the same time

  • Message board feature allows logged in users to communicate with each other and allows a remote user to take exclusive control of the KVM functions

  • Windows-based Log Server

  • Remote power control for attached Power over the Net devices

  • Three level login security: Administrator, User, and Select

  • Advanced security features include password protection and advanced encryption technologies - 1024 bit RSA, 256 bit AES, 56 bit DES, and 128 bit SSL

  • RADIUS server support

  • Flash firmware upgradable over network connection

  • Ports can be set to Exclusive, Occupy and Share

  • Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, auto sense, Ping.

  • High video resolution: up to 1280x 1024@ 75Hz (17" LCD); 1600 x1200@ 60Hz (Remote)

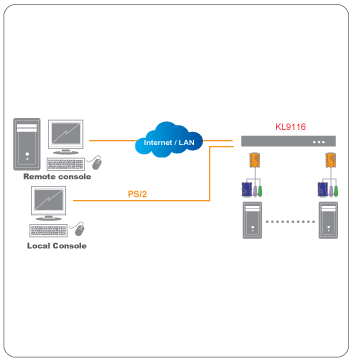

KL9116M Diagram

Aten KL9116M Requirements:

  • For Remote Computers:

    • For best results, computers that remotely access the KL9116M should have at least PIII GHz processor, with screen resolution set to 1024x748

    • For the Windows Client, you must have DirectX 7.0 or higher installed

    • For Java Client, you must have Sun's Java 2 (1.4 or higher) runtime environments installed

    • Browsers must be 128-bit encryption enabled

  • For computer Requirements:

  • The following equipment must be installed on the computers that connect to the KL9116M's CPU ports:

    • A VGA, SVGA or Multi-sync port

    • A 6-pin mini-DIN (PS/2) keyboard port

    • A 6-pin mini-DIN (PS/2) mouse port

    • Cables: 2L5202P (6 ft), additional sizes also available

  • Package Content:

    • 1 x KL9116M Hideaway™ 17" LCD KVM Switch with Standard Rack Mounting Kit

    • 2 x Custom PS/2 KVM Cable Set

    • 1 x upgrade Long Rack Mounting Kit

    • 1 x Power Cord

    • 1 x User Manual

    • 1 x Quick Start Guide

    • 1 x Registration Card

Aten KL9116M Specification :

Master Carton

Width 26.4 in. (67.0 cm)
Depth 32.6 in. (82.7 cm)
Height 5.5 in. (14.0 cm)

Power Input Rating


Per AC Power Inlet, 50/60Hz

100~ 240V AC, 1A




1 x Semi-recessed Pushbutton


1 x Rocker




1 x 3 Prong AC Socket


1 x DB-9 male ( Black)


External Mouse:1 x 6-pin Mini-DIN Femaile (Green)


1 X RJ-45 Female (Black)

Computer Connections


Daisy Chain or Cascading

128 (via Cascade)











10/100 Mbps

1 (Orange/Green)


16 ( Orange)

Station ID

2 digits 7 segment orange at keyboard pad module


1 (Green)

On Line

16 (green)

Power On

1 x blue at front panel

Console Connectors



1 xHDB-15 Female ( Blue)


1 x 6- pin Mini-DIN Female (Green)


1 x 6-pin Mini-DIN Female ( Purple)




AC 84V ~ 240V






Unit Pack Wt. 38.6 lb. (17.5 kg)
Master Carton Wt. 52.8 lb. (24 kg)

 Unit Dimensions

Height 1.7 in. (4.4 cm.), 1U
Width 19.0 in. (48.2 cm.)
Depth 27.8 in. (70.5 cm.)

CPU Connectors


Keyboard, Mouse, and Monitor

16 x SPHD-15 Female, (yellow)

Scan Interval

1~255 Sec

Console Connection

1 built-in, 1 additional


0 - 80% RH


2-level password security

Daisy Chain


Power Consumption


Operating Temperature

32F~122F (0C~50C)

Port Selection

OSD, Hotkey, Push Buttom

Storage Temperature

-4F~140F (-20C ~ +60C)


Selection : 2 x Pushbutton

UPC / EAN Barcode icon
UPC 672792400513
EAN 0672792400513
