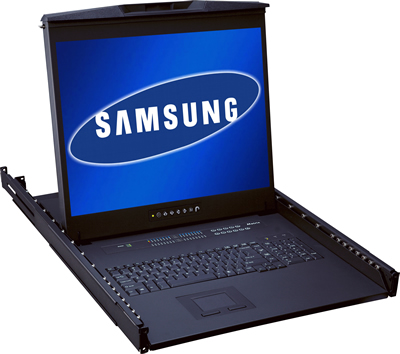

1U 20" Rack Mount Monitor Keyboard Drawer w/ 4-Console 16-PortIP KVM

L120-MIP1624

$3,627.00
FREE Shipping on orders over $100

The L120-MIP1624e is a 1U Rackmount LCD Monitor with 20" Samsung LCD with integrated 4-console (1 x local; 1 x remote; 2 x IP), 16 port Matrix Multi-User DB-15 IP KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse and includes 16 6ft Combo 4-in-1 KVM cables.

L120-MIP1624e Features & Benefits:

  • Ultra high resolution 1600 x 1200
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • 1U rackmount drawer with 20" LCD
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple keyboard language selections with 2 button touchpad module
  • Enhanced aesthetics with new molded front panel and two point lock

Matrix Multi-User DB-15 IP KVM Switch Features & Benefits:

  • Secure IP remote user access across the world wide web
  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Extended Cat6 cord remote access over 300M
  • Provide a diversity of consoles to access servers independently & simultaneously
  • Mix Legacy PS/2 servers with newer USB and SUN solutions
  • Greater distances between your switch and servers allow enhanced data centre rack layouts
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations

NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider RKP119 or S119 series.


L120-MIP1624e Rackmount LCD Diagram

L120-MIP1624e Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth 25.6 in. (650 mm.)
Weight 44 lbs. (20 kg.)
Samsung LCD Monitor
4:3 Screen Size 20"
Display Type Active Matrix TFT
Native Resolution 1600 x 1200
Brightness (cd/m2) 300
Contrast Ratio 800 : 1
Viewing Angle (H x V) 160 / 160
Display Color 16.7M
Response Time Tr=1 / Tf=4
Pixel Pitch (H x V) 0.255 / 0.255
KVM Switch
KVM Port 16 x DB-15 combo connector
KVM Dongle Combo 4-in-1 KVM cable Up to 6, 10 & 15 feet
(16 x 6ft cables included)
Simultaneous Console Access Local : 1 x DB-15 VGA (up to 1600 x 1200),
2 x USB for KB & MS
Remote ( 1, 2 or 3 ) : 1 x RJ45, up to 300 meters (1000 feet) Cat6 / Cat5 cable
IP Access ( 1 or 2 ) : 1 x RJ45 Ethernet, 1 x DB-9 serial &
1 x USB port
IP Security : SSL v3, RSA, AES, CSR, http & https internet access
15-user login ( 1 x active user )
Remote Receiver ( 1 or 2 )

1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
1 x KVM port for connecting an extra PC
Expansion Support mixed DB-15 or RJ45 Matrix KVM, up to 240 servers
Compatibility Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server
Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Power 100~240VAC, 50 / 60Hz 0.5A via AC / DC cord
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval FCC, CE
Cables Included 16 x CE-6 (Combo 4-in-1 KVM Cables)
