Avocent LongView LV1000P Cat5 PS2/VGA KVM Extender



Recommended replacement: Adder X2-GOLD/P
Alternative options: Contact Us

The Avocent LongView LV1000P Cat5 KVM Extender (LV1000P-001) extends a keyboard, monitor, mouse, speakers, microphone and serial port up to 1000 feet away from your computer or Avocent KVM switch. The system has a unique auto tuning feature that automatically compensates for both video skew and signal degradation over standard UTP cable without compromising the user experience. The Avocent LongView LV1000P Cat5 KVM Extender (LV1000P-001) supports video resolutions up to 1600 x 1200. The recommended resolution setting at 1000 ft. is 1280 x 1024.

Avocent LongView LV1000P Cat5 KVM Extender (LV1000P-001) Features and Benefits:

  • Automatic compensation of video skew delivers clear video up to 1000 feet away
  • Easily connects to PS/2 computers
  • Supports PS/2 and USB keyboard and mouse at the user station
  • The OSD gives easy access to configuration setup and system information
  • The single cable to user design simplifies installation and moves
  • The design supports connection to a second user up to 1000 feet away with an additional receiver
  • The mounting options allow for a clean and tidy user desk

Avocent LongView LV1000P Cat5 KVM Extender (LV1000P-001)

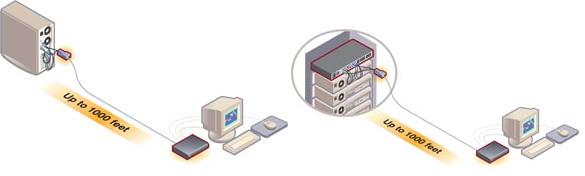

Avocent LongView LV1000P Cat5 KVM Extender (LV1000P-001) Function Diagram


Avocent LongView LV1000P Cat5 KVM Extender (LV1000P-001) Specifications:
Height 1.06 in (27 mm)
Width 8.27 in (210 mm)
Depth 7.6 in (193 mm)
Weight 2.2 lbs (1 Kg)
Operating Temperature 32 degrees F (0C) to 104 degrees F (40C)
Storage Temperature -4 degrees F (-20C) to 122 degrees F (50C)
Receiver Voltage
100 to 240 VAC

Transmitter Voltage

Computer Powered
50 - 60 Hz
Supported Hardware
Computers PS/2
Multi-Media Speakers & Microphone
Serial Devices
RS232 - 34,800 Baud
Peripherals PS/2 & USB
Approved Agency EN55022 Class A, EN55024, EN1000-3-2, EN6100-3-3, EN60950, FCC 47CFR Part 15 Class A, CSA C22.2 No. 60950, IEC 60950, FCC 15 Class A, UL 60950 third edition, VCCI Class A.
Question: im looking for a solution. to connect my gaming pc second floor to my full hd tv in the livingroom with support for vga audio usb end ps/2 so i can play in the living room without the pc in sight. distance approx 40 meters. can you provide me with info which cat5 extenders are useable?
Answer: Most of the KVM extenders that we offer in cat5 are either USB OR PS/2. One option would be to use an adapter at the remote end when you are using a PS/2 device such as https://www.kvm-switches-online.com/f5u119ve1.html. A good cat5 extender for your particular setup would be https://www.kvm-switches-online.com/x200as-usb-p-us.html. Please let us know if you have questions.

Question: need to use two remote with display and mouse with one pc
Answer: Thank you for your inquiry. We are not entirely sure what you are trying to accomplish. Please give us a call at 1-877-586-6654 to discuss your project further.

Question: Does this unit support DVI-D? Alternately, do you have any of the Avocent LVIP units for sale?
Answer: Thank you for your inquiry. Unfortunately this unit is analog and would not support DVI-D.

The LVIP has been set to End-of-Life, but there are two models of LVIP family that are still available and specifically support DVI-D: the single head LVIPHR https://www.kvm-switches-online.com/lviphr-001.html and the dual head LVIPDH https://www.kvm-switches-online.com/lvipdh-001.html.
