Avocent LongView LV1000R Cat5 KVM Extender

LV1000R-001

$890.00

Discontinued
Replaced by: Avocent LongView 3000
Recommended replacement: ADDERLink X-USB PRO
Alternative options: Contact Us

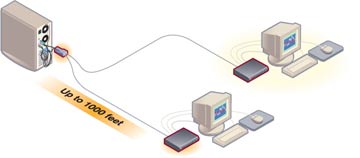

The addition of an LV1000R receiver unit allows you to add a second user to your LV1000P or LV1000U system up to 1000 feet away. By simply connecting a UTP cable between the Avocent LV1000R and the spare port on the receiver, your LV1000P/U system allows a second user to access the attached computer with the same features and benefits as the original including the unique AutoTuning feature. The Avocent LongView Extender (LV1000R-001) supports video resolutions up to 1600 x 1200. The recommended resolution setting at 1000 ft. is 1280 x 1024.

Avocent LongView LV1000R Cat5 KVM Extender (LV1000R-001) Features and Benefits:

  • Enables a second user to be connected up to a 1000 feet away
  • Automatic compensation of video skew delivers clear video up to 1000 feet away
  • Connection to USB and PS/2 computers
  • Connects to legacy Sun machines with AMIQDM-VSN transmitter
  • Supports PS/2 and USB keyboard and mouse at the user station
  • The OSD gives easy access to configuration setup and system information
  • The single cable to user design simplifies installation and moves
  • The design supports connection to a second user up to 1000 feet away with an additional receiver
  • The mounting options allow for a clean and tidy user desk

Avocent LongView LV1000R Cat5 KVM Extender (LV1000R-001)
Avocent LongView LV1000R Cat5 KVM Extender (LV1000R-001)



Avocent LongView LV1000R Cat5 KVM Extender (LV1000R-001) Specifications:

Mechanical
Height 1.06 in (27 mm)
Width 8.27 in (210 mm)
Depth 7.6 in (193 mm)
Weight 2.2 lbs (1 Kg)
Environmental
Operating Temperature 32 degrees F (0C) to 104 degrees F (40C)
Storage Temperature -4 degrees F (-20C) to 122 degrees F (50C)
Power
Receiver Voltage
100 to 240 VAC

Transmitter Voltage

N/A
Frequency
50 - 60 Hz
Supported Hardware
Computers PS/2 & USB
Multi-Media Speakers & Microphone
Serial Devices
RS232 - 34,800 Baud
Peripherals PS/2 & USB
Standards
Approved Agency EN55022 Class A, EN55024, EN1000-3-2, EN6100-3-3, EN60950, FCC 47CFR Part 15 Class A, CSA C22.2 No. 60950, IEC 60950, FCC 15 Class A, UL 60950 third edition, VCCI Class A.
Question: Can I just get the power supply only for this unit? My Longview is oaky, just the power supply has gone bad.
Answer: Thank you for your inquiry. You can find the replacement power supply for the Longview here: https://www.kvm-switches-online.com/psc0002.html.

Question: I want to order a Avocent LongView1000R( model: LV1000R SERIAL NO.:xxxxxxxxxx MPN:510-134-501 UID NO.:xxxxxxxxxxxxxxxx) for spare parts, Is there any difference with your product(Part # LV1000R-001)?
Answer: Thank you for your inquiry. The -001 at the end of the part number is simply a country specif code assigned by Avocent (-001 is for North America). Outside of that, this is a a brand new, unopened Avocent LongView1000R.

Question: Is this product TAA compliant?
Answer: Thank you for your inqury,

The Avocent LV1000R-001 is currently being manufactured in Romania - so it is unfortnately not TAA compliant. Since the LV1000R is part of the LongView series, there is no direct replacement that would be TAA compliant. We do however offer KVM extenders that are TAA compliant -

If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.

Question: What is the max current, operating current and power for this?
Answer: Thank you for your inquiry,

The Avocent LV1000R-001 supports 100-240V (50-60Hz) AC current with a maximum 25W AC-input power.

Please note that the LV1000R was recently discontinued and replaced by the newer LV3010P which supports 100-240V (50-60Hz) AC current with a 5V Input.

If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.

Question: I have a custom USB keyboard that requires 300 milliamp and 5V to operate. What is the USB power output for the LV 1000R model?
Answer: Thank you for your inquiry,

Unfortunately the detailed specifications for this discontinued product are no longer available. However we did find this old manual which mentions the following:

"LongView provides power to the keyboard which is connected to the LongView Receiver. LongView's power supply is able to supply enough current to power any normal keyboard. It is possible, however, that a very unusual keyboard may require more power than LongView can supply (see the Specifications chart in the Appendices). If your keyboard needs more current than LongView provides, contact [Avocent] Technical Support. Please note that many keyboards use much less current than what they specify on their product labels. For example, some keyboards have labels calling for 275mA, but in reality require only about 40mA."

In relation (Specifications chart in the Appendices), the manual also mentions that the power input is 24Vdc @ 500mA from 115Vac or 230Vac adapter.

If you would like more detailed information regarding the USB port on this unit, we would suggest contacting the manufacturer at support.avocent@vertivco.com.

Question: Someone have lost my Power reciever (2). Can I bought some somewhere? Thanx.
Answer: Thank you for your inquiry,

The part number for the power adapter suited for your longview LV1000R is PSC0002. However, we regret to inform you that the PSC0002 & the LV1000R have already reached the end of lifecycle without any left-over stock.

For a similar replacement, you may be interested in the Adder X-USBPRO KVM Extender.

Please let us know if there is anything else we can help you with!
