32-Port, Cat6 KVM w/ 3 Remote User

MU-3204

$1,686.00
Model: MU-3204
Ports: 32 Ports
Local Users: 1
IP Web Users: 0
Extended Users: 3 (up to 500ft away)
FREE Shipping on orders over $100

The MU-3204 is a 32-Port Matrix Multi-user Cat6 KVM Switch.  This matrix KVM switch features 4 consoles, 1 x local and 3 x remote.

MU-3204 Features & Benefits

  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Support HDMI, DisplayPort, DVI, VGA-USB and VGA-PS/2 server interface
  • Increased distance of 132ft (40m) between your server and KVM switch
  • Enhanced Cat6 cable management with remote access over 1000ft (300m).
  • Provides a diversity of consoles to access servers independently and simultaneously
  • Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations

CyberView MU-3204 Highlights

  • Cat5/6 KVM Receiver for CyberView MU-3204

    Integrated CATx extenders
    (3 Remote Users)

    The MU-3204 Cat6 Matrix KVM can be controlled by three users from up to 500ft (150m) away over CATx cable using the integrated CATx extenders with the included KVM receivers.

    • 1920 x 1200@60Hz (100ft)
    • 1920 x 1080@60Hz (150ft)
    • 1600 x 1200@60Hz (300ft)
    • 1280 x 1024@60Hz (500ft)
  • KVM Dongle for CyberView MU-3204

    VGA, DVI, HDMI & DisplayPort sources
    from up to 130 feet away

    MU-3204 supports any combination of VGA, DVI, HDMIDisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.

    Compare CAMs

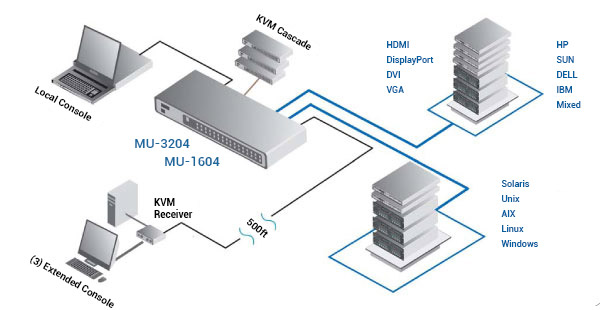

  • Austin Hughes CyberView MU-3204 multi-user diagram

    Multi-user access & management

    One local user and three extended users can control 32 multi-platform servers simultaneously. Expand up to 256 source computers simply by linking Cat6 Matrix KVMs.


  • Austin Hughes CyberView MU-3204 Multi-platform support

    Multi-platform support

    The CyberView Cat6 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

  • Austin Hughes CyberView MU-3204 Channel selection

    Channel selection options

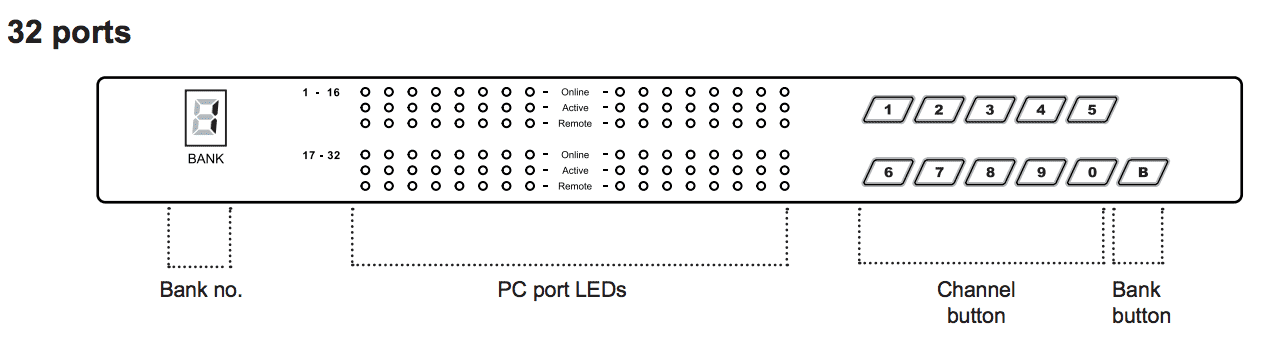

    The CyberView MU-3204 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

  • Austin Hughes CyberView MU-3204 Hot pluggable, no software or drivers required

    Hot pluggable, no software or drivers required

    Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.


  • Austin Hughes CyberView MU-3204 Cat6 Matrix Cascade cable

    Easy Expansion
    (Cascading Units)

    Expand up to 256 source computers simply by linking Cat6 Matrix KVM units using CMC-8 cables. The MU-3204 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of MU-1602 / MU-3202 or M-802 / M-1602 KVM switches.

  • Austin Hughes CyberView MU-3204 DC Power

    AC power OR Optional DC power

    CyberView MU-3204 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.

  • Austin Hughes CyberView MU-3204 Rack Mounted

    1U rack mount OR Integrate into rack drawer

    CyberView MU-3204 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.

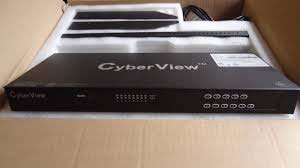

MU-3204 Package Contents

Austin Hughes CyberView MU-3204 Package Contents

  • (1) MU-3204 KVM Switch
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM
    Note, DC power excludes AC power cord.
  • (3) KVM receiver for extended console
  • (3) Power adapter w/ US power cord - for receiver
  • (3) CB-6 6ft VGA USB KVM cable - for receiver
  • (1) 2-Year manufacturer warranty
  • *Please note, package contents may change with unit 'options'.

MU-3204 Resources

Austin Hughes CyberView MU-3204 Resources MU-3204 Datasheet (PDF)
MU-3204 Manual (PDF)

MU-3204 Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (443 mm.)
Depth6.7 in. (171 mm.)
Weight6.5 lbs. (3 kg.)
Environmental
Operating/Storage Temperature0 to 55°C / -20 to 60°C
Relative Humidity20-90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz / 1G RMS random vibration
Power100~240VAC, 50/60Hz 0.5A via AC / DC cord
KVM

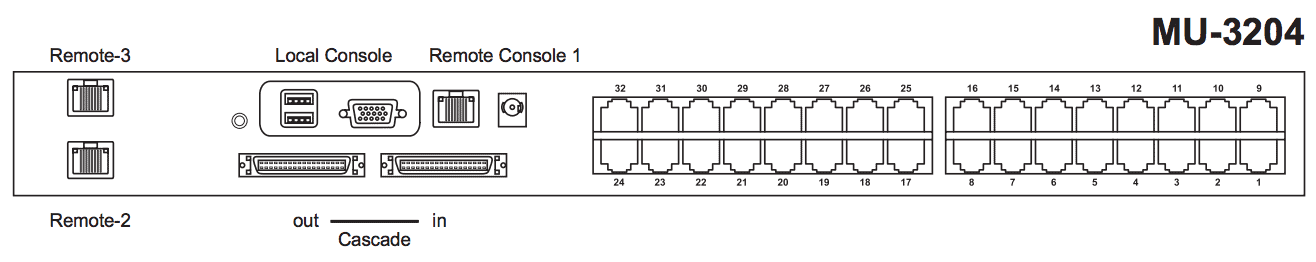

Ports32 x RJ45 connector
KVM DongleDVI-D / VGA connector dongle up to 132 ft. Cat6/Cat5 cable
Simultaneous Console Access
Local1 x DB-15 VGA (up to 1600 x 1200), 2 x USB to KB & MS
Remote (3)3 x RJ45, up to 1000 ft. Cat6 cable
Remote Receiver (3)1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
1 x KVM port for connecting to an extra PC
ExpansionSupport mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility
HardwareMix PCs, SUNs, MACs, IBMs, HPs, DELLs servers
Operating SystemsWindows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS
Regulatory ApprovalcUL, FCC, CE, RoHS2, REACH
