1 Local/1 Remote Combo Cat6 32-Port KVM

U-3202

$821.00
Model: U-3202
Ports: 32 Ports
Local Users: 1
IP Web Users: 0
Extended Users: 1 (up to 500ft away)
FREE Shipping on orders over $100

The U-3202 is a 32-Port Combo Cat6 KVM Switch. This combo KVM switch features 2 consoles, 1 x local and 1 x remote.

32-Port Combo Cat6 2-console KVM Benefits

  • Combo Cat6 KVM with 32 ports in 1U
  • Up to 131 feet (40 m) between your servers & KVM ports
  • Remote access up to 492 feet (150 m)
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Support HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface
  • Mix PS/2, USB & SUN with Multi-Platform switch capability

Switch Features & Options

  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover

CyberView U-3202 Highlights

  • Cat5/6 KVM Receiver for CyberView U-3202

    Integrated CATx extender
    (1 Remote Users)

    The U-3202 Cat6 Combo KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

    • 1920 x 1200@60Hz (100ft)
    • 1920 x 1080@60Hz (150ft)
    • 1600 x 1200@60Hz (300ft)
    • 1280 x 1024@60Hz (500ft)
  • KVM Dongle for CyberView U-3202

    VGA, DVI, HDMI & DisplayPort sources
    from up to 130 feet away

    U-3202 supports any combination of VGA, DVI, HDMIDisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.

    Compare CAMs

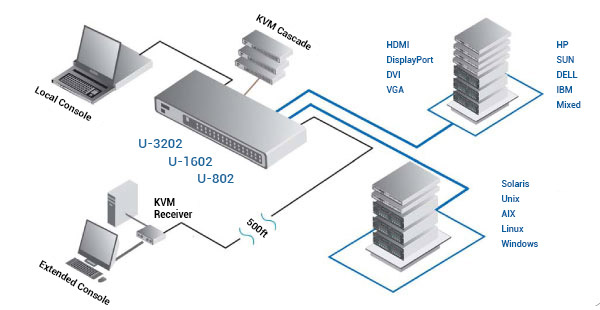

  • Austin Hughes CyberView U-3202 multi-user diagram

    Multi-user access & management

    One local user or one extended user can control 32 multi-platform servers. Expand up to 256 source computers simply by linking Cat6 Combo KVMs.


  • Austin Hughes CyberView U-3202 Multi-platform support

    Multi-platform support

    The CyberView Cat6 Combo KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

  • Austin Hughes CyberView U-3202 Channel selection

    Channel selection options

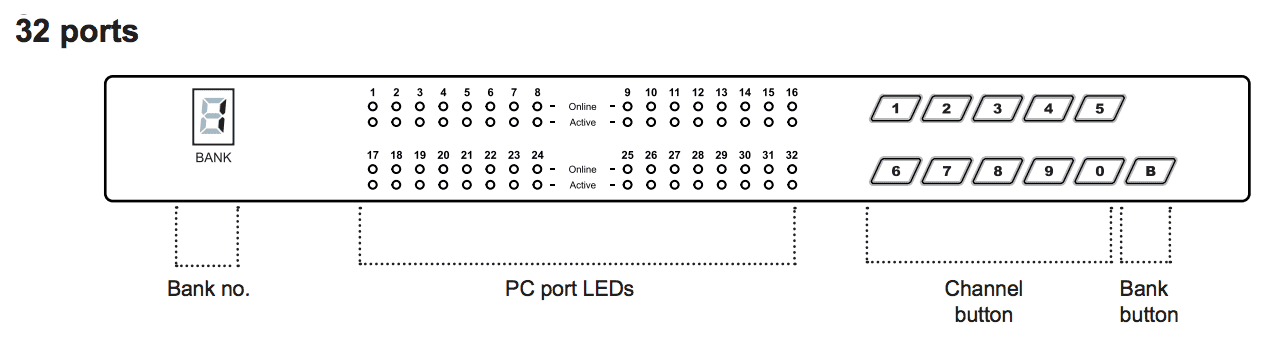

    The CyberView U-3202 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

  • Austin Hughes CyberView U-3202 Hot pluggable, no software or drivers required

    Hot pluggable, no software or drivers required

    Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.


  • Austin Hughes CyberView U-3202 Cat6 Combo Cascade cable

    Easy Expansion
    (Cascading Units)

    Expand up to 256 source computers simply by linking Cat6 Combo KVM units using CBC-6 cables. The U-3202 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of U-801 / U-1601 / U-3201 KVM switches.

  • Austin Hughes CyberView U-3202 DC Power or Dual-AC redundant power

    Redundant AC OR Optional DC power

    For mission critical applications, Cat6 Combo series now supports dual power inlets (Dual-AC). If one source fails, the U-3202 will switch sources so as not to interrupt normal use of the connected servers. Alternatively, customers can also get DC power input integrated into the KVM.

  • Austin Hughes CyberView U-3202 Rack Mounted

    1U rack mount OR Integrate into rack drawer

    CyberView U-3202 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.


U-3202 Package Contents

Austin Hughes CyberView U-3202 Package Contents

  • (1) U-3202 KVM Switch
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM
    Note, DC power excludes AC power cord.
  • (1) KVM receiver for extended console
  • (1) Power adapter w/ US power cord - for receiver
  • (1) CB-6 6ft VGA USB KVM cable - for receiver
  • (1) 2-Year manufacturer warranty
  • *Please note, package contents may change with unit 'options'.

U-3202 Resources

Austin Hughes CyberView U-3202 Resources U-3202 Datasheet (PDF)
U-3202 Manual (PDF)

U-3202 Specifications

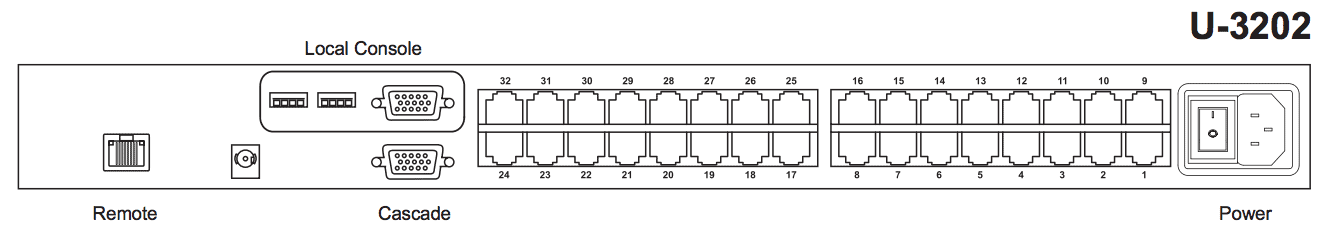

KVM Port
Number of ports32
ConnectorRJ-45
ConnectivityDVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local Console
Monitor Port1 x DB-15 VGA (Up to 1600 x 1200)
Keyboard/Mouse2 x USB type A connector for keyboard & mouse
Resolution Support4:3 - max. 1600 x 1200
16:10 - max. 1440 x 900
Remote Console
Number Of Remote Ports1
Monitor Port1 x DB 15-pin, VGA (Up to 1600 x 1200)
Keyboard/Mouse Port2 x USB type connector for keyboard & mouse
Remote I/OJ45 via Cat5 / Cat5e / Cat6 cable up to 150m
ExpansionUp to 256 servers by 8-level cascade
Compatibility
Multi-platformMix PCs, SUN and Mac G3 / G4 Mac / iMac
SupportWindows 7 / Vista / 2003 / XP, Linux, Unix
Power
InputAuto sensing 100 to 240VAC, 50 / 60 Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
Regulatory
SafetyUL, FCC & CE certified
EnviromentRoHS2 & REACH compliant
Mechanical
Height 1.73 in. (4.4 cm.)
Width 17.4 in. (44.3 cm.)
Depth6.7 in. (17.1 cm.)
Weight6.5 lbs. (3.0 kg.)
Package Dimensions (HxWxD)19.7 x 15.7 x 3.5 inch
(500 x 400 x 90 mm)
Package Weight11.0 lbs. (5.0 kg.)
Environmental
Operating Temperature0 to 50°C Degree
Storage Temperature-5 to 60°C Degree
Relative Humidity90%, non-condensing
Shock 50G acceleration (11ms, half sine wave)
Vibration8~100Hz / 0.98G (11ms / cycle)

U-3202 KVM Hot Key Sequences

FunctionHot Key Sequence
Calling OSD Menu[Scr Lock] [Scr Lock] [Space Bar]
Right Mouse + [Esc]
Previous Port[Scr Lock] [Scr Lock] [Up]
Next Port[Scr Lock] [Scr Lock] [Down]
Previous/Next Bank[Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port[Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off[Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On)[Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode[Scr Lock] [Scr Lock] [S]
Reset Factory Defualts[Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security[Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving[Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port[Scr Lock] [Scr Lock] [C]
Buzzer On/Off[Scr Lock] [Scr Lock] [Q]
AutoScan Mode[Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal[Scr Lock] [Scr Lock] [A]

U-3202 is also known as:

  • U3202
