1U 17" Rack Mount Monitor Console Terminal Keyboard Drawer with Samsung TFT LCD
NCP-1701
The NCP-1701 is a 1U Console terminal LCD Rackmount Keyboard Drawer with 17" Samsung LCD and Keyboard.
Rackmount Console Terminal Backside
NCP-1701 Rackmount LCD Features:
- Designed for SUN, and all other leading brands of headless servers
- Install and configure RS-232 devices across the network
- 104 key notepad keyboard with full numerical pad
- Secure Remote IP access using SSH or telnet clients
- 1U rackmount drawer with a 17" SAMSUNG LCD
- Single or 'One Man' installation slides for easy, quick installation
- Multiple keyboard language selections
- Slide rails with fixed positions to prevent drawer movement when typing
- Optional mounting hardware for two post telco style racks

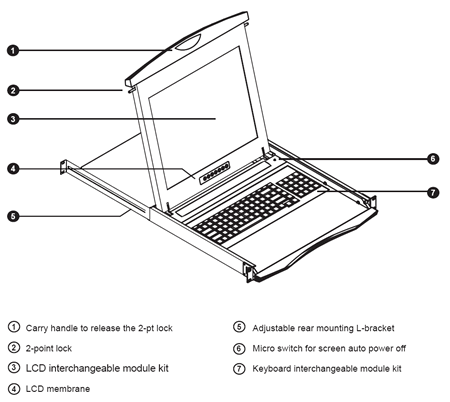

Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Package Dimensions | 6.6 x 23.2 x 33.7 in. (168 x 589 x 856 mm.) |
| Net Weight | 35 lbs. (16 kg.) |
| Gross Weight | 48 lbs. (22 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -10° to 50°C Degree |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11ms, half-sine wave) |
| Vibration | 58~100Hz / 0.98G (11min / cycle) |
| Power | |
| Input | 100~240VAC, 50 to 60Hz IEC type cord |
| Consumption | Max. 40 Watt |
| Local Console | |
| LCD Display | Samsung 17" LCD, 800 x 600 |
| Brightness | 300cd / m2 |
| Input device | 104-key keyboard with Num-pad |
| Terminal Emulations | |
| Emulation | WY-60, WY-120, WY-50+, WY-325, ADDS A2, PCG, Alpha-60, TV1910, TV1925, PC TERM, VT52, VT100, VT220, Console ANSI |
| Serial Port | |
| Number of ports | 1 |
| Connectivity | RS-232, Rx, Tx, RTS, DTR, DSR |
| Flow control | None, RTS / CTS, Xon / Xoff |
| Compatibility | SUN Solaris, IBM RS / 6000 AIX, SCO Unix, Xenix, PC-based headless server, router, terminal server, firewall & switch |
| Ethernet Port | 10BasetT, RJ45 |
| Regulatory Approval | FCC, CE |
Question: how to connect with ethernet port or how to test port is working
Answer: Thank you for your inquiry. Ethernet setup for this unit is beyond the scope of this simple FAQ. However, a copy of the manual can be downloaded from this location: http://www.42u.com/pdf/NCP1701-0807V1.pdf.
