1U 17" Terminal LCD Keyboard Drawer w/ 16-port SSH Secure Console Switch
NCP-1716
The NCP-1716 is a 1U Console terminal LCD Rackmount Keyboard Drawer with 17" Samsung LCD, Keyboard with trackball or touch-pad mouse and integrated 16 port SSH secure console switch.
Rackmount Console Terminal Backside
NCP-1716 Rackmount LCD Features:
- Designed for SUN, and all other leading brands of headless servers
- Install and configure RS-232 devices across the network
- 104 key notepad keyboard with full numerical pad
- Secure Remote IP access using SSH or telnet clients
- 1U rackmount drawer with a 17" SAMSUNG LCD
- Single or "One Man" installation slides for easy, quick installation
- Multiple keyboard language selections with either touchpad or trackball
- Slide rails with fixed positions to prevent drawer movement when typing
- Optional mounting hardware for two post telco style racks

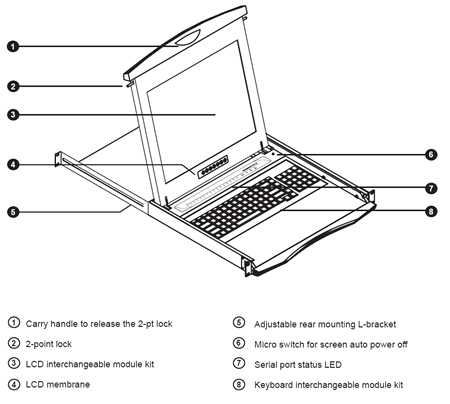

Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Package Dimensions | 6.6 x 23.2 x 33.7 in. (168 x 589 x 856 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 35 lbs. (16 kg.) |
| Gross Weight | 48 lbs. (22 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -10° to 50°C Degree |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11ms, half-sine wave) |
| Vibration | 58~100Hz / 0.98G (11min / cycle) |
| Power | |
| Input | 100~240VAC, 50 to 60Hz IEC type cord |
| Consumption | Max. 40 Watt |
| Local Console | |
| LCD Display | Samsung 17" LCD, 800 x 600 |
| Brightness | 300cd / m2 |
| Input device | 104-key keyboard with Num-pad |
| Terminal Emulations | |
| Emulation | WY-60, WY-120, WY-50+, WY-325, ADDS A2, PCG, Alpha-60, TV1910, TV1925, PC TERM, VT52, VT100, VT220, Console ANSI |
| Serial Interface | |
| Number of port | 16-port |
| Connector | RJ45 |
| Signal | Serial RS-232 Rx, Tx, RTS, DTR, DSR |
| Flow | None, RTS / CTS, Xon / Xoff |
| Baudrate | 300 to 115200 |
| Mode | Console, terminal server, modem dial-in, power controller |
| LAN Interface | |
| Port | 1 x RJ45 |
| Type | IEEE802.3 - 10/100BaseT, auto-detecting |
| Mode | Full / half-duplex selectable |
| Ethernet Port | 10BasetT, RJ45 |
| Compatibility | SUN Solaris, IBM RS / 6000 AIX, SCO Unix, Xenix, PC-based headless server, router, terminal server, firewall & switch |
| Regulatory Approvals | FCC, CE |
