RALOY 1U 17" Rackmount LCD Monitor, PS/2 Touchpad



Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

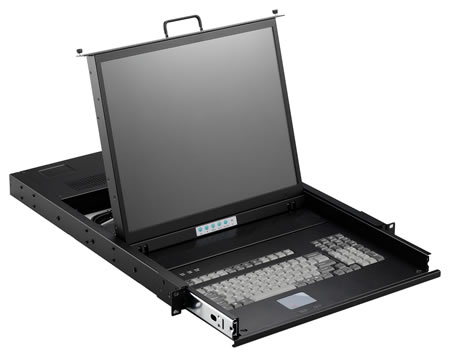

1U 17" Rackmount LCD Monitor (RA17)
This Raloy 1U slim industrial monitor keyboard (RA17) is the solution for reducing more computing power into limited space. This revolutionary monitor and keyboard combines a spectacular display coupled with a keyboard with built-in pointing device into a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation leaves ample space for other critical components. With built-in analog-to-digital conversion board, the unit can be connected to any standard VGA graphics card for immediate on-screen display. With built-in analog-to-digital conversion board, the RA17 can be connected to any standard VGA graphics card for immediate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19" rackmount cabinet.

Features and Benefits:

  • 17" ultra bright/contrast TFT screen
  • Meets EIA-310C & IEC-3 specifications
  • Supports PS/2 keyboard/mouse interface
  • Self locking rails
  • Industrial metal
  • Available in black
  • 105-key keyboard w/built-in touch pad
  • Keyboard available in multiple languages
  • 17.1" TFT 1280 x 1024
  • Anti-glare tempered glass for added protection to the LCD screen
  • Built-in side railing for instant installation
  • Movable front panel provides additional comfort during data entry
  • Optional DC power supply
  • Warranty - 24 months parts & labor
  • No refunds or exchange after 7 days from receipt
  • 30% restocking fee for all non-defective returns
  • Returns for refund or credit with missing manuals; disk or accessories will be refused.
  • An advance replacement shall be sent for defective returns for units purchased less than 30 days from the current date
  • Defective units that were purchased more than 30 days for the current date must be returned for repair.


Dimensions (W x H x D)17.42 in. x 1.75 in. x 23.63 in.
44.24 cm x 4.44 cm x 60.02 cm
ConstructionHeavy-Duty Steel
Weight31 lbs. (14.06 kg)
LCD Size/ Resolution17" or 1280 x 1024
Brightness300 nits
Backlight MTBF50K Hrs
Supply60W, 100-240VAC, 50/60Hz
Operating Temperature0-50° C (32-122°F)
Supported Hardware
Keyboard/Mouse InterfacePS2
ComplianceCE, FCC, RoHS

Learn more about Raloy Rack Console and Rackmount LCD Drawer products at www.Raloy.com
Question: one of the monitor hinges broke out of the drawer do how do i fix it?
Answer: Thank you for your inquiry. For detailed product support please contact the manufacturer directly at http://www.raloy.com/support/raloy-support.html

Question: Are there any KVM switches designed to work with this unit?
Answer: Thank you for your inquiry,

The RA17 was designed to work with any KVM switch with VGA / PS2 user ports (i.e the 8-port CyberView CV-801, or the 16-port CV-1602). Most rack mount KVM switches can be mounted directly behind the unit into 1U (assuming you have enough depth in your rack).
