NTI Rackmount 20" 1RU USB + PS/2 KVM Drawer

RACKMUX-D20-N

$1,350.00

Discontinued
Recommended replacement: Raloy RWX119
Alternative options: Contact Us

The NTI RACKMUX-D20-N DVI USB + PS/2 KVM Drawer combines a rackmount 20 in. LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

NTI RACKMUX-D20-N Features and Benefits:

  • 20 in. (508 mm) Active Matrix LCD flat panel DVI monitor.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 105°
  • Compatible with USB and PS/2 computers.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Rugged steel construction with durable powder coat finish.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.

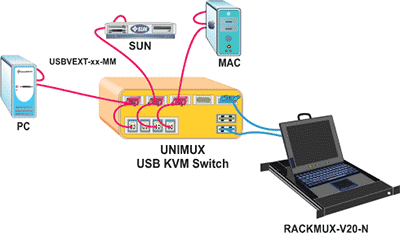

NTI RACKMUX-D20-N Diagram
NTI RACKMUX DVI USB+PS/2 Drawer and UNIMUX KVM (Not Included) Drawer Diagram
(RACKMUX-V20-N depicted here)

NTI RACKMUX-D20-N Package Content:

  • 1 RACKMUX-D20-N Drawer with DVI Video Support
  • USB-AB-2M 2m USB Type A to USB Type B Male-to-Male
  • VVKINT-6-MM 6 ft. PS/2 Cable (for mouse & keyboard)
  • DVI-DS-2M-MM 2m DVI video cable
  • 2 Keys for Lock
  • 2 Rear Mounting Brackets with nuts
  • 8 #10-32x3/4" screws and cage nuts for mounting rack
  • IEC Power Cord
  • CD with a PDF file of owner's manual and installation guide

NTI RACKMUX-D20-N Specifications:

Mechanical
Width19 in. (483 mm)
Height1.75 in. (44 mm)
Depth30.1 in. (765 mm)
Weight38.4 lbs.. (17 kg.)
Environmental
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 - 140°F (-20 to 60°C)
Operating Humidity20 to 90% non-condensing RH
Host Interface
CompatibilityPS/2, UNIX, and USB computers
Connectors1 x DVI-I; 1 x USB Type B;
2 x 6-pin miniDIN
Monitor
TypeActive matrix anti-glare TFT LCD 20.1 in.
flat panel DVI; front-folding
Resolution1600 x 1200
TiltUp to 105°
FrequencyHorizontal: 40-80 KHz; Vertical: 59-61 KHz
Brightness300 nits
Contrast Ratio800:1
Protocol SupportDDC1 and DDC2B
Devices
Keyboard Available100-key (US) keyboard with numeric keypad
MouseThree-button touchpad
USB ConnectorsFront panel USB 1.1 port (for external USB devices)
Regulatory ApprovalsCE, RoHS
Question: NTI RACKMUX-D20-N is discontinued. what is an upgrade model for 20"?
Answer: Thank you for your inquiry,

The recommended replacement for the RACKMUX-D20-N is the CyberView 20" L120 or the Raloy 19" RWX119, which both have a variety of video, audio, and power options - the RWX119 also offers a variety of integrated KVM Switches.

If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative.
