NTI Rackmount 17" KVM Drawer with Mouse and USB 2x8 Matrix KVM Switch

RACKMUX-V17-MP-2X8U

$2,665.00

Discontinued
Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

The NTI RACKMUX-V17-MP-2X8U KVM Drawer with Real Mouse and Built-In USB 2-user by 8-port Matrix KVM Switch combines a rackmount LCD monitor, keyboard, real mouse and a USB Matrix KVM switch in a space-saving 1RU industrial strength drawer.

NTI RACKMUX-V17-MP-PRIMUX Features and Benefits:
  • Backward-folding 17" TFT/LCD VGA monitor.
  • Crisp and clear 1280x1024 video resolution.
  • Two users can control up to eight USB-enabled computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Keyboard available in: English(US).
    • 83-key (US) keyboard.

RACKMUX-V17-MP-2X8U Backview

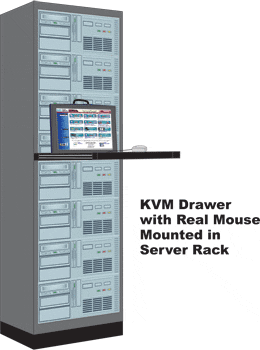

NTI Rackmount KVM Drawer with Real Mouse Mounted in Server Rack

NTI RACKMUX-V17-MP-2X8U Specifications:

MechanicalKVM Drawer and Switch
Width19 in.
Height1.75 in.
Depth36.6 in.
Weight37.4 lbs.
Environmental
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 - 140°F (-20 to 60°C)
Operating Humidity20 to 90% non-condensing RH
Power110 to 220VAC, 50/60Hz via AC adapter
Host Interface
CompatibilityPS/2, UNIX, and USB computers
Connectors5 ft. attached cables with 1 x 15-pin HD,
2 x 6-pin miniDIN, 1 x USB Type A
Monitor
TypeActive matrix LCD flat panel VGA; backward-folding
Resolution1280 x 1024
OSD ControlsBrightness, contrast, phase, pitch, Horz- and Vert-
center alignment, zoom, and color adjustment
FrequencyHorizontal: 31-80 KHz; Vertical: 60-85 KHz
Brightness300 nits
Contrast Ratio500:1
Protocol SupportDDC1 and DDC2B
Devices
Keyboard Available83-key (US)
MouseThree-button optical mouse
USB ConnectorsFront panel USB 1.1 port (for external USB devices)
Regulatory ApprovalsCE, RoHS

NTI PRIMUX-UZR Unit

NTI UNIMUX-2X8-U KVM Switch

NTI UNIMUX-2X8-U (included KVM Switch) Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 19 in. (48.26 cm.)
Depth10 in. (25.4 cm.)
Weight5 Lbs. (2.27 kg.)
Power
Supply110 or 220 VAC at 50 or 60 Hz via AC adapte
Consumption10W
Monitor
Resolution1900x1200
ConnectorsTwo Female 15-pin HD connectors
Bandwidth150 MHz
CablesCables not included.
MTBF60,070 hrs.
Regulatory ApprovalsCE
