NTI 17 inch Rackmount KVM Drawer with Real Mouse and 8-port SUN/PC VGA KVM Switch
RACKMUX-V17-MP-8UNV
The NTI RACKMUX-V17-MP-8UNV KVM Drawer with Real Mouse with Built-In 8-port SUN PC KVM Switch combines a LCD monitor, keyboard, real mouse with mouse pocket, and an 8-port SUN PC switch in a space-saving 1RU industrial strength drawer.
NTI RACKMUX-V17-MP-8UNV Features and Benefits:- Available with backward-folding 17 in. (432 mm) TFT panel active matrix LCD display monitor.
- 1280x1024 video resolution for 17 in. (432 mm) monitor.
- Control up to eight legacy PC or SUN computers.
- Connect a USB PC or SUN using a USB-PS2 or USB-SUN adapter.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- High density KVM drawer - fits in 24 in. (610 mm) in rack.
- Compact, heavy-duty tactile keyboard.
- LCD auto-shutoff in closed position.
- Drawer locks into place when open to prevent it from sliding out of the rack.
- Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
- Keyboard available in: English(US).

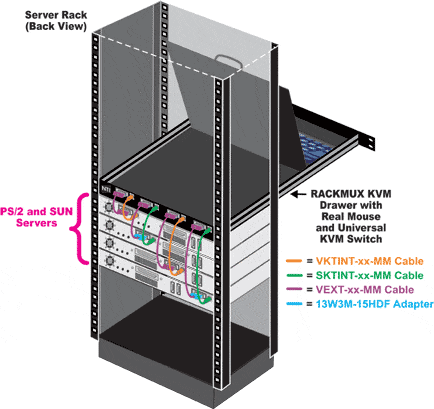

NTI Rackmount KVM Drawer with Real Mouse and SUN/PC VGA KVM Backview
NTI RACKMUX-V17-MP-8UNV Specifications:
| Mechanical | |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 35.5 in. |
| Weight | 37.4 lbs. |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Power | 110 to 220VAC, 50/60Hz via AC adapter |
| Host Interface | |
| Compatibility | PS/2, UNIX, and USB computers |
| Connectors | 5 ft. attached cables with 1 x 15-pin HD, 2 x 6-pin miniDIN, 1 x USB Type A |
| Monitor | |
| Type | Active matrix LCD flat panel VGA; backward-folding |
| Resolution | 1280 x 1024 |
| OSD Controls | Brightness, contrast, phase, pitch, Horz- and Vert- center alignment, zoom, and color adjustment |
| Frequency | Horizontal: 31-80 KHz; Vertical: 60-85 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 500:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 83-key (US) |
| Mouse | Three-button optical mouse |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Regulatory Approvals | CE, RoHS |

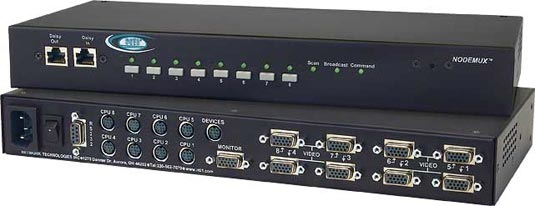

NTI NODEMUX 8-port KVM Switch
NTI NODEMUX ST-8UO (included 8-port KVM Switch) Specifications:
| Mechanical | |
| Width | 13.3 in. |
| Height | 1.75 in. |
| Depth | 5.9 in. |
| Environmental | |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Storage Temperature | -20 - 140°F (-30 to 60°C) |
| Operating Humidity | 17 to 90% non-condensing RH |
| Power | 110V or 220VAC @ 50/60Hz via IEC connector |
| Hosts | |
| Connectors | 8 x 15-pin HD; 8 x 8-pin miniDIN |
| Compatibility | Legacy PS/2 and SUN computers |
| Monitor | |
| Resolution | Maximum 1900 x 1200 |
| Connectors | 15-pin HD |
| Monitor Type | Multiscan VGA required; 150 MHz bandwidth |
| Devices | |
| Connectors | 8-pin miniDIN |
| Compatibility | PS/2 or SUN |
| Peripherals | Hot pluggable |
| Regulatory Approvals | CE, RoHS |
