NTI Rackmount 17" KVM Drawer with Mouse and KVM Switch via CAT5



Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

The NTI RACKMUX-V17-MP-PRIMUX KVM Drawer with Built-In KVM Switch via CAT5 combines a rackmount LCD monitor, keyboard, real mouse in mouse pocket, and the NTI PRIMUX Zero-U KVM Switch via CAT5 into a space-saving 1RU industrial strength drawer.

NTI RACKMUX-V17-MP-PRIMUX Features and Benefits:
  • Control up to 64 servers from 1,000 feet away through one built-in user console.
    • One platform-specific (PS2, SUN or USB) HA-x host adapter is required for each computer.
  • Provides a simple daisy-chained wiring configuration.
  • Interconnect multiple servers at different locations throughout a building. Servers can be of the same or differing platforms (PS/2, SUN, or USB).
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in: English (US).
    • 83-key (US) keyboard.

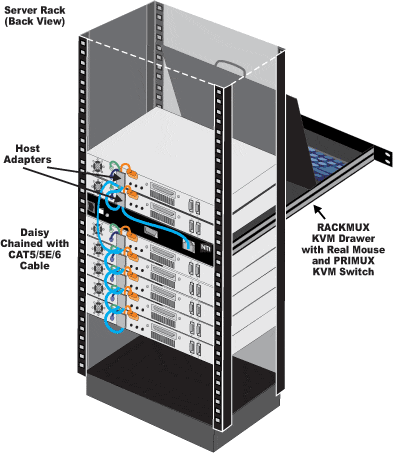

NTI Rackmount KVM Drawer with Real Mouse and KVM Switch via CAT5 Backview

 NTI RACKMUX-V17-MP-PRIMUX Specifications:

MechanicalKVM Drawer and Switch
Width19 in.
Height1.75 in.
Depth35.5 in.
Weight37.4 lbs.
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 - 140°F (-20 to 60°C)
Operating Humidity20 to 90% non-condensing RH
Power110 to 220VAC, 50/60Hz via AC adapter
Host Interface
CompatibilityPS/2, UNIX, and USB computers
Connectors5 ft. attached cables with 1 x 15-pin HD,
2 x 6-pin miniDIN, 1 x USB Type A
TypeActive matrix LCD flat panel VGA; backward-folding
Resolution1280 x 1024
OSD ControlsBrightness, contrast, phase, pitch, Horz- and Vert-
center alignment, zoom, and color adjustment
FrequencyHorizontal: 31-80 KHz; Vertical: 60-85 KHz
Brightness300 nits
Contrast Ratio500:1
Protocol SupportDDC1 and DDC2B
Keyboard Available83-key (US)
MouseThree-button optical mouse
USB ConnectorsFront panel USB 1.1 port (for external USB devices)
Regulatory ApprovalsCE, RoHS

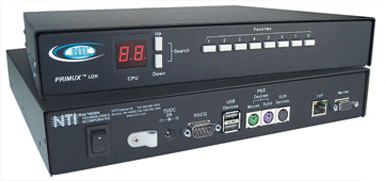

NTI PRIMUX-UZR KVM Solution (included KVM Switch) Specifications:

Height1.75 in. (4.45 cm.)
Width 11 in. (27.94 cm.)
Depth11 in. (27.94 cm.)
ConnectorFemale 15-pin HD connector
ResolutionMaximum 1024x768 video resolution at 1,000 feet; higher resolutions are supported at shorter distances.
Connectors2 x USB Type A; 2 x 6-pin miniDIN
Host Adapters
HostsMaximum 64 host computers can be dasiy-chaned
HA-PS21 x 15-pin HD, 2 x 6-pin minDIN;
Compatible with legacy PS/2 VGA computers
HA-SUN1 x 15-pin HD, 2 x 6-pin miniDIN;
Compatible with legacy SUN VGA computers
HA-USB1 x 15-pin HD, 1 x USB Type A;
Compatible with USB VGA computers
HA-RS1 x RJ45 serial port connector;
Compatible with most serial devices with R232 port
Regulatory ApprovalsRoHS
