The NTI RACKMUX-V17-N-2X8-USBHDU USB KVM Drawer with Built-in 2-user by 8-port High Density USB KVM Matrix Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a high density VGA USB KVM matrix switch in a space-saving 1RU industrial strength drawer.

NTI RACKMUX-V17-N-2X8-USBHDU Features and Benefits:
  • Forward-folding 17" TFT/LCD VGA monitor.
    • 1280x1024 video resolution.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Available with a 2x8, 2x16 or 4x8 VGA USB KVM matrix switch.
    • Multiple users can individually command or simultaneously share up to 16 USB computers.
  • Additional USB port for each user to connect an external USB device, such as a CAC card reader or flash drive.
    • Additional USB device must be the same for each user.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with large padded wrist-rest.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • Available with Sunlight Readable monitor - call an NTI Product Consultant for more information.

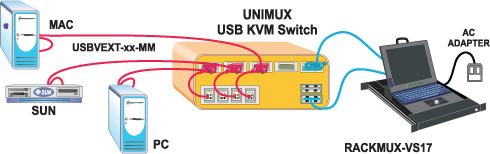

NTI Rackmount KVM Drawer with UNIMUX KVM Switch Diagram

NTI RACKMUX-V17-N-2X8-USBHDU Specifications:

MechanicalKVM Drawer and Switch
Width19 in.
Height1.75 in.
Depth 23.9 in.
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 - 140°F (-20 to 60°C)
Operating Humidity20 to 90% non-condensing RH
Power110 to 220VAC, 50/60Hz via AC adapter
Host Interface
CompatibilityPS/2, UNIX, and USB computers
Connectors5 ft. attached cables with 1 x 15-pin HD,
2 x 6-pin miniDIN, 1 x USB Type A
TypeActive matrix LCD flat panel VGA; backward-folding
Resolution1280 x 1024
OSD ControlsBrightness, contrast, phase, pitch, Horz- and Vert-
center alignment, zoom, and color adjustment
FrequencyHorizontal: 31-80 KHz; Vertical: 60-85 KHz
Brightness300 nits
Contrast Ratio500:1
Protocol SupportDDC1 and DDC2B
Keyboard Available83-key (US)
MouseThree-button optical mouse
USB ConnectorsFront panel USB 1.1 port (for external USB devices)
Regulatory ApprovalsCE, RoHS

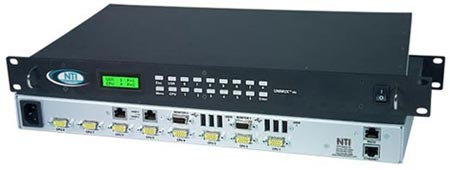

NTI UNIMUX-2X8-UHDU (included KVM Switch) Specifications:

Width19.0 in. (48.2 cm.)
Height1.75 in. (4.45 cm.)
Depth10.0 in. (25.4 cm.)
Video Connectorsfemale 15HD-black
Video Resolution1900x1200 (max.)
Video SupportSVGA, XGA, VGA, most DVI monitors (when used with NTI DVIF-15HDM adapter)
Video Bandwidth150 MHz
USER Keyboard/Mouse connectorsfemale USB Type A
Mouse and Keyboard Compatibilitymost USB mice and keyboards
CPU connectorsfemale 15HD-yellow (high density)
CPUs supportedWindows USB, SUN USB, MAC USB
RS232 Connector & Ethernet Connectorfemale RJ45
Power required110 or 220 VAC @ 50-60 Hz at less than 25 watts
Fuse Protection2A, 240 VAC
Regulatory ApprovalCE, ROHS
