NTI Rackmount 20" LCD KVM Drawer with 8-port SUN PC KVM Switch
RACKMUX-V20-N-8UNV
The NTI RACKMUX-V20-N-8UNV KVM Drawer with Built-In SUN PC KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and an 8-port SUN PC KVM switch in a space-saving 1RU industrial strength drawer.
NTI RACKMUX-V20-N-8UNV Features and Benefits:
- Available with forward-folding TFT/LCD VGA monitor.
- 1600x1200 video resolution
- Control up to eight PC or SUN computers.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Designed to be a one-person job when installing the drawer.
- Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
- LCD auto-shutoff in closed position.
- Drawer locks into place when open to prevent it from sliding out of the rack.
- Keyboard available in: English(US).

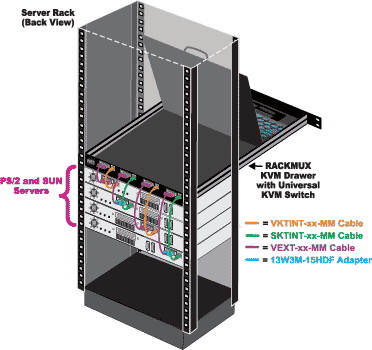

NTI RACKMUX LCD KVM Drawer Diagram
NTI RACKMUX-V20-N-8UNV Specifications:
| Mechanical | |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 30.1 in. |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Host Interface | |
| Compatibility | PS/2, UNIX, and USB computers |
| Connectors | 1 x 15-pin HD; 1 x USB Type B; 2 x 6-pin miniDIN |
| Monitor | |
| Type | Active matrix TFT LCD 20.1 in. flat panel VGA |
| Resolution | 1600 x 1200 |
| Tilt | Up to 105° |
| Frequency | Horizontal: 40-80 KHz; Vertical: 59-61 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 800:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 100-key (US) keyboard with numeric keypad |
| Mouse | Three-button touchpad |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Cables Included | 6 ft. 15-pin HD VGA M-M; 6 ft. USB Type A to USB Type B M-M; 6 ft. dual 6-pin miniDIN M-M; 6 ft. power supply cable |
| Power | |
| Power Consumption | 100V-240VAC @ 50/60Hz via IEC connector |
| Regulatory Approvals | CE, RoHS |

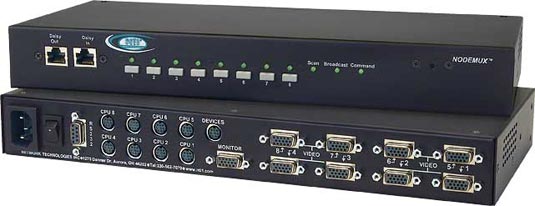

NTI NODEMUX ST-8UO KVM Switch
NTI NODEMUX ST-8UO (Included KVM Switch) Specifications:
| Mechanical | |
| Width | 13.3 in. |
| Height | 1.75 in. |
| Depth | 5.9 in. |
| Environmental | |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Storage Temperature | -20 - 140°F (-30 to 60°C) |
| Operating Humidity | 17 to 90% non-condensing RH |
| Power | 110V or 220VAC @ 50/60Hz via IEC connector |
| Hosts | |
| Connectors | 8 x 15-pin HD; 8 x 8-pin miniDIN |
| Compatibility | Legacy PS/2 and SUN computers |
| Monitor | |
| Resolution | Maximum 1900 x 1200 |
| Connectors | 15-pin HD |
| Monitor Type | Multiscan VGA required; 150 MHz bandwidth |
| Devices | |
| Connectors | 8-pin miniDIN |
| Compatibility | PS/2 or SUN |
| Peripherals | Hot pluggable |
| Regulatory Approvals | CE, RoHS |
