1U 17" Rack Mount Monitor Keyboard Drawer w/ 8-Port IP KVM Switch


Save $292.00
FREE Shipping on orders over $100

The RKP117-IP802 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

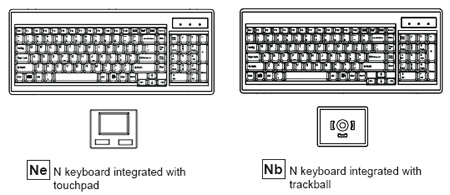

The available keyboard options for the RKP117-IP802 are:

Keyboard Options

RKP117-IP802 Features:

  • 1U 17" TFT LCD screen
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm and 500mm respectively
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • 2 post rack mounting available

Advanced Features with KVM:

  • Cascade for use up to 128 servers.
  • Name servers up to 16 characters long.
  • High Video Quality - Up To 1600x1200
  • Support eight characters password protection and search PC server name.
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.

RKP117-IP802 Specifications:

Height 1.75 in. (4.44 cm.)
Width 17.4 in. (44.2 cm.)
Depth18.1 in. (45.97 cm.)
Weight26 lbs. (12 kgs)
Package Dimensions
(H x W x D)
5.5 x 23.2 x 31.8 in.
(13.9 x 58.9 x 80.77 cm.)
Package Weight36.5 lbs. (16.6 kgs)
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 40 Watt, Standby 5 Watt
LCD Display
Diagonal Size17" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)250
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)338 x 270
Signal InputVGA
Plug & Play DDCEDID 1.3
Console Port (Combo)4-in-1 DB-15 KVM connector for VGA / keyboard /mouse
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Regulation ApprovalFCC, CE
Question: Our Engineer's have spec'd this in with an E @ the end. What does that mean? RKP117-IP802E
Answer: Thank you for your inquiry. The E at the end is the designation for a unit with the touchpad instead of the trackball. For the RKP117-IP802E, select the E Option under Keyboard option before adding to your cart.
