The RKP119 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

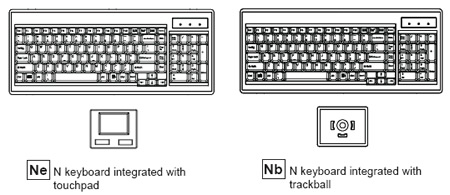

The following keyboard options are available:
- 1U 19" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- Short depth design of 460mm and 500mm respectively
- New enhanced aesthetics with molded front handle
- Front USB port for device access (USB Hub KVM only)
- 2 post rack mounting available
Advanced Features with KVM:
- Cascade for use up to 128 servers.
- Name servers up to 16 characters long.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin DB connector at switch side.
|Height||1.73 in. (44 mm.)|
|Width||17.4 in. (441.6 mm.)|
|Depth||19.7 in. (500 mm.)|
|Weight||27.9 lbs. (12.7 kg.)|
(H x W x D)
|5.5 x 23.2 x 31.8 in.|
(140 x 590 x 808 mm.)
|Package Weight||38.1 lbs. (17.3 kg.)|
|Operating temperature||0 to 50°C Degree|
|Storage temperature||-5 to 60°C Degree|
|Relative humidity||5~90%, non-condensing 10G acceleration ( 11 ms duration)|
|Shock||5~500Hz 1G RMS random vibration|
|Vibration||Adjustable ranges from 15.3" to 35.2" (390 to 895mm)|
|Contrast Ratio (typ)||1000:1|
|Viewing Angle (H/V)||170° x 160°|
|Active area (mm)||376x301|
|Integrated KVM Switch|
|Connector||DB-15 combo connector|
|Connectivity||Combo 4-in-1 KVM cable, up to 6, 10, & 15 feet|
|Local Console||LCD console drawer version (up to 1920x1080/ 1920x1200)|
|IP Remote Console|
|User management||15-user login, 1x active user|
|Resolution||Up to 1600x1200|
|Expansion||Up to 128 servers by 8-level cascade|
|Compatibility||Mix PCs, SUN and Mac G3 / G4 Mac / iMac|
