1U 17" Rack Mount Monitor Keyboard Drawer Compact Keyboard with Samsung TFT LCD
RKP-1617d
The RKP-1617 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide efficeive assistant for an administrator to control PC system.

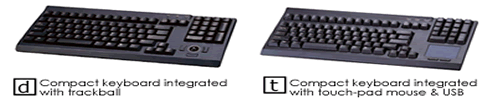

The keyboard options for the RKP-1617 are:
RKP-1617 Features:
- 1U 17" TFT LCD screen
- Two keyboard selections "d" and "t" support multiple languages
- Lock out rail to prevent movement of the keyboard
- Adjustable mounting brackets from 390 to 900 mm
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
RKP-1617 Specifications:
| Mechanicall | |
| Height | 1.75 in. (4.44 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 25.6 in. (65 cm.) |
| Weight | 37 lbs. (17 kg.) |
| Package Dimensions (H x W x D) | 7.1 x 23.6 x 33 in. (18 x 60 x 84 cm.) |
| Package Weight | 53 lbs. (24 kg.) |
| General | |
| 1U rack mounting on slide-out rails, 17-key numeric keypad | |
| Colorr | Black |
| Compatibility | Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs |
| Server-side Interface | HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS |
| Adjustable ranges from 15.3" to 37.2" (390 to 945 mm) | |
| Environmental | |
| Operating temperature | 0 to 50 Degree Celsius |
| Storage temperature | -25 to 65 Degree Celsius |
| Relative Humidity | 90%, non condensing |
| Shock | 50G peak acceleration (11ms, half since wave) |
| Vibration | 58~500Hz/ 0.98G (11min/ cycle) |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A) |
| LCD Screen | |
| LCD Manufacturer | Samsung |
| LCD Origin | South Korea |
| Display Size | |
| LCD Typee | Samsung grade A industrial TFT LCD Panel |
| 1,280 x 1,024 with 60 / 70 / 75Hz | |
| Display colorr | 16.2 M |
| 300 cd/m2 | |
| Contrast Ratio | 500:1 |
| Response Time | TR=3/ Tf=10 ms |
| Pixel Pitch | 0.264 (H) x 0.264 (V) mm |
| Viewing Angle | 75/ 75/ 75/ 65 (L/R/U/D) |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position,, Auto-tune, Recall & Language |
| Signal Input | VGA, Analog RGB |
| Option Video Input | S-video & Composite |
| LCD MTBF | 50,000 hrs |
Question: Hello, is that an dual line prduct or is the monitor and the keyboard connected? How far can one pull out the monitor out of the 19" rack? Is a german keyboard possible? Is there an DVI option?
Answer: Thank you for your inquiry. The keyboard and monitor for this LCD drawer are attached and require a proprietary cable. Looking at the diagram it appears this drawer will extend approximately 650 mm from the install rails. According to our materials, this unit only comes in an American style Keyboard.
Answer: Thank you for your inquiry. The keyboard and monitor for this LCD drawer are attached and require a proprietary cable. Looking at the diagram it appears this drawer will extend approximately 650 mm from the install rails. According to our materials, this unit only comes in an American style Keyboard.
