2U 17" Rack Mount Monitor Keyboard Drawer with Samsung TFT LCD



Recommended replacement: Raloy RD119
Alternative options: Contact Us

The AH RKP-217 is a 17" 2U Rackmount TFT Samsung LCD Monitor Keyboard Drawer.  The RKP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

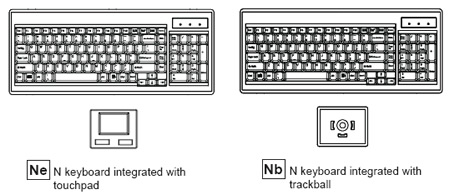

The following keyboard options are available for the AH RKP-217:

Keyboard Options

AH RKP-217 Features

  • Unique mechanical design to maximize rack mountable space.
  • Slide away flip-up monitor.
  • Front-access lock for security.
  • Optional video input on units without KVM options
  • Adjustable mounting brackets from 390mm to 790mm. (front to rear 19" mounts)
  • May be fitted into an 800mm deep rack by the use of extended brackets on request.
  • Black anodized aluminum front panel
  • Compact keyboard with trackball supporting multiple languages.
  • Built-in on screen display controlled by integral membrane switches
  • Standard D-sub 15-pin VGA input connector
  • Lock out rails to prevent movement of the keyboard
  • Supplied with 12V 5A remote power adapter (single power source)
  • Rear rackmount bracket included.

AH RKP-217 Specifications

PanelSamsung 17" LCD Panel
Screen TypeTFT
Display Area337.92(H) x 270.34(V) mm
Contrast Ratio500 : 1
Viewing Angle140 ° (H) x 120 ° (V) (Typ.)
Resolution1280 x 1024
Pixel pitch0.264(H) x 0.264(W) mm
Response TimeTr=5ms, Tf=20ms (Typ.)
Brightness300 cd/m2
Panel Color16.2M
Back Light4 CCFTs
(Cold Cathode Fluorescent tube)
Horizontal Synchronization64 - 80 KHz (Typ.)
Vertical Synchronization60-75 Hz (Typ.)
Input SignalAnalog RGB 0.7Vp-p
Power ManagementVESA DPMS
OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save
External Connection
Power Input12V/5A DC adapter
Video Input15-pin D-Sub connector
Product dimension43.9(W) x 4.45(H) x 60(D)cm
Packing dimension73.5(L) x 57.5(W) x 18(H)cm
Net / gross weight
27.55 lb / 42.99 lb
12.5 kg / 19.5 kg
