2U 19" Rack Mount Monitor Keyboard Drawer w/ 2-Console 16-Port IP KVM Switch


Replaced by: Cyberview RKP2419-IP1602
Alternative options: Contact Us

The Cyberview RKP219-IP1602 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.

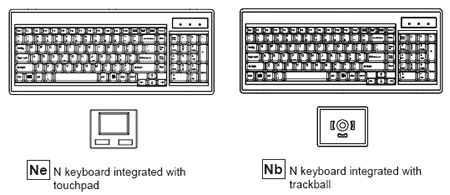

The following keyboard options are available for the RKP219-IP1602:

Keyboard Options

Cyberview RKP219-IP1602 Features:

  • 2U 19" TFT LCD screen
  • Allow viewing through closed glass cabinet door
  • Multiple keyboard language selections with either touchpad or trackball
  • Adjustable mounting brackets from 390 to 845 mm
  • Slide rails have fixed position to prevent movement of the keyboard & screen
  • (16) 6' KVM cables included
  • All mounting hardware included
  • 12, 24, 48-Volt DC power supply options

Product Dimensions (HxWxD)3.5 x 17.4 x 23.6 in. (8.8 x 44.2 x 60 cm.)
Package Dimensions (HxWxD)8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.)
PC port16
Remote Console connectorRJ45 8P8C
Remote Console Port1
Serial port1
Local Console Port-
PC SelectionOSD
LED1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red)
On screen display controlYes
Scan Intervals5~99sec
Keyboard and mouse emulationPS/2
VGA Resolution (Max.)Local: 1600x1200
Remote: 1280x1024
Cascade Level8 levels
PC Connection120/128
Remote Web-based accessInternet, LAN/WAN, or dial up modem
KVM Switch Power AdapterDC 12V
