RALOY 1U 19" Rackmount Keyboard Drawer with Samsung TFT LCD Monitor

RN119

$1,080.00

Discontinued
Replaced by: Raloy RNX119
Alternative options: Contact Us

See KVM Integration Options:
     8 or 16-port Combo KVM Switch
     8 or 16-port IP KVM Switch
     8, 16 or 32-port CAT6 / CAT5 KVM Switch

The Raloy RN119 is a 1U rack console featuring a 19" Samsung LCD monitor. The keyboard is a 104 key notepad available in 13 international languages, with the option of a mini trackball or touchpad mouse. This unit includes one 6ft combo 4-in-1 KVM cable designed specifically for the Raloy Series (Product ID: RCE-6). This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the monitor with built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back when finished.

The following keyboard options are available for you to choose from (make sure to select one from the drop down menu above):

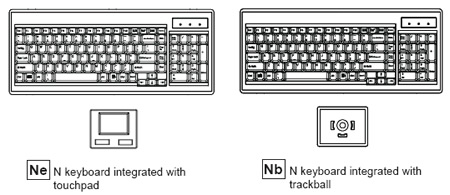

Keyboard Options

Raloy RN119 Features & Benefits:

  • 1U rackmount drawer with 19 inch SAMSUNG LCD
  • Full range KVM options
  • Combo interface PS/2 or USB input
  • Keyboard available in 13 international languages
  • 104 key notepad keyboard with full numerical pad
  • Mini trackball or touchpad mouse options
  • Locking slide rails positions
  • Two point lock system with latching front panel
  • Multi-lingual on screen display menu
  • AV / DVI-D / Audio options
  • DC power options
  • Quick and easy installation
  • Mounting Depth Minimum: 17.5" - Maximum: 30.5"
  • 24 Month Limited Warranty - Extended Warranties available for purchase

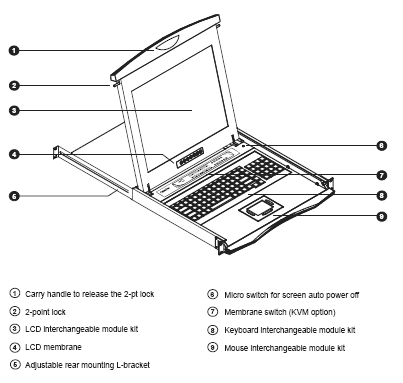

Structural Diagram

Optional Integrated KVM Switches:

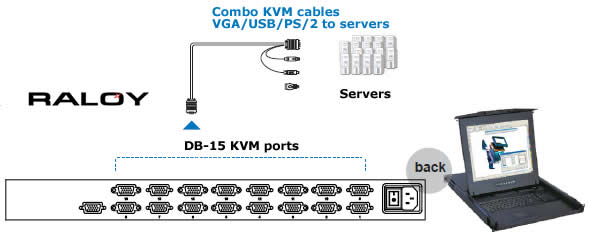

Rear connections for a Raloy Rack Mount LCD Monitor with an integrated 16-port combo KVM Switch
Raloy Rackmount Drawer with Integrated 8 or 16-port DB-15 KVM Switch
Includes 8 combo 4-in-1 KVM cables (RCE-6) for 8-port model and 16 for 16-port model.
Additional cables sold separately.

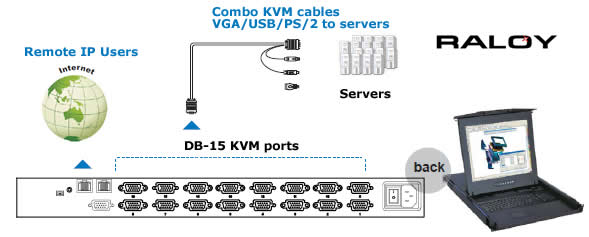

Rear connections for a Raloy Rack Mount LCD Monitor with an integrated 16-port IP KVM Switch
Raloy Rackmount Drawer with Integrated 8 or 16-port KVM over IP Switch
Includes 8 combo 4-in-1 KVM cables (RCE-6) for 8-port model and 16 for 16-port model.
Additional cables sold separately.

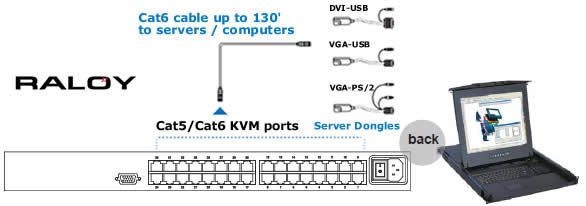

Rear connections for a Raloy Rack Mount LCD Monitor with an integrated 32-port CAT5/6 KVM Switch
Raloy Rackmount Drawer with Integrated 8, 16, or 32-port CAT6 / CAT5 KVM Switch
Includes 8 USB dongles (RDG-100S) for 8 and 16-port models and 16 for 32-port model.
CAT6 cable and additional dongles sold separately.

RN119 Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Package Dimensions6.6 x 23.2 x 33.7 in.
(168 x 589 x 856 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight37 lbs. (17 kg.)
Gross Weight51 lbs. (23 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 65°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 40 Watt, Standby 5 Watt
LCD Display
LCD ManufacturerSamsung
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)300
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)376 x 301
Tr Response Time (ms)1.3
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution640 x 350, 70Hz
720 x 400, 70Hz
640 x 480, 60 / 72 / 75Hz
800 x 600, 60 / 70 / 72 / 75Hz
1024 x 768, 60 / 70 / 72/ 75Hz
1152 x 864, 60 / 70 /75Hz
1280 x 1024, 60 / 70 /75Hz
Plug & Play DDCEDID 1.3
Console Port (Combo)3-in-1 DB-15 connector for VGA / keyboard /mouse
Support USB & PS/2 servers
CompatibilityMulti-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
Regulation ApprovalFCC, CE



Question: can you please send me final price for RN119-S801 ( include 8 port KVM & KVM Cable ) Qty 2
Answer: Thank you for your inquiry. For price quotes, please contact your KVM Switches Online representative at 1-877-586-6654.
