Raloy 1U 19" Widescreen LCD Monitor Keyboard Drawer w/ Touchpad

RW119-N-101

$854.00

Discontinued
Replaced by: Raloy RWX119
Alternative options: Contact Us

The Raloy RW119-N-101 rack console features a 19" Widescreen LCD. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse and includes one 6ft combo 4-in-1 KVM cable designed specifically for the Raloy Widescreen Series (Product ID: RCE-6). This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

NOTE: This model of rack console requires universal tapped (square hole) rails. If you have a legacy server rack environment, with round holes in the mounting rails of the rack, please consider the second generation RWX119.

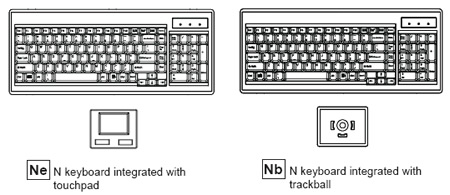

The following keyboard options are available for you to choose from (make sure to select one from the drop down menu above):

Raloy RW119-N-101 Features & Benefits:

  • 1U rack console with 19" widescreen Active Matrix TFT LCD panel
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Keyboard available in 13 International languages with either touchpad or trackball
  • Enhanced aesthetics with new molded front panel and two point lock
  • UL Approved
  • Multi-user Matrix KVM with either 16 or 32 ports in 1U
  • Cost efficient Combo KVM integration
  • 19" widescreen LCD with high resolution 1440 x 900
  • Mix PS/2, USB & SUN with Multi-Platform switch capability

RW119-N-101 Diagram

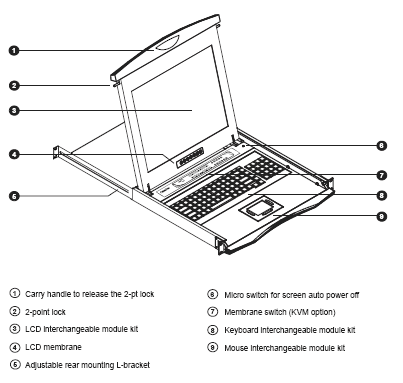

Structural Diagram

Optional Integrated KVM Switches:

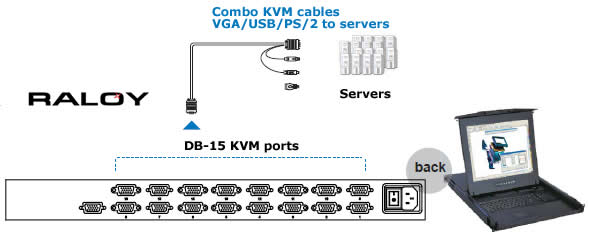

Rear connections for a Raloy Rack Mount LCD Monitor with an integrated 16-port combo KVM Switch
Raloy Rackmount Drawer with Integrated 8 or 16-port DB-15 KVM Switch
Includes 8 combo 4-in-1 KVM cables (RCE-6) for 8-port model and 16 for 16-port model.
Additional cables sold separately.

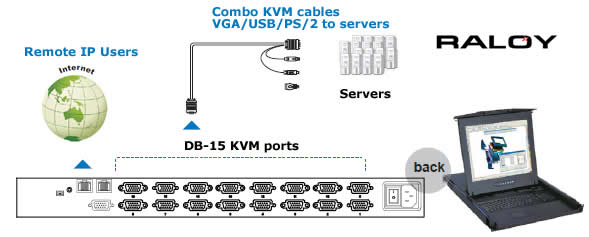

Rear connections for a Raloy Rack Mount LCD Monitor with an integrated 16-port IP KVM Switch
Raloy Rackmount Drawer with Integrated 8 or 16-port KVM over IP Switch
Includes 8 combo 4-in-1 KVM cables (RCE-6) for 8-port model and 16 for 16-port model.
Additional cables sold separately.

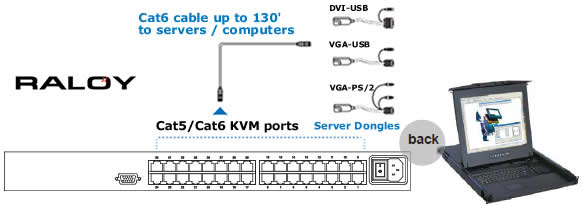

Rear connections for a Raloy Rack Mount LCD Monitor with an integrated 32-port CAT5/6 KVM Switch
Raloy Rackmount Drawer with Integrated 8, 16, or 32-port CAT6 / CAT5 KVM Switch
Includes 8 USB dongles (RDG-100S) for 8 and 16-port models and 16 for 32-port model.
CAT6 cable and additional dongles sold separately.

RW119-N-101 Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth23.6 in. (600 mm.)
Package Dimensions23.2 x 33.9 x 5.5 in.
(590 x 860 x 140 mm.)
Mounting Depth24 in. (min) to 32.5 in. (max)
(609.9 to 825.5 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight25 lbs. (11.5 kg.)
Gross Weight44 lbs. (20 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 65°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1440 x 900
Brightness (cd/m_)300
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)408 x 255
Tr Response Time (ms)1.3
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution720 x 400, 70Hz
640 x 480, 60 / 72 / 75Hz
800 x 600, 60 / 70 / 72 / 75Hz
1024 x 768, 60 / 70 / 72/ 75Hz
1152 x 864, 60 / 70 /75Hz
1280 x 720, 60 / 70 / 75 Hz
1280 x 1024, 60 / 70 / 75Hz
1440 x 900, 60 Hz
Plug & Play DDCEDID 1.3
Console Port (Combo)DB-15 connector for
VGA keyboard/mouse
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalFCC, CE, UL
Question: will this unit pull out past the rack so i can open and then tuck back inside rack when not used. thansk
Answer: Yes it will. The RW119 will pull out beyond the rack far enough to angle the LCD for proper viewing. Once finished, you can close the lid and slide the drawer back in place so the server rack door can be fully closed.

Question: is this available with a touchscreen?
Answer: Unfortunately it is not. They do not have a drawer style monitor with a touch screen. We would need to look at a rack mount panel display for touchscreen functionality: https://www.kvm-switches-online.com/rackmount-lcd-monitors.html

Question: do you make a kvm switch for a 2 post rack or is there some kind of adapter
Answer: Unfortunately, there really is not a rack mount drawer designed for a two post relay style rack.

A great solution, that many people go with, is the simple AnyServer Bracket that allows for rack mounting into a 2 post solution: http://www.server-rack-online.com/12751-719.html.

Question: Will the RW119-11 downscale a 1920x1080 input resolution?
Answer: Thank for your inquiry. No, this monitor does not support downscaling of input resolutions. Forcing a monitor to use a higher resolution than supported can introduce one or more issues including a blank screen, distorted images, or partial display. You will always have the best image quality using the monitor's native resolution.

Question: Use the non intergrated KVM unit but with a DVI option is it possible use both the special VGA input to a KVM and use DVI input? I want to select the video input using the OSD. Basically I have a VGA switch but I also have a video server that I want to connect with DVI.
Answer: Thank you for your inquiry. Please give us a call toll free at 1-877-586-6654 to discuss your project in greater detail.

Question: Does the 8 port KVM come with all 8 VGA/USB cables?
Answer: Thank you for your inquiry. Yes, the 8-port DB-15 Combo KVM (RW119-S801) will come with eight 4-in-1 KVM cables, Part Number: RCE-6 (USB or PS/2 + VGA).

Question: Is this product compatible with Macintosh (OS X 10.8) systems?
Answer: Thank you for your inquiry. According to the manufacturer, this unit should be compatible with OS X 10.8 systems.

You may also be interested in the RF117HDM, which has a Mac style keyboard and HD display. https://www.kvm-switches-online.com/rf117hd-mac.html

Question: What is the minimum mounting depth? I have a 19" wide rack mount application that has a fixed depth of ~ 20 to 21inches. Will this unit mount within these dim's?
Answer: Thank you for your inquiry. Unfortunately the minimum mounting depth for this unit is 24". FYI: The Maximum is 32.5".

We do carry the New High-Definition Raloy RF117HD which has a shorter-depth design of 18.9". https://www.kvm-switches-online.com/rf117hd.html. For other options, please give us a call at 1-877-586-6654.

Question: What is the standard warranty?
Answer: Thank you for your inquiry. The standard limited warranty is for 2 years.

Question: Is the integrated Cat5/Cat6 16 Port KVM switch a 1 user or 2 KVM switch.
Answer: Thank you for your inquiry,

The 16 port Cat5/6 KVM Switches offered on the RW119 page is a 1 local user KVM switch. For a full list of integrated Cat5/6 KVM options, please refer to this nifty table on our sister site.

Also please note that there is a newer version of the RW119 - the second generation Raloy RWX119.
