Raloy 1U 19" Widescreen LCD Keyboard Drawer w/ 3-Console 16-Port KVM Switch

RW119-M1603

$3,196.00

Discontinued
Recommended replacement: Raloy RWX119
Alternative options: Contact Us

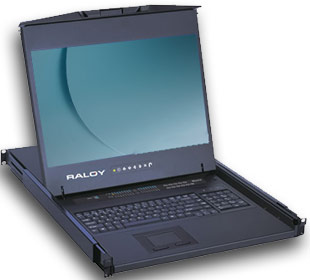

The Raloy RW119-M1603 rack console features a 19" Widescreen LCD and an integrated 16 port Matrix Multi-User DB-15 KVM switch allowing up to 3 simultaneous users. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 16 combo 4-in-1 KVM cables designed specifically for the Raloy KVM switches (Product ID: RCE-6). This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.

The following keyboard options are available for you to choose from (make sure to select one from the drop down above):

Keyboard with Touchpad MouseKeyboard with Trackball Mouse
E Option: Keyboard with
Touchpad Mouse
B Option: Keyboard with
Trackball Mouse

Raloy RW119-M1603 Features & Benefits:

  • Widescreen 19" Industrial TFT LCD panel, high resolution 1440 x 900
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Keyboard available in 13 International languages with either touchpad or trackball
  • Enhanced aesthetics with new molded front panel and two point lock
  • Mix Legacy PS/2 servers with newer USB and SUN solutions
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Advanced user profiles and configurable OSD hot key combinations
  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB and SUN with Multi-Platform switch capability
  • Extended CAT6 cord remote access over 300M
  • Provide a diversity of consoles to access servers independently and simultaneously
  • Warranty- 24 months Parts & Labor

NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

W Series Rackmount LCD Diagram
Raloy RW119-M1603 Rackmount LCD Diagram


Raloy RW119-M1603 KVM Switch Back View

Raloy RW119-M1603 Specifications:

Product Dimensions
Product (W x D x H)
17.4 x 23.6 x 1.73 in. / 442 x 600 x 44 mm.
Packing (W x D x H)
22.9 x 29.7 x 6.8 in. / 581 x 755 x 172 mm.
Net Weight
53 lb. / 24 kg.
Gross Weight
72 lb. / 33kg.
LCD Monitor
Diagonal Size
Wide 19" TFT
Max. Resolution
1440 x 900
Brightness
1440 x 900
Color Support
16.7M
Contrast Ratio (typical)
1000:1
Viewing Angle (H x V)
160° x 160°
Display Area
16.6 x 10 in. (408 x 255mm.)
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
VGA Signal Input
Analog RGB, 0.7Vp-p
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
KVM Switch
Simultaneous Users
1 x local, 2 x CAT5/6 remote
KVM Port
16 x DB-15 connectors for VGA/keyboard/mouse Supports USB servers and USB Basic DB-15 KVM switches
Connectivity
DVI-D / VGA connector dongle up to 40 meters (132 feet) CAT6 / CAT5 cable
Local Console
Monitor port: 1 x HDDB15-pin VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse
CAT 5/6 Remote Console
Monitor port: DB-15-pin VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse; Remote i/o: RJ45 via CAT5 / CAT5e / CAT6 cable up to 1,000 feet
Expansion
Up to 128 servers by 8-level cascade
Compatibility
Multi-platform: Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
Module Options
Keyboard
104 key notepad keyboard with full numerical pad and multiple keyboard language options. PS/2 or USB support
Mouse
2 button Glidepoint™ touchpad or trackball with PS/2 or USB support
LCD
BNC + S-Video, DVI-D, DC power, and audio options
Power
Input
100~240VAC, 50 / 60 Hz 0.5A via AC / DC cord
Option DC
12V/24V/48V DC input
Consumption
Max. 24 Watt, Standby 5 Watt
Regulatory Approval
FCC, CE
Environmental
Operation
32° - 122°F (0° - 50°C)
Storage
23° - 140°F (-5° - 60°C)
Relative Humidity
90%, non-condensing
Shock
50G peak acceleration (11ms, half-sine wave)
Vibration
58~100Hz / 0.98G (11ms / cycle)
Package Contains
1 x RW119-M1603 Rack Console, 16 x RCE-6 cables, 1 x User Manual, 4 x M3.2*4.5mm Screw, 8 M4*10mm Screw, 1 x Bracket, 1 x 12V Power adapter, 1 x Power cord 1 x Power Cord
Additional Receiver Contents
2 x Receiver, 2 x 12V Power adapter, 2 x RCE Combo 4-in-1
