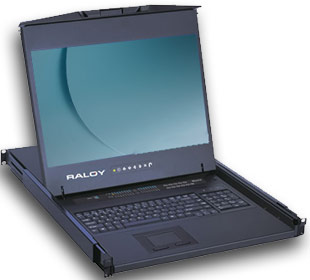

Raloy 1U 19" Widescreen LCD Keyboard Drawer w/ 2-User, 32-Port CAT5 IP KVM

RW119-UIP3202

$3,116.00

Discontinued
Recommended replacement: Raloy RWX119
Alternative options: Contact Us

The Raloy RW119-UIP3202 rack console features a 19" Widescreen LCD and an integrated CAT5 / CAT6 -32 port dual-user KVM Over IP Switch. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 16 USB Dongles designed specifically for the Raloy CAT6 KVM switches (Product ID: RDG-100S). CAT6 cable is not included. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.

The following keyboard options are available for you to choose from (make sure to select one from the drop down above):

Keyboard with Touchpad MouseKeyboard with Trackball Mouse
E Option: Keyboard with
Touchpad Mouse
B Option: Keyboard with
Trackball Mouse

Raloy RW119-UIP3202 Features & Benefits:

  • Widescreen 19" Industrial TFT LCD panel, high resolution 1440 x 900
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Keyboard available in 13 International languages with either touchpad or trackball
  • Enhanced aesthetics with new molded front panel and two point lock
  • Advanced user profiles and configurable OSD hot key combinations
  • Multi-lingual on screen display menu
  • Dual power with failover
  • UL Approval for LCD Console
  • Combo CAT6 KVM with 32 ports in 1U
  • Up to 40 meters between your servers & KVM ports
  • IP Remote access across the world wide web
  • Cascade switches up to 8 levels & mix switches between CAT6 & combo DB-15 KVM
  • Support DVI-USB, VGA-USB & VGA-PS/2 server interface
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Warranty- 24 months Parts & Labor

NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

W Series Rackmount LCD Diagram
Raloy RW119-UIP3202 Rackmount LCD Diagram


Raloy RW119-UIP3202 KVM Switch Back View

Raloy RW119-UIP3202 Specifications:

Product Dimensions
Product (W x D x H)
17.4 x 23.6 x 1.73 in. / 442 x 600 x 44 mm.
Packing (W x D x H)
22.9 x 29.7 x 6.8 in. / 581 x 755 x 172 mm.
Net Weight
53 lb. / 24 kg.
Gross Weight
72 lb. / 33kg.
LCD Monitor
Diagonal Size
Wide 19" TFT
Max. Resolution
1440 x 900
Brightness
1440 x 900
Color Support
16.7M
Contrast Ratio (typical)
1000:1
Viewing Angle (H x V)
160° x 160°
Display Area
16.6 x 10 in. (408 x 255mm.)
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
VGA Signal Input
Analog RGB, 0.7Vp-p
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
KVM Switch
Simultaneous Users
1 x local, 1 IP remote
KVM Port
32 x RJ45
Connectivity
DVI-D / VGA connector dongle up to 40 meters (132 feet) CAT6 / CAT5 cable
Local Console
Monitor port: 1 x HDDB15-pin VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse
IP Remote Console Connector: RJ45 Ethernet, User Management: 15-user login, 1x active user, Network portocol: DHCP / BOOTP / DNS, Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR, Resolution: Up to 1600 x 1200, Browser: IE, Firefox, Safari, Netscape Others: Serial port, virtual media via USB
Expansion
Up to 256 servers by 8-level cascade
Compatibility
Multi-platform: Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
Module Options
Keyboard
104 key notepad keyboard with full numerical pad and multiple keyboard language options. PS/2 or USB support
Mouse
2 button Glidepoint™ touchpad or trackball with PS/2 or USB support
LCD
BNC + S-Video, DVI-D, DC power, and audio options
Power
Input
100~240VAC, 50 / 60 Hz 0.5A via AC / DC cord
Option DC
12V/24V/48V DC input
Consumption
Max. 24 Watt, Standby 5 Watt
Regulatory Approval
FCC, CE
Environmental
Operation
32° - 122°F (0° - 50°C)
Storage
23° - 140°F (-5° - 60°C)
Relative Humidity
90%, non-condensing
Shock
50G peak acceleration (11ms, half-sine wave)
Vibration
58~100Hz / 0.98G (11ms / cycle)
Package Contains
1 X RW119-UIP3202 Rack Console, 16 x RDG-100S Dongles, 4 x M3.2*4.5mm screw, 8 x M4 x 10mm screw, 1 x bracket set, 1 x User Manual, 1 x Power Cord
