2U 19" Rack Mount Monitor Sun Keyboard Drawer w/ 16-Port KVM

S219-S1601

$1,627.00

Discontinued
Recommended replacement: Raloy RD119
Alternative options: Contact Us

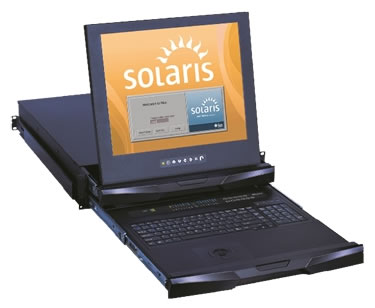

The Cyberview S219-S1601 is a 2U 19" LCD with 16-port Combo DB-15 KVM, "S" keyboard w/ SUN hot keys.  This rack mount monitor features a 2U design, adjustable brackets, built in LCD OSD to provide effective assistance for an administrator to control PC system.

Cyberview S219-S1601 Features:

  • 2U 19" TFT LCD screen
  • Allow viewing through closed glass cabinet door
  • The screen will sync with most SUN resolution, including 1152 x900 @ 66 or 76Hz
  • 1280 x 1024 native graphic resolution
  • Compatible with SUN, Apple, IBM, DELL, HP and USB server
  • 104-key SUN-compatible keyboard w/ 3 button trackball supports SUN keys, including Stop, Cut, Paste, Compose, etc.
  • Adjustable mounting brackets compatible with SUN rack depths of 24 to 36 inch
  • All mounting hardware included
  • Standard 16 PC ports USB KVM option
  • Support VGA resolution up to 1920 x 1440

Cyberview S219-S1601 Package Includes:

  • (16) 6ft USB KVM Cable
  • 12V 5A remote power adapter

Cyberview S219-S1601 Specifications:

Mechanical
Height 3.5 in. (8.8 cm.)
Width 17.4 in. (44.2 cm.)
Depth 23.6 in. (60 cm.)
Weight 42 lbs. (19 kg.)
Package Dimensions
Height 8.7 in. (22 cm.)
Width 23.6 in. (60 cm.)
Depth 29.9 in. (76 cm.)
Weight 55 lbs. (25 kg.)
Environmental
Operation Temperature 0 to 50 Degree Celsius
Storage Temperature -5 to 65 Degree Celsius
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
Power 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A)
Rear I/O Connector 16 KVM ports, HD15 female
Cascade port, HD15 female
DC power input, Plug-round type
General
Form Factor 2U rack mounting, separate slide-out screen & keyboard
Color Purple on LCD panel, light gray on keyboard drawer
Compatibility Compatible with SUNs, IBMs, HPs, DELLs and Mix PCs with USB-enable
Support Platform Solaris, MS Windows 2000/XP, Linux and SCO Unix
Server-side Interface HD15 VGA, USB Type A for KB/MS
Rack Mounting Adjustable ranges from 15.3" to 33.2" (390 to 845mm)
LCD Screen
Manufacturer/Type Samsung/ grade A industrial TFT LCD Panel
Origin South Korea
Display Size 19" inch diagonal
Resolution 1152x900 with 66 / 76Hz
1,280 x 1,024 with 60 / 70 / 75Hz
Display color 16.2 M
Brightness 300cd/m2
Contrast Ratio  700:1
Response Time TR=1.7/ Tf=6.3 ms
Pixel Pitch 0.294 (H) x 0.964 (V) mm
Viewing Angle 75/ 75/ 75/ 60 (L/R/U/D)
Signal Input VGA, Analog RGB
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V Position,
Auto-tune, Recall & Language
LCD MTBF 50,000 hrs
Input Device
Keyboard 104-key USB keyboard with built-in SUN keys
[Including stop, cut, paste, compose, copy and help]
Mouse 3-button trackball mouse
Integrated USB KVM
KVM Port  16-port, HD15 female
KB/MS Emulation USB 1.1 Compliant, support hot-plugging
Port Access Channel button or hot keys selectable
Indicators Online (green) and selected (red) status LED
Server-side Interface VGA HD15, analog RGB, USB type A, support hot-plugging
Compatibility Compatible with SUN, IBMs, HP, DELL and
mix PCs with USB-enable
Support Platform Solaris, MS Windows 2000/XP and SCO Unix
Cascade Expansion Up to 128 ports/servers
KVM Cable "CB" series USB KVM cable with 6, 10, 15 feet option
Cascade Cable "CBC" series cascade cable to USB KVM switch
Standards
EMC Approved FCC, CE and VCCI
