4K HDMI 4X4 Matrix Switch

SM-4X4-4K-LC

$335.00$308.05
Save $26.95
FREE Shipping on orders over $100

The 4K HDMI Matrix Switch routes 4Kx2K video and digital audio from four HDMI sources to four Ultra-HD displays. The switch can be controlled via the front panel buttons, IR remote control or RS232 commands.

  • Display the same or different output on up to four displays.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, and HDTV resolutions to 1080p.
  • Plug and play functionality - no new software or drivers required.
  • Eliminates the need to disconnect and then reconnect numerous HDMI sources.
  • HDMI features
    • 24/36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
    • 3D
    • Bandwidth up to 300 MHz (9 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • Ideal solution for connecting numerous HD media devices such as video game consoles, media PCs, set top boxes, DVRs, DVD players etc.
  • HDCP compliant.
  • EDID management

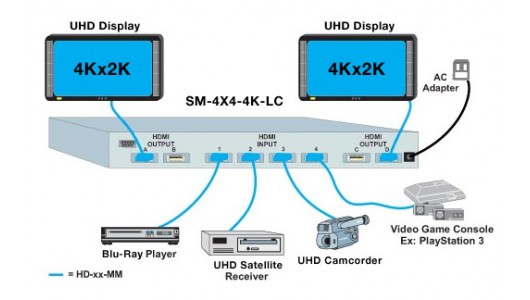

SM-4X4-4K-LC Use Diagram

Video
Input: 4 female HDMI Type A connectors
Output: 4 female HDMI Type A connectors
Input/Output Resolution:
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, and HDTV resolutions to 1080p
Control Methods
Front panel buttons with LED indication of port selection.
Bi-directional IR remote control for easy port selection.
Via female DB9 RS232 serial port using HyperTerminal. Requires straight-through wired RS-232 cable.
Power
100 to 240 VAC at 50 or 60 Hz via AC adapter. 12V 2A Output
Dimensions
WxDxH (in): 10.9x6.14x1.1 (277x156x28 mm)
Package Includes
HDMI Matrix Switch.
IR remote control/receiver.
AC power adapter.
User Manual
