NTI HDMI Extender via Two CAT5e/6 up to 300 feet
ST-C5HD-300-LC
The NTI XTENDEX ST-C5HD-300-LC HDMI/DVI Extender transmits digital video and audio signals up to 300 feet using two CAT5e/6 cables. The NTI ST-C5HD-300-LC video extender consists of a local unit that connects to an HDMI/DVI source and a remote unit that connects to an HDMI/DVI display.
NTI XTENDEX ST-C5HD-300-LC Features and Benefits:
- Transmits an HDMI signal over two CAT5e/6 cables.
- Supports HDTV resolutions to 1080i and computer resolutions to 1920x1080.
- HDCP compliant.
- Compliant with DDWG DVI standard
- HDMI features supported:
- 12-bit Deep Color
- x.v.Color
- Supports digital audio format, such as LPCM / Dolby Digital (AC-3) / DSD
- Bandwidth up to 225 MHz (6.75 Gbps)
- Lip Sync
- Supports the DDC2B protocol.
- Only one power supply is necessary to power both the local and remote units.

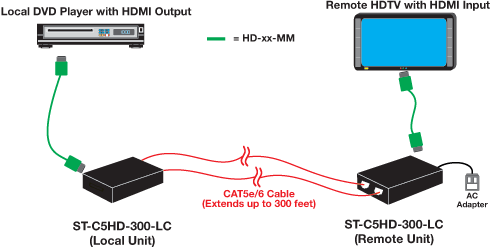

NTI HDMI Extender via Two CAT5e/6 Diagram
(ST-C5HD-300-LC depicted here)
NTI XTENDEX ST-C5HD-300-LC Package Contents:
- NTI XTENDEX ST-C5HD-300-LC Local Unit
- NTI XTENDEX ST-C5HD-300-LC Remote Unit
- 120 or 240VAC at 50/60Hz-5VDC/2.0A AC Adapter
- CD containing PDF of user manual
NTI XTENDEX ST-C5HD-300-LC Specifications:
| Mechanical | |
| Width | 1.8 in. |
| Height | 0.9 in. |
| Depth | 3.3 in. |
| Power | |
| AC Adapter | 100 to 240 VAC @ 50/60Hz |
| Power Consumption | Local Unit: powered by remote unit; Remote Unit: 5W |
| Environmental | |
| Operating Temperature | 5 to 130°F (-15 to 55°C) |
| Storage Temperature | -20 to 140°F (-30 to 60°C) |
| Relative Humidity | 5 to 90% non-condensing RH |
| Remote Unit | |
| Connectors | 2 x HDMI for display; 1 x RJ45 port for receiving video/audio signals; 1 x RJ45 port for receiving DDC signal |
| Resolutions | HDTV: Up to 1080i; Computer: Up to 1920 x 1080 |
| Local Unit | |
| Compatibility | Computer or HDTV with HDMI output |
| Connectors | 1 x HDMI (not compatible with nVidia Quadro FX); 1 x RJ45 port for audio/video signals; 1 x RJ45 port for sending DDC signal |
| Regulatory Approvals | CE, FCC, RoHS |
Question: What is the max distance for good resalition like 1920 X 1080
Answer: Thank you for your inquiry. Maximum distance for video extension depends on a number of factors including the type of cable being run, following cabling best practices and any type of potential electrical interference.
With that being said, the manufacturer states a maximum distance of 100 feet at 1920 x 1200 using CAT5, CAT5e, CAT6 (UTP), and CAT6 (STP).
Additional resolution/distance combinations, using CAT6 (STP), include: 200 feet for 1280 x 1024 and 300 ft for 1024 x 768.
Question: What is the tip size on the power supply? I need to replace the power supply, it is rated at only one amp. The extender requires a 2 amp Supply.
Answer: Thank you for your inquiry,
The package should ship with a 5VDC @ 2.0A power connector, if you have received the wrong power supply, please contact our sales support.
The tip of the barrel power connector is 2.1 mm x 5.5 mm (female). Please refer to the diagram below:
