NTI HDMI Extender via One CAT5e/6: Extend up to 150 feet
ST-C6HD-150-LC
Save $7.24
The NTI ST-C6HD-150-LC Low-Cost HDMI Extender transmits digital video and audio signals up to 150 feet using one CAT5e/6 cable. Each ST-C6HD-150-LC video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.
NTI ST-C6HD-150-LC Features and Benefits:
- Transmits an HDMI signal over one CAT5e/6/7 cable.
- Full IR control of HDMI source from remote HDTV using existing source remote control.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Available with optional stereo audio.
- HDMI features supported: -12-bit Deep Color
- x.v.Color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 225 MHz (6.75 Gbps)
- Support for CEC (consumer electronic control) compatible devices.
- Lip Sync
- HDCP compliant.
- Supports the DDC2B protocol.

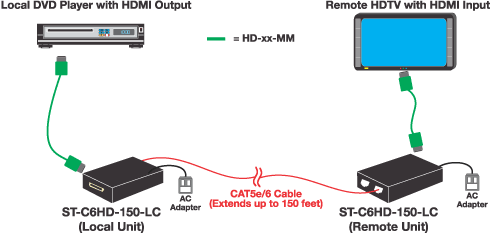

NTI HDMI Extender via One CAT5e/6 Diagram
(ST-C6HD-150-LC depicted here)
NTI ST-C6HD-150-LC Specifications:
| Mechanical | |
| Width | 1.89 in. |
| Height | 0.98 in. |
| Depth | 3.27 in. |
| Environmental | |
| Operating/Storage Temperature | 23 to 95°F (-5 to 35°C) |
| Operating Humidity | 5 to 90% non-condensing RH |
| Power Consumption | 110V-220VAC @ 50/60Hz via AC adapter; 5W |
| Local Unit | |
| Connectors | 1 x HDMI; 1 x RJ45 port |
| Compatibility | Computer or HDTV source with HDMI output |
| Remote Unit | |
| Connectors | 1 x HDMI (not recommended with DVI monitors); |
| Resolution | HDTV 1080p; Computer 1920 x 1200 |
| Regulatory Approvals | CE, FCC, RoHS |
Question: I am trying to send a PC's video (VGA or DVI) over a single CAT5 about 80 feet. Can I use a DVI to HDMI adapter on the PC end to send the video over the CAT5 to a TV with HDMI input? I do not care about audio. Thanks! Tony Rucker
Answer: Thank you for your inquiry. The manufacturer has confirmed this unit can be used with a DVI-D to HDMI adapter (https://www.kvm-switches-online.com/hdmim-dvidf.html). Please note however, the signal that goes to the sender needs to be a digital video signal. The adapter will not convert an analog signal to digital for use with the HDMI connection.
Question: Is there a warrantee on these I purchased 4 sets in January and one is bad
Answer: Thank you for your inquiry,
Im am sorry to hear that. Absolutely, there is a 2 year limited manufacturer warranty for the ST-C6HD-150-LC extenders. You can get your replacement initiated by contacting your KVM Switches Online representative at info@kvm-switches-online.com, at 1-877-586-6654, or via our Live Chat.
Question: Can I plug the CAT6 ends into an unmanaged switch?
Answer: Thank you for your inquiry,
You cannot transmit the NTI ST-C6HD-150-LC HDMI video signal over an unmanaged switch (supports IP traffic only); However, you can do so with the new NTI ST-IPHD-LC HDMI Over IP CATx extender.
*Note: An unmanaged switch cannot guarantee full bandwidth to the extender - For mission critical or multi-point configurations you would need a managed switch.
If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online Sales representative directly.
